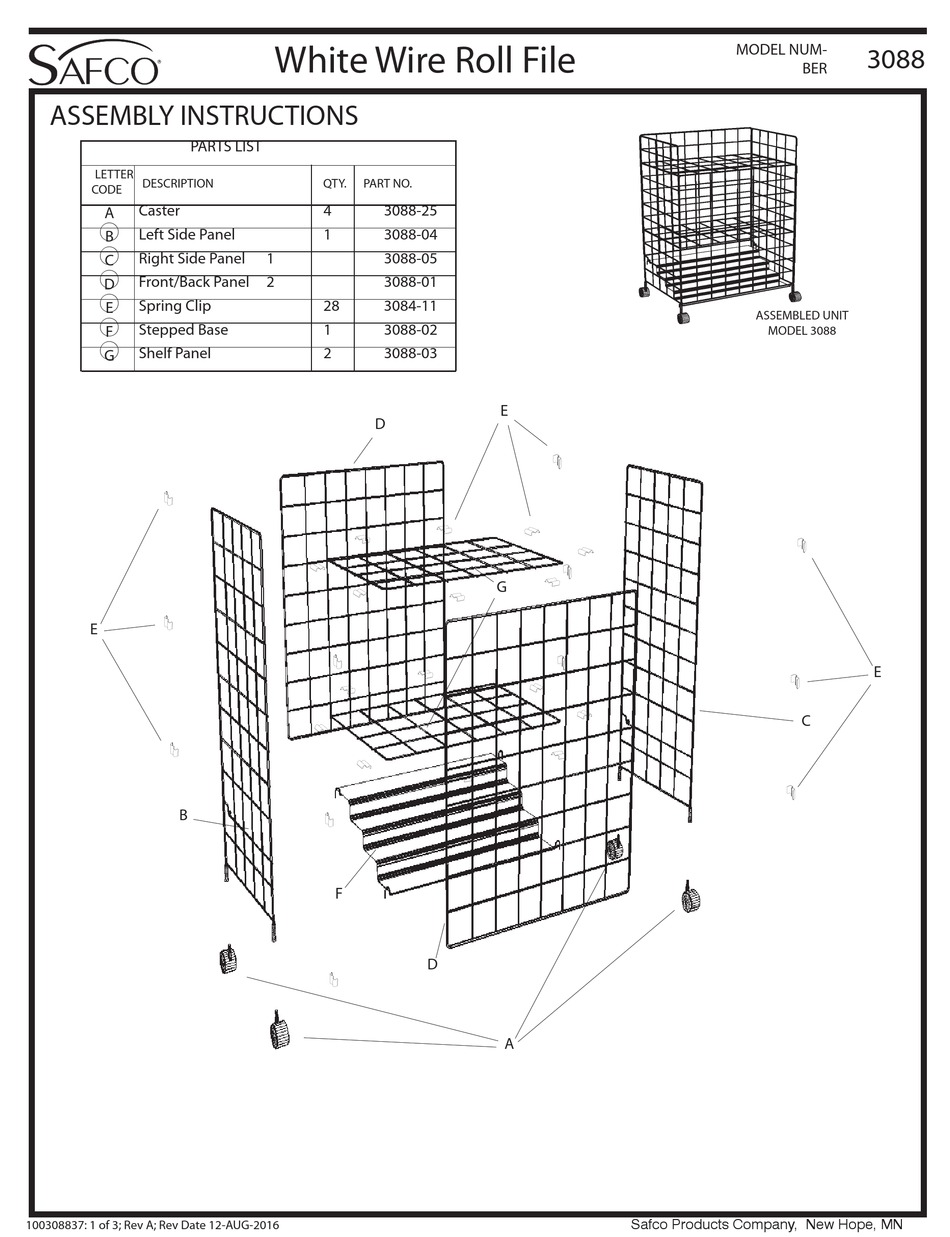

ASSEMBLY INSTRUCTIONS
PARTS LIST
LETTER
DESCRIPTION
CODE
Caster
A
Left Side Panel
B
Right Side Panel
C
Front/Back Panel
D
Spring Clip
E
Stepped Base
F
Shelf Panel
G
E
B
100308837: 1 of 3; Rev A; Rev Date 12-AUG-2016
White Wire Roll File
QTY.
PART NO.
4
3088-25
1
3088-04
1
3088-05
2
3088-01
28
3084-11
1
3088-02
2
3088-03
D
F
D
E
G
A
Safco Products Company, New Hope, MN
MODEL NUM-
3088
BER

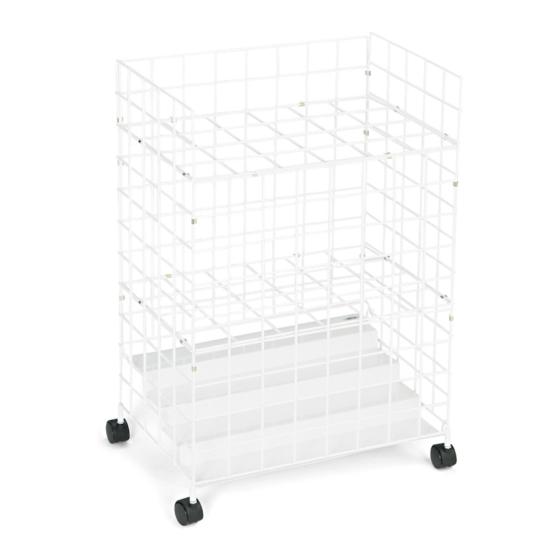

ASSEMBLED UNIT
MODEL 3088
E
C
