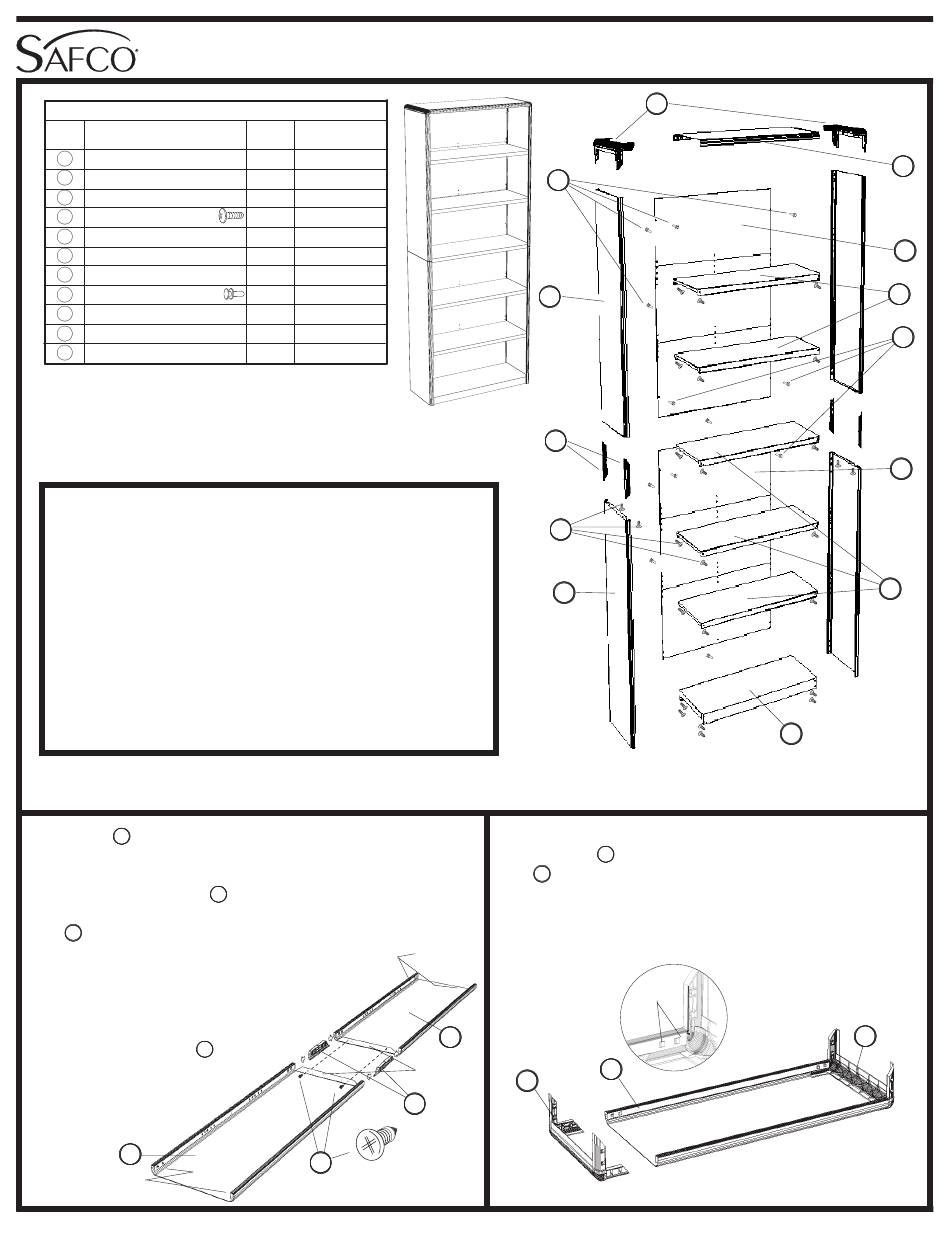

Safco Value Mate 7174 Assembly Instructions

6-Shelf Value Mate
PARTS LIST
LETTER
DESCRIPTION
CODE
Lower Side Panel
A
Side Connector
B
Upper Side Panel
C
Sheet Metal Screw
D
Corner Connector
E
Top Shelf
F
Upper Back Panel (Fiber)
G
Plastic Push Fastener
H
Lower Back Panel (Fiber)
I
Bottom Shelf (Thick)
J
Middle Shelf (Thin)
K
TOOLS REQUIRED: Phillips Screwdriver,
Small Hammer or Mallet
NOTE: When corresponding about parts,
be sure to specify color (Black, Gray, Sand,
Medium Oak or Walnut)
Thank you for purchasing this Safco Product.
We hope that you will enjoy using it.
SHOULD YOU NEED ASSISTANCE WITH YOUR PRODUCT,
PLEASE DO NOT RETURN YOUR
PRODUCT TO THE STORE!
For all questions, concerns or assistance, please call
Safco Consumer Hot Line
1-800-664-0042
available Monday-Friday 8:00 AM to 4:30 PM (Central Time)
(English-speaking operators)
CAUTION: Steel edges may be SHARP; use care during assembly.
1
Lay a A Lower Side Panel out flat (it has two
ROUND holes on the ends of the rolled corners, at
the opposite end from the flange). At the FLANGED
end, gently insert a B Side Connector into each of
the rolled corners until it snaps into place. Line up a
C Upper Side Panel (with two SQUARE holes in each
corner opposite the flanged end) with the
FLANGED end toward the connectors,
and gently push it into place. Now,
from the lower panel side, screw
the flanges of the panels
together with two D
Sheet Metal Screws.
Build a second
side panel assembly
in the same way.
A
ROUND
HOLES
7174-37: 1 of 4; Rev. 5; 07/00
QTY. PART NO.
2 7173-01
4 7131-06
2 7174-05
32 9226
2 7111-07
1 7110-02
1 7174-04
12 7170-11
1 7171-04
1 7170-02
5 7170-03
ASSEMBLED
Model 7174
(Once assembled, edges are hidden.)
SQUARE
HOLES
FLANGES
B
D
Safco Products Company, New Hope, MN 55428
Bookcase
®
H
C
B
UNIT
D
A
2
Insert a E Corner Connector into each end of the
F Top Shelf. Carefully line up the prongs on the
connector with the openings on the shelf ends, and
gently push in until the connector snaps into place.
C
F
E
MODEL
NUMBER
Registered U.S. Patent 5,944,439
E
J
SNAPS
7174
F
G
K
H
I
K
E
