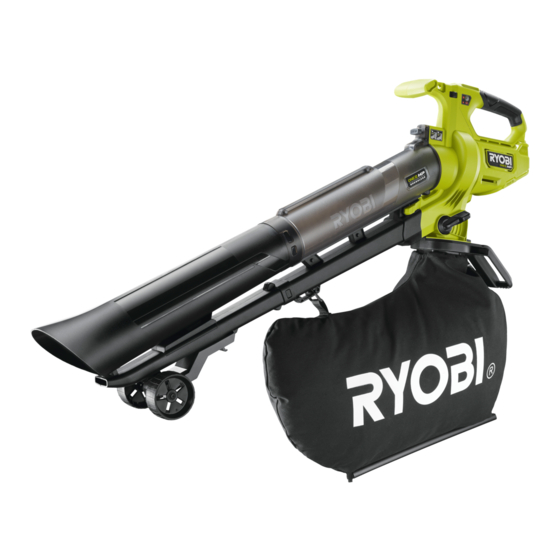

Ryobi R18XBLV20 Manual
  1. Manuals
  2. Brands
  3. Ryobi Manuals
  4. Blower
  5. R18XBLV20
  6. Manual

Ryobi R18XBLV20 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

FRONT PAGE
R18XBLV20
R18XBLV26

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R18XBLV20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ryobi R18XBLV20

Summary of Contents for Ryobi R18XBLV20

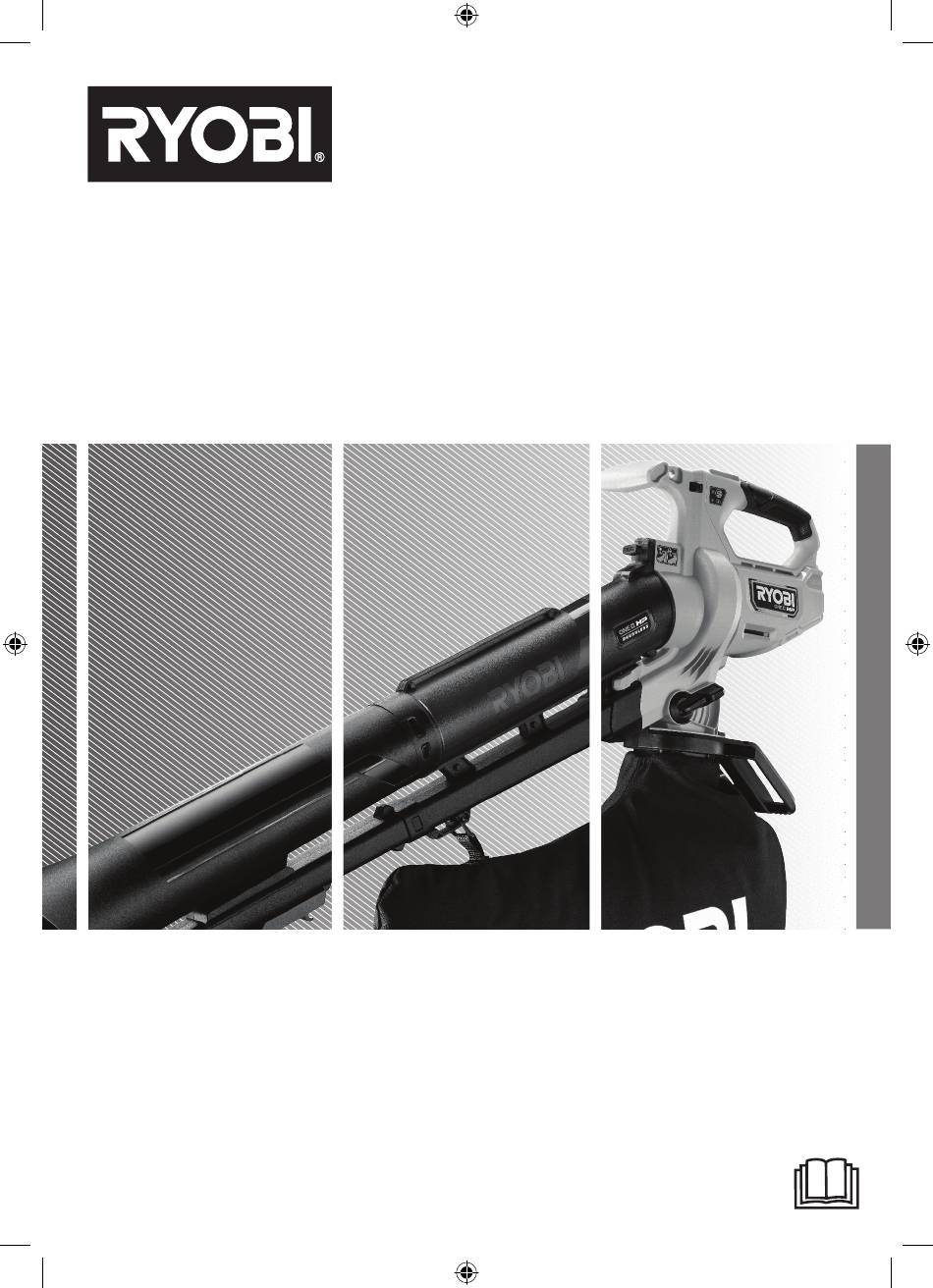

  • Page 1 FRONT PAGE R18XBLV20 R18XBLV26...

  • Page 2: Intended Use

    PREPARATION IMPORTANT! ■ Some regions have regulations that restrict It is essential that you read the instructions the use of the product to some operations. in this manual before assembling, operating, Check with your local authority for advice. and maintaining the product. ■...

  • Page 3: Operation

    BATTERY TOOL USE AND CARE ■ Keep your face and body away from the feed intake opening. ■ Recharge only with the charger specified by the manufacturer. A charger that is suitable ■ Operate the product only at reasonable for one type of battery pack may create a hours—not early in the morning or late at risk of fire when used with another battery night when people might be disturbed.

  • Page 4: Blower Safety Warnings

    ■ Immediately turn off the product and remove ■ Hold the motor higher than the inlet end of the battery pack in the event of accident the vacuum tube. or breakdown. Do not operate the product ■ To avoid serious injury to the operator or again until it has been fully checked by an damage to the product, do not try to vacuum authorised service centre.

  • Page 5: Transporting Lithium Batteries

    and de-icing salts. Do not store the product ■ Remove the blower/vacuum tubes to inspect outdoors. for blockage. Clear the tubes if required. ■ For transportation in a vehicle, secure the ■ Remove the debris collector bag. Check product against movement or falling to that the bag adaptor is free from obstruction.

  • Page 6: Symbols In This Manual

    Remove battery pack before starting any work on the product. Pull: Quick-release tab Regulatory Compliance Mark (RCM). The product meets applicable regulatory requirements. Blower mode Vacuum mode Speed up Speed down, on/off Waste electrical products should not be disposed of with household waste.
  • Page 7 R18XBLV20 Lower vacuum tube Upper vacuum tube Locking pin Front handle Harness Rotary locking button Red LED Speed up Speed down On/off button Rear handle Blower/vacuum tube button Blower/vacuum mode selection lever Bag adaptor Vacuum bag Operator's manual Sleeve Upper blower tube...
  • Page 8 Wear full eye and ear protection, Slide the guide wheel onto the lower Attach the lower vacuum tube into the substantial footwear, and long trousers blower tube. lower blower tube until it is secured. at all times while operating the product. NOTE: Use the tab on the rear side to Do not operate the product when slide the guide wheels up or down and...
  • Page 9 Insert the lower vacuum tube into the Connect the blower/vacuum tube to the housing opening, ensuring that the fin upper vacuum tube until it clicks into is inserted into the housing slot, then push the blower/vacuum tube until it locks place.
  • Page 10 p.11 p.12 Using the blower Using the vacuum Emptying the Cleaning the Storing the product p.13 p.14 p.16 vacuum bag product...
  • Page 11 USING THE BLOWER 1. Insert the battery pack into the product until the latch clicks into place. Make sure that the battery pack is securely attached before using the product. 2. Hold the product with two hands by the designated handles at all times. 3.
  • Page 12 USING THE VACUUM 1. Insert the battery pack into the product until the latch clicks into place. Make sure that the battery pack is securely attached before using the product. 2. Hold the product with two hands by the designated handles at all times. 3.
  • Page 13 EMPTYING THE VACUUM BAG 1. Press the latches on each side and pull out the battery pack. 2. Unhook the vacuum bag from the lower blower tube. At the rear side of the vacuum bag opening, unlatch the locking tab from the bag adaptor and then remove the vacuum bag.
  • Page 14 CLEANING THE PRODUCT 1. Press the latches on each side and pull out the battery pack. 2. Unhook the vacuum bag from the lower blower tube. At the rear side of the vacuum bag opening, unlatch the locking tab from the bag adaptor and then remove the vacuum bag.
  • Page 15 WARNING: Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Maintenance...
  • Page 16 STORING THE PRODUCT 1. Press the latches on each side and pull out the battery pack. 2. Unhook the vacuum bag from the lower blower tube. At the rear side of the vacuum bag opening, unlatch the locking tab from the bag adaptor and then remove the vacuum bag.

  • Page 17: Product Specifications

    PRODUCT SPECIFICATIONS Cordless blower/vacuum Model R18XBLV20 Rated voltage 18 V d.c. Air Velocity Blower 252 km/h Vacuum 126 km/h Air Volume Blower 110 m Vacuum 460 m Mulching ratio 10:1 Weight (without battery) Blower/vacuum mode 3.95 kg Vibration level (in accordance with EN 50636-2-100 Annex BB) Total value ah 1.6 m/s...
  • Page 20 Techtronic Industries Australia Pty Ltd 31 Gilby Road, Mount Waverley, VIC 3149 Melbourne, Australia Techtronic Industries N.Z. Limited Unit C, 70 Business Parade South, Highbrook, Auckland 2013, New Zealand RYOBI is a trade mark of Ryobi Limited, and is used under license. 960394022-02...
