Summary of Contents for Ryobi OBV1800

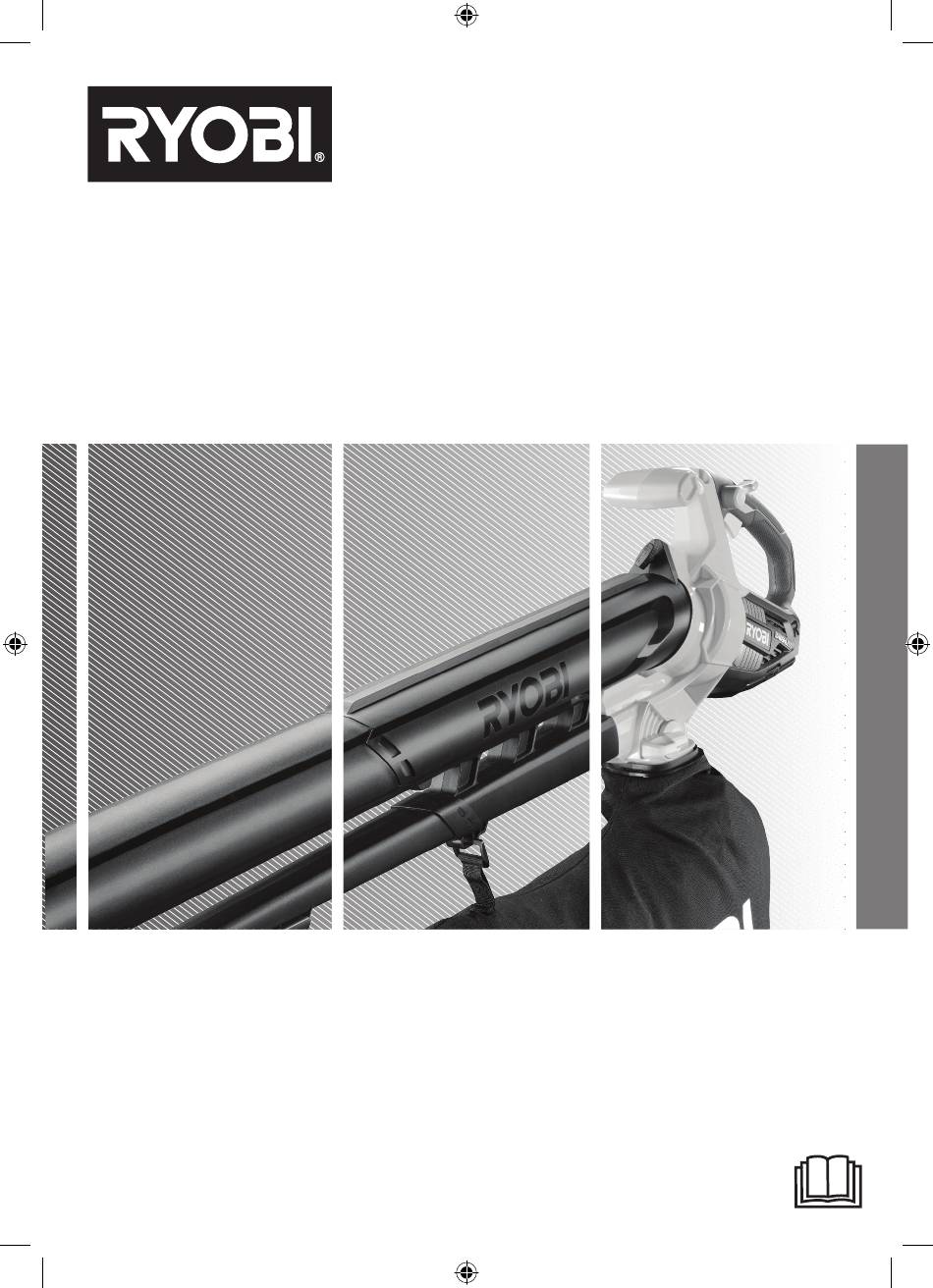

  • Page 1 FRONT PAGE OBV1800 R18BLV14...
  • Page 2: Intended Use

    PREPARATION IMPORTANT! ■ Some regions have regulations that restrict It is essential that you read the instructions the use of the product to some operations. in this manual before assembling, operating, Check with your local authority for advice. and maintaining the product. ■...
  • Page 3: Operation

    BATTERY TOOL USE AND CARE ■ Keep your face and body away from the feed intake opening. ■ Recharge only with the charger specified by the manufacturer. A charger that is suitable ■ Operate the product only at reasonable for one type of battery pack may create a hours—not early in the morning or late at risk of fire when used with another battery night when people might be disturbed.
  • Page 4: Blower Safety Warnings

    ● before leaving the product unattended debris could cause serious injury. Make sure that the vacuum bag is in good condition ● before clearing blockages and completely closed before operating the ● before checking, cleaning, or working on product. the product ■...
  • Page 5: Transportation And Storage

    ■ Bring the product to an authorised service TRANSPORTATION AND STORAGE centre to replace damaged or unreadable ■ Turn off the product, remove the battery labels. pack, and allow both to cool down before CLEARING A BLOCKAGE storing or transporting. To reduce the risk of injury associated ■...
  • Page 6: Symbols In This Manual

    Wear eye protection. Wear appropriate respiratory mask. Do not expose the product to rain or damp conditions. Remove the battery pack before starting any work on the product. Guaranteed sound power level Waste electrical products should not be disposed of with household waste.
  • Page 7 OBV1800 Lower vacuum tube Locking pin Upper vacuum tube Lock thread Quick release handle Shoulder pad Front handle Turbo button On/off trigger Cruise control lever Handle Blower/vacuum mode selection lever Vacuum bag Upper blower tube Lower blower tube Guide wheels...
  • Page 8 Wear full eye and ear protection, Slide the guide wheel onto the lower blower tube. appropriate respiratory mask, NOTE: Use the tab on the rear side to slide the guide wheels up or down and substantial footwear, and long trousers adjust its position.
  • Page 9 Attach the lower vacuum tube into the lower blower tube until it is secured. Line up the lower vacuum tube and upper vacuum tube. Once the vacuum tubes are aligned, insert the lower blower tube to the upper blower tube, and push these together until they click into place.
  • Page 10 Insert the battery pack into the product Switch the cruise control lever up or down to decrease or increase the blower until the latch clicks into place. speed. Squeeze the on/off trigger to power on the product. Getting started...
  • Page 11 p.12 p.13 Using the blower Using the vacuum Emptying the Cleaning the p.14 p.15 Storing the product p.16 vacuum bag product...
  • Page 12 USING THE BLOWER 1. Insert the battery pack into the product until the latch clicks into place. Make sure that the battery pack is securely attached before using the product. WARNING: Hold the product with two hands by the designated handles at all times. 2.
  • Page 13 USING THE VACUUM 1. Insert the battery pack into the product until the latch clicks into place. Make sure that the battery pack is securely attached before using the product. WARNING: Hold the product with two hands by the designated handles at all times. 2.
  • Page 14 EMPTYING THE VACUUM BAG 1. Press the latches on each side and pull out the battery pack. 2. Unhook the vacuum bag from the lower blower tube. At the rear side of the vacuum bag opening, unlatch the locking tab from the bag adaptor and then remove the vacuum bag.
  • Page 15 CLEANING THE PRODUCT 1. Press the latches on each side and pull out the battery pack. 2. Clean the product using a brush. WARNING: Do not use water to clean the product. Maintenance...
  • Page 16 STORING THE PRODUCT 1. Press the latches on each side and pull out the battery pack. 2. Unhook the vacuum bag from the lower blower tube. At the rear side of the vacuum bag opening, unlatch the locking tab from the bag adaptor and then remove the vacuum bag.
  • Page 17 TECHTRONIC product for REPLACEMENT PART which dust is a byproduct or using a TECHTRONIC dust extractor that is selected by the customer. Vacuum bag RBVB1 NOTE: Visit your local special orders desk or contact RYOBI customer service for replacement parts.
  • Page 20 Techtronic Industries Australia Pty Ltd 31 Gilby Road, Mount Waverley, VIC 3149 Melbourne, Australia Techtronic Industries N.Z. Limited Unit C, 70 Business Parade South, Highbrook, Auckland 2013, New Zealand RYOBI is a trade mark of Ryobi Limited, and is used under license. 961087670-01...
