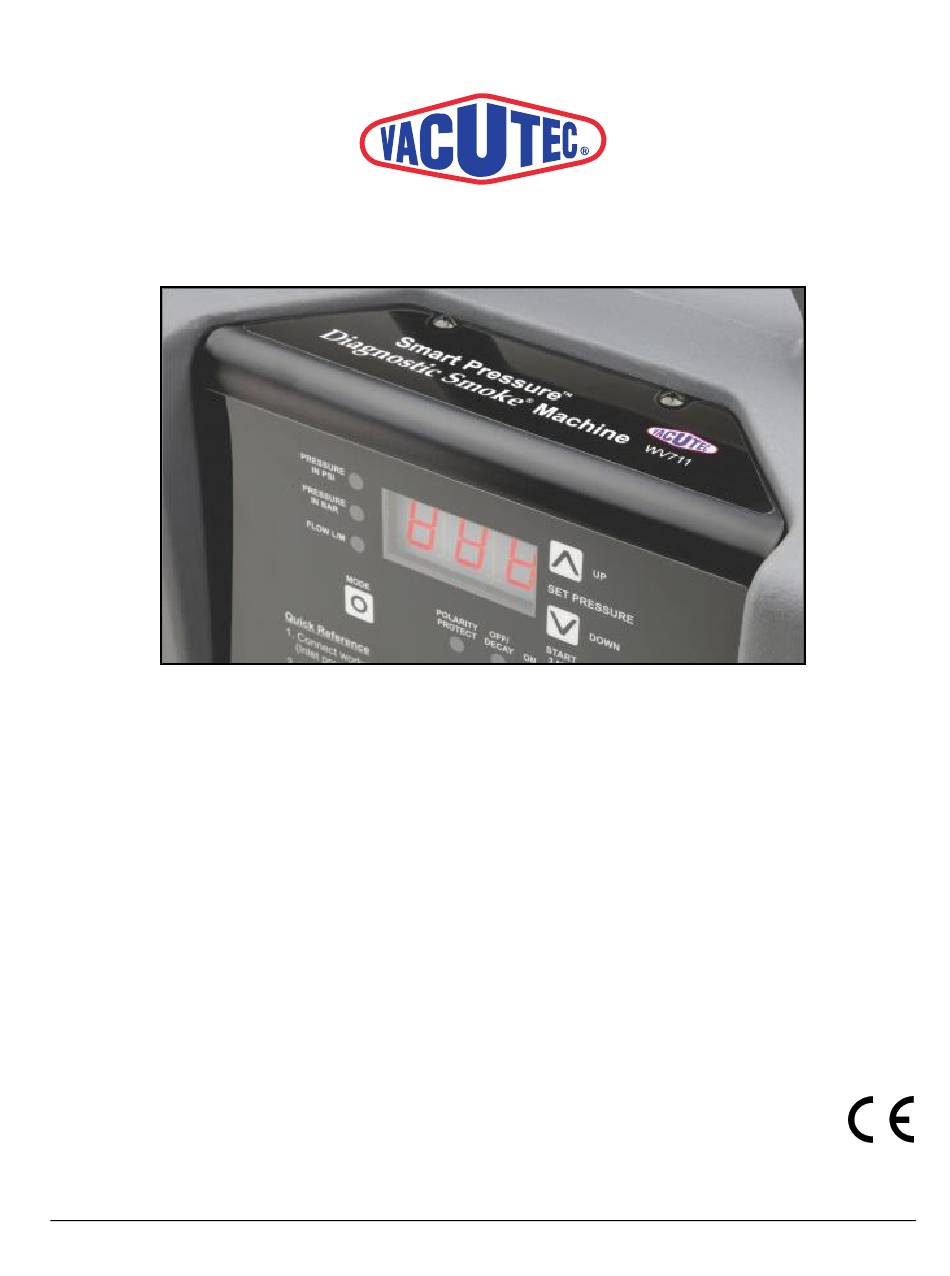

INSTRUCTION MANUAL
Smart Pressure®
Variable Pressure Diagnostic Smoke
Machine
®
with UltraTraceUV® Non-Contaminant Dye Solution
Model No. WV711
Leak Detection Systems for the Professional Technician
USA | Canada | Euro | Patents: 6,392,227 • 6,439,031 • 6,526,808 | 2,279,147 • 2,394,911 | 1,384,984 | Other Patents Pending
Advertisement
Table of Contents
Related Manuals for VACUTEC Smart Pressure Diagnostic Smoke WV711
Summary of Contents for VACUTEC Smart Pressure Diagnostic Smoke WV711
- Page 1 INSTRUCTION MANUAL Smart Pressure® Variable Pressure Diagnostic Smoke Machine ® with UltraTraceUV® Non-Contaminant Dye Solution Model No. WV711 Leak Detection Systems for the Professional Technician USA | Canada | Euro | Patents: 6,392,227 • 6,439,031 • 6,526,808 | 2,279,147 • 2,394,911 | 1,384,984 | Other Patents Pending...
-
Page 3: Specifications
Caution and Usage Tips DO NOT use this Tester in the fuel evaporative (EVAP) system, due to its high pressure capabilities. DO NOT connect the Tester in such a way where its high pressure will be introduced into the engine’s crank case system, or oil seals may be damaged ... -
Page 4: Table Of Contents
Contents Caution & Usage Tips Specifications Included Accessories Optional Accessories Product Overview Initial Setup Quick Start Guide Basic Test Procedure Leak Samples LED Display Codes Programming Remote Control Fob Programming PSI or BAR Pressure Setting Warranty Thank You and Congratulations! Your Smart Pressure® leak detector, which incorporates STAR Diagnostic Smoke®... -
Page 5: Included Accessories
Included Accessories UltraTraceUV®: (WV0712UV) this patented solution is the only Automaker-Mandated smoke-producing solution in the world. The solution’s chemistry will not damage vehicle components and contains a special contaminant-free dye that deposits at the exact location of a leak. Each bottle will perform approximately 150 test cycles. (12 oz. / 355 ml). -
Page 6: Optional Accessories
Optional Accessories Turbo Adapter Set, with through hole: (WVA-091): sizes 35mm to 105mm, in 5mm increments. Adapter plug: (WVA-095): used to convert a WVA-091 through hole adapter into a plug. It is included in the WVA-091 set. VW Turbo Adapter: (WVA-092) Power Converter (WVA-080) connects to smoke tester and grounded wall power outlet, to avoid using the vehicle battery as a power source. -
Page 7: Product Overview
Product Overview Smoke Solution Dipstick Scratch-Resistant Housing Air/Gas Inlet Control Panel (See panel on next page) Power Cables Basic Instructions Remote Control Fob (Red button controls ON/OFF. Gray button control MODE) Power Plug Filter Drain Port Smoke Supply Hose Underside of Tester Water Separator / Filter (inside tester) with filter drain port on underside of Tester;... - Page 8 Product Overview, continued Control Panel Overview A. Test Mode Lights: indicate if Tester is set to measure pressure in PSI, pressure in bar, or flow in liters per minute, all of which are controlled by MODE Button (B) and displayed in the Digital Display (F). B.
-
Page 9: Initial Setup
Initial Setup Prior to Using for the First Time Pour entire contents of two 12 oz. UltraTrace ® solution bottles into the smoke chamber. NOTE: Check solution level regularly and maintain at or near FULL mark. Full If not supplied; install correct air/gas fitting onto the Tester. -
Page 10: Quick Start Guide
Quick Start Guide Connect Tester to either compressed air or any inert gas, such as nitrogen. NOTE: When using inert gas; you must regulate the pressure exiting the gas tank, prior to connecting to the WV711 Tester! Compressed air or nitrogen tank pressure to the Tester can be between 50-175 PSI (3.4 to 12 bar). -
Page 11: Basic Test Procedure
Basic Smart Pressure® Tester Procedure 1. Connect compressed air or any inert gas to Tester. (Inlet pressure to Tester can be between 50-175 PSIG (3.5-12 bar) NOTE: Step 1 must occur prior to connecting the Tester to power, or its screen will show an error code “n0A”... -
Page 12: Leak Samples
Leak Sample Three Ways to See the Leak White light highlights Laser light is reflected UV light sees the dye trace the smoke by the smoke vapor... -
Page 13: Led Display Codes
LED Display Codes The LED display is capable of showing the following codes. Indicates ‘Program Version’ or Revision; which will displayed next t.x.x Program Version (“x.x” indicates turbo program version number) Calibrate Key Fob End of function Program Lo bAt Low Battery or Bad Battery Connection (shown in two consecutive displays) Open Circuit (ground or power) There is pressure in the system to be tested;... -
Page 14: Programming Remote Control Fob
Programing Remote Control Fob Your remote control Fob has already been programmed at the factory. Follow this procedure if reprogramming becomes necessary, due to Fob replacement or after changing the Fob’s battery. 1. Disconnect Tester from power. 2. Connect Tester to workshop air. 3. -
Page 15: Warranty
(Opt. #2) Mon.-Fri. 8:00am to 3pm Pacific Time or Activate Your Warranty: To activate your warranty; send the information below to the email address or fax number provided within 30 days of your purchase. Send information below to: TechSupport@vacutec.com or Fax: 714-433-2840 Purchaser’s Name: Company Name: Address:...
