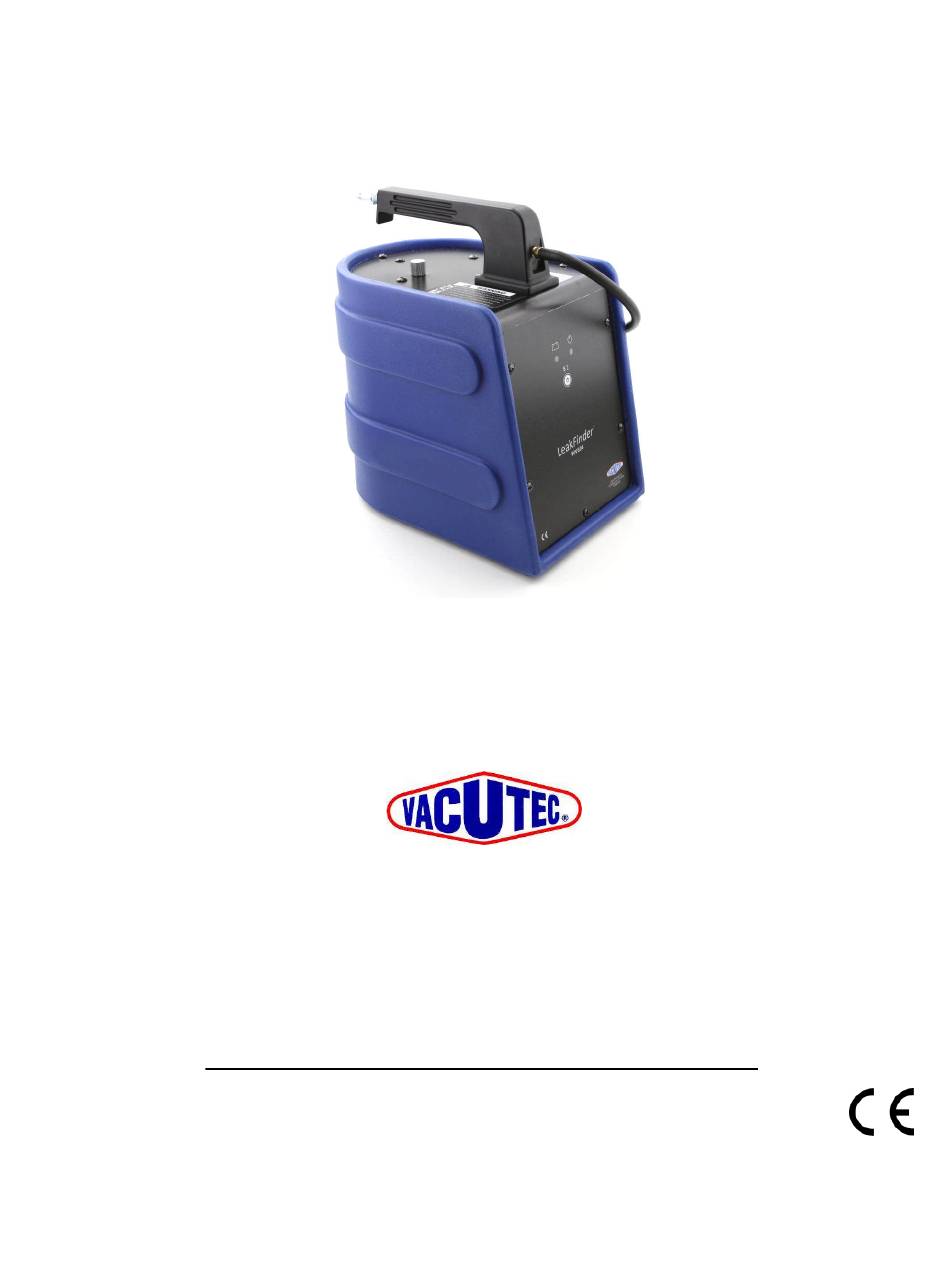

- Page 1 INSTRUCTION MANUAL Leakfinder ® Model No. WV604 Diagnostic Smoke Vapor Machine ® with UltraTraceUV®Dye Solution Leak Detection System for the Professional Technician...
- Page 2 Caution and Usage Tips ALWAYS use Tester with vehicle engine turned <OFF>. Use this equipment in the manner specified by the manufacturer. Follow common sense safety precautions. Connect Tester’s black cable to chassis ground. Use UltraTraceUV® Smoke Solution No. P0712UV in Tester. Using a non-approved ...
-
Page 3: Accessories Included
Accessories Included UltraTraceUV®: (P0712UV) this patented solution is the only Automaker-approved smoke-producing solution in the world. The solution’s chemistry is specially formulated to withstand vaporization temperatures, is designed not to damage vehicle components and contains a special dye that deposits at the exact location of a leak. Will not harm automotive systems and each bottle will perform approximately 300 tests. -
Page 4: Initial Setup
Initial Setup Full > Pour entire contents of one 12 oz. UltraTraceUV® solution bottle into the smoke chamber. NOTE: Use second bottle supplied to regularly maintain at or near FULL mark. > If not supplied; install correct air fitting onto the Leakfinder®. NOTE: Your Leakfinder®... - Page 5 Quick Start Guide Do One of the Following: Connect to workshop air for general purpose leak testing. Regulate nitrogen from 50 to 150 PSI (3.4 bar ~ 10.3 bar) Connect to Nitrogen, or other inert gas, when testing fuel evaporative (EVAP) system. Inert Gas Pack Optional accessory;...
- Page 6 > Connect red clip to 12V-DC power. > Green light will turn <ON>. > Connect black clip to chassis ground. > A blinking green light indicates a weak battery. > Use cone to access intake system and connect smoke supply hose to cone.
- Page 7 > Press START button. > Green and red lights are <ON>. > 5-minute timer. > Use white light to find the smoke. > Use UV light and yellow glasses to find the dye.
- Page 8 Other Leak Samples Your Leakfnder® can be used in virtually any vehicle low pressure system suspected of having a leak, such as; intake / induction, intercooler and turbocharger, vacuum, exhaust, EVAP and even wind/water leaks. Can also be used to verify air solenoid functions and test components prior to assembly. Exhaust Fluorescent Dye Deposit The UltraTraceUV®...
-
Page 9: Wind And Water Leaks
Wind and Water Leaks ’ ‘ ’ ’ ‘ ’ > > > No smoke distrurbance means ‘No Leak’ < Smoke distrubance pinpoints the leak... -
Page 10: Technical Specifications
Technical Specifications Height 13.5 in. (34 cm) Solution Max. Volume 12 oz. (355 ml) Length 13 in. (33 cm) Supply pressure 13.0 in. H O (0.032 bar) Width 9 in. (23 cm) Supply volume 10 liters per minute Weight 10 lb. (4.4 kg) Smoke supply line 8 feet (2.4m) Shipping weight... -
Page 11: Troubleshooting Guide
Troubleshooting Guide Two lights on the control panel double as diagnostic lights. Green Interval Cause Blinks: 1 per second Insufficient battery power Bad ground or power connection at smoke Blink simultaneously: 1 per second canister or short in circuit Bad ground at smoke canister or open Blink simultaneously: 4 times per second ...
