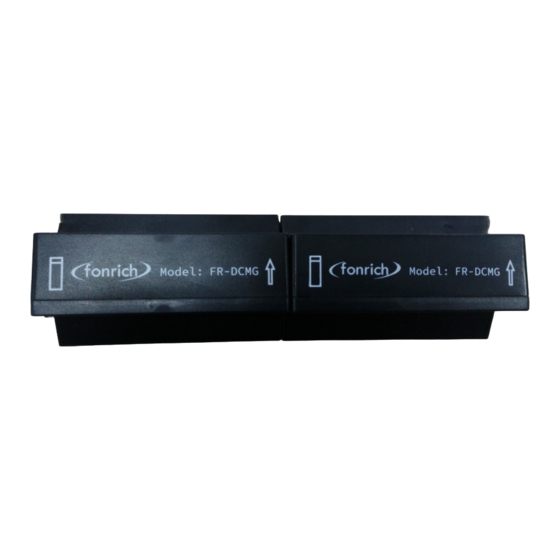

FR-DCMG DC System Monitor User Manual
Fonrich New Energy Technology Co., Ltd.
FR-DCMG DC System Monitor
User Manual (V2.0)
Fonrich (Shanghai) New Energy Technology Co.,Ltd
Address: 1st Floor, Building 5, No.999 Jiangyue Road, Minhang District,Shanghai
Zip Code: 201112
Web:
www.fonrich.com
Email: support@fonrich.com, sales@fonrich.com
Service Hotline: +86-21-60717303
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FR-DCMG Series and is the answer not in the manual?

Questions and answers

Related Manuals for Fonrich FR-DCMG Series

Summary of Contents for Fonrich FR-DCMG Series

  • Page 1 FR-DCMG DC System Monitor User Manual Fonrich New Energy Technology Co., Ltd. FR-DCMG DC System Monitor User Manual (V2.0) Fonrich (Shanghai) New Energy Technology Co.,Ltd Address: 1st Floor, Building 5, No.999 Jiangyue Road, Minhang District,Shanghai Zip Code: 201112 Web: www.fonrich.com Email: support@fonrich.com, sales@fonrich.com...

  • Page 2: Table Of Contents

    Table of contents Table of contents Ⅰ, Important Safety Instructions......................3 Ⅱ，Product Brief..........................4 Ⅲ Mechanical Dimensions & Structure....................5 FR-DCMG-MMPA /FR-DCMG-MMPB /FR-DCMG-MMPT Main Unit........5 FR-DCMG-HS4A /FR-DCMG-AS4A Hall Current Sensor............6 FR-DCMG-HS4T /FR-DCMG-AS4T Hall Current Sensor............6 FR-PVMA-LHSA Leakage Current Sensor..................7 FR-PVMG-SHTPA /FR-PVMG-SHTPT Shunt Trip Power Unit...........7 Ⅳ, Connection of Modules and Definition of the Terminals...............8 Connection of the hall sensor module....................8 FR-DCMG-MMPA /FR-DCMG-MMPB /FR-DCMG-MMPT Main Unit........8...

  • Page 3: Ⅰ, Important Safety Instructions

    Fonrich New Energy Technology Co., Ltd. Ⅰ, Important Safety Instructions Please read this user manual carefully before product installation. Fonrich reserves the right to refuse warranty claims for equipment damage if the user fails to install the equipment according to the instructions in this manual.

  • Page 4: Ⅱ，Product Brief

    Ⅱ， Product Brief FR-DCMG is mainly used in the PV combiner box in PV power plants, to monitor the working status of every PV string and send the status data to the monitor center of the PV power plant through field bus or industrial wireless. Also a new function is detect arc fault in PV string or DC bus-bar.

  • Page 5: Ⅲ Mechanical Dimensions & Structure

    FR-DCMG DC System Monitor User Manual Fonrich New Energy Technology Co., Ltd. Ⅲ Mechanical Dimensions & Structure FR-DCMG-MMPA /FR-DCMG-MMPB /FR-DCMG-MMPT Main Unit...

  • Page 6: Dcmg-Hs4A /Fr-Dcmg-As4A Hall Current Sensor

    FR-DCMG-HS4A /FR-DCMG-AS4A Hall Current Sensor FR-DCMG-HS4T /FR-DCMG-AS4T Hall Current Sensor...

  • Page 7: Pvma-Lhsa Leakage Current Sensor

    FR-DCMG DC System Monitor User Manual Fonrich New Energy Technology Co., Ltd. FR-PVMA-LHSA Leakage Current Sensor FR-PVMG-SHTPA /FR-PVMG-SHTPT Shunt Trip Power Unit...

  • Page 8: Ⅳ, Connection Of Modules And Definition Of The Terminals

    Ⅳ, Connection of Modules and Definition of the Terminals Connection of the hall sensor module FR-DCMG-HS4A, FR-DCMG-AS4A connect in the way of concatenation, support 4~24 channels current monitoring. Specific connection and instruction refer to the pictures below(take 8 channels as example, the nearest FMB wire is channel 1): FMB Bus Connector FR-DCMG-MMPA /FR-DCMG-MMPB /FR-DCMG-MMPT Main Unit...

  • Page 9: Pvma-Lhsa Leakage Current Sensor

    FR-DCMG DC System Monitor User Manual Fonrich New Energy Technology Co., Ltd. Symbol Definition of the symbol DC+、DC- PV DC bus power supply terminals No connection Field Ground terminal External temperature sensor terminal Temperature and digital input common terminal (Signal Ground) DI1、DI2...

  • Page 10: Pvmg-Shtpa /Fr-Pvmg-Shtpt Shunt Trip Power Unit

    FR-PVMG-SHTPA /FR-PVMG-SHTPT Shunt Trip Power Unit Symbol Definition of the symbol PV+、PV- PV DC bus power supply terminals No connection Field Ground terminal RA、RB Drive terminal from main unit L+,L- Drive Out terminal, wire to shunt trip coil, the level is 25VDC, max power is 80W in 10ms Earth connection The FG terminal of the FR-DCMG main unit and power unit must be connected to the...

  • Page 11: Ⅴ, Local Operation

    FR-DCMG DC System Monitor User Manual Fonrich New Energy Technology Co., Ltd. Ⅴ, Local Operation Instruction of buttons operation and display interface FR-DCMG has four key buttons:“ESC”、“-”、“+”、“SET”. The key “ESC” is used to return to the default interface or cancel the setting of parameters. The key “SET” is used to enter the parameter setting interface, chose the parameter that to be configured, or confirm the setting.

  • Page 12: Modbus Mode

    “*”: The selecting cursor that can be moved through pressing “+” and “-”keys. FWB NODE：Actually, it is a wireless client mode. FWB means Field Wireless Bus, which is robust filed wireless communication protocol designed by Fonrich. In this mode, the modbus interface is also active.

  • Page 13: Parameters Setting Interface

    FR-DCMG DC System Monitor User Manual Fonrich New Energy Technology Co., Ltd. default interface of MODBUS mode, it will be shown like below: The histogram shows the current value of every channel, the current value ranges from -2A to 10A. For the hall sensors are four channel sensors, so in the histogram every four channels will be indicated from another four channels which means that from left to right is channels 1-4, channels 5-8, channels 9-12 and so on.

  • Page 14: Digital Displaying Interface

    PARITY： The parity of MODBUS communication, the selectable parity none parity(NONE), odd parity(ODD), even parity(EVEN)(default none parity). ADDRESS： The address of the MODBUS slave device, ranges from 1 to 247(default 1). Digital displaying interface When the key “+” or “-” is pressed in the histogram interface, the digital display interface will come up to show the current values and generated energy values.

  • Page 15: Fwb Node Mode

    FR-DCMG DC System Monitor User Manual Fonrich New Energy Technology Co., Ltd. FWB NODE mode Select FWB NODE mode in the mode selecting interface, if the previous mode is not FWB NODE mode, the device will reboot after pressing the key “SET”, and the device will enter FWB NODE mode.

  • Page 16: Wireless Node Connecting Status Interface

    P/T will twinkle to indicate that the communication is normal. Wireless node connecting status interface The wireless node connecting status interface will come up after the interface of LOGO, wireless node connecting status interface is the default interface of FWB GATEWAY mode, it will be shown as below: The number 1 on the left side of the top line means the online number of wireless node, the address is composed by the numbers in the left column except the top “1”...

  • Page 17: Arc Fault Detect Alarm Function

    FR-DCMG DC System Monitor User Manual Fonrich New Energy Technology Co., Ltd. Among which: NODE QTY：the supported number of the wireless node by this gateway, default 30 ranges from 1 to 216. Generally, please keep this number as less as possible, because the communication cycle will become longer as this number growing.

  • Page 18: Shunt Tripping Setup Interface

    Then the picture will change to histogram picture. Shunt Tripping Setup Interface At default picture, press key “ESC” and “+”in same time, will change to “Shunt Tripping” set interface, shows as below: Among which: “TIME”: Set the shunt trip drive hold time, the shunt trip drive signal will be enable when alarm event occurs, and hold on set time, then disable shunt trip drive signal.

  • Page 19: Ⅵ, Definition Of The Modbus Protocol

    FR-DCMG DC System Monitor User Manual Fonrich New Energy Technology Co., Ltd. Ⅵ, Definition of the Modbus Protocol Configuration of the modbus Modbus communication mode：RTU mode Address of the slave device：range from 1 to 247 (default 1) Baud rate：(bps） 2400、4800、9600(default)、19200、38400 Parity of the byte：odd parity、even parity、none parity(default)

  • Page 20: Read And Write Operations Of The Registers In Word

    • Function code 05 used to write single bit-type registers • Function code 15 used to write multiple bit-type registers the content of the bit-type register could be switches alarm information etc. Read and write operations of the registers in word •...
  • Page 21 FR-DCMG DC System Monitor User Manual Fonrich New Energy Technology Co., Ltd. 0x0035 Channel 2 current too high alarm When current value bigger than the set value, set 1 0x0036 Channel 3 no current alarm When current value equal to 0, set 1...
  • Page 22 0x004E Channel 10 current too high alarm When current value bigger than the set value, set 1 0x004F reserved 0x0050 Channel 11 no current alarm When current value equal to 0, set 1 0x0051 Channel 11 current too low alarm When current value smaller than the set value but not equal to 0, set 1 0x0052...
  • Page 23 FR-DCMG DC System Monitor User Manual Fonrich New Energy Technology Co., Ltd. 0x006A Channel 19 current too low alarm When current value smaller than the set value but not equal to 0, set 1 0x006B Channel 19 current too high alarm...
  • Page 24 0x0087 Channel 8 current reversed alarm When current is reversed, set 1 0x0088 Channel 9 current reversed alarm When current is reversed, set 1 0x0089 Channel 10 current reversed alarm When current is reversed, set 1 0x008A Channel 11 current reversed alarm When current is reversed, set 1 0x008B Channel 12 current reversed alarm When current is reversed, set 1 0x008C...
  • Page 25 FR-DCMG DC System Monitor User Manual Fonrich New Energy Technology Co., Ltd. 0x00B1 Channel 18 under current alarm When, current < I(average)- I(min-threshold), set 1 0x00B2 Channel 19 under current alarm When, current < I(average)- I(min-threshold), set 1 0x00B3 Channel 20 under current alarm When, current <...

  • Page 26: Description Of The Registers In Word

    0x00E5 Channel 22 arc fault alarm When arc fault occurs in channel, set 1 0x00E6 Channel 23 arc fault alarm When arc fault occurs in channel, set 1 0x00E7 Channel 24 arc fault alarm When arc fault occurs in channel, set 1 0x00EE Bus-bar arc fault alarm When arc fault occurs in bus-bar, set 1...
  • Page 27 FR-DCMG DC System Monitor User Manual Fonrich New Energy Technology Co., Ltd. 0x000C Current of channel 2 Short Unit 1mA，symbol means direction R 0x000D Current of channel 3 Short Unit 1mA，symbol means direction R 0x000E Current of channel 4 Short Unit 1mA，symbol means direction R...
  • Page 28 0x0027 Power of channel 4 Unsigned Unit W short 0x0028 Power of channel 5 Unsigned Unit W short 0x0029 Power of channel 6 Unsigned Unit W short 0x002A Power of channel 7 Unsigned Unit W short 0x002B Power of channel 8 Unsigned Unit W short...
  • Page 29 FR-DCMG DC System Monitor User Manual Fonrich New Energy Technology Co., Ltd. short 0x003B Power of channel 24 Unsigned Unit W short 0x0040 Shunt trip enable Unsigned When shunt trip is enable, set 1 short Write 1 will enable shunt trip one...
  • Page 30 counter short 0x00A5 Channel 4 arc fault alarm Unsigned Record arc fault occurs in channel counter short 0x00A6 Channel 5 arc fault alarm Unsigned Record arc fault occurs in channel counter short 0x00A7 Channel 6 arc fault alarm Unsigned Record arc fault occurs in channel counter short 0x00A8...
  • Page 31 FR-DCMG DC System Monitor User Manual Fonrich New Energy Technology Co., Ltd. 0x00B8 Channel 23 arc fault alarm Unsigned Record arc fault occurs in channel counter short 0x00B9 Channel 24 arc fault alarm Unsigned Record arc fault occurs in channel...
  • Page 32 0xXX1B Current of channel 20 of the Short Unit mA，symbol means direction wireless node System information 0x00F7 The supported wireless Unsigned The support max number of node number by gateway short wireless node, only available in gateway mode. 0x00F8 The online number of the Unsigned The online wireless node number wireless node...
  • Page 33 FR-DCMG DC System Monitor User Manual Fonrich New Energy Technology Co., Ltd. ，current low，current high alarm bit12-bit14: channel 5，no current ，current low，current high alarm 0: normal，1: alarm 0xFF0F Current alarm2 Unsigned bit0-bit2: channel 6，no current ， short current low，current high alarm bit3-bit5:channel 7，no current ，...
  • Page 34 0: normal，1: alarm 0xFF12 Current alarm5 Unsigned bit0-bit2: channel 21，no current short ，current low，current high alarm bit3-bit5:channel 22，no current ， current low，current high alarm bit6-bit8 :channel 23，no current ，current low，current high alarm bit9-bit11: channel 24，no current ，current low，current high alarm 0: normal，1: alarm 0xFF13 Leakage current high alarm...
  • Page 35 FR-DCMG DC System Monitor User Manual Fonrich New Energy Technology Co., Ltd. channel1 0xFF96 The lower 16bit of the Unsigned Unit Wh generated energy of short channel1 0xFF97 The higher 16bit of the Unsigned Unit Wh generated energy of short...
  • Page 36 channel 7 0xFFA2 The lower 16bit of the Unsigned Unit Wh generated energy of short channel 7 0xFFA3 The higher 16bit of the Unsigned Unit Wh generated energy of short channel 8 0xFFA4 The lower 16bit of the Unsigned Unit Wh generated energy of short channel 8...
  • Page 37 FR-DCMG DC System Monitor User Manual Fonrich New Energy Technology Co., Ltd. generated energy of short channel 14 0xFFB0 The lower 16bit of the Unsigned Unit Wh generated energy of short channel 14 0xFFB1 The higher 16bit of the Unsigned...
  • Page 38 generated energy of short channel 20 0xFFBC The lower 16bit of the Unsigned Unit Wh generated energy of short channel 20 0xFFBD The higher 16bit of the Unsigned Unit Wh generated energy of short channel 21 0xFFBE The lower 16bit of the Unsigned Unit Wh generated energy of...

  • Page 39: Ⅴ, Appendix

    FR-DCMG DC System Monitor User Manual Fonrich New Energy Technology Co., Ltd. Ⅴ, Appendix Document revision history Modification Instruction Date Draft from the user manual of Gilgal1 2013-12-10 Modify some of the Modbus registers; 2014-03-25 modify the operation of interface...

This manual is also suitable for:
