Coating Thickness Gauges
DCF-3000EZ-E
DCFN-3000EZ-E
AND
Operating Instructions
Distributed by: ABQ Industrial LP USA
Tel: +1 (281) 516-9292 / (888) 275-5772 eFax: +1 (866) 234-0451
Web: https://www.abqindustrial.net E-mail: info@abqindustrial.net
Advertisement
Table of Contents
Related Manuals for ABQINDUSTRIAL DCF-3000EZ-E
Summary of Contents for ABQINDUSTRIAL DCF-3000EZ-E

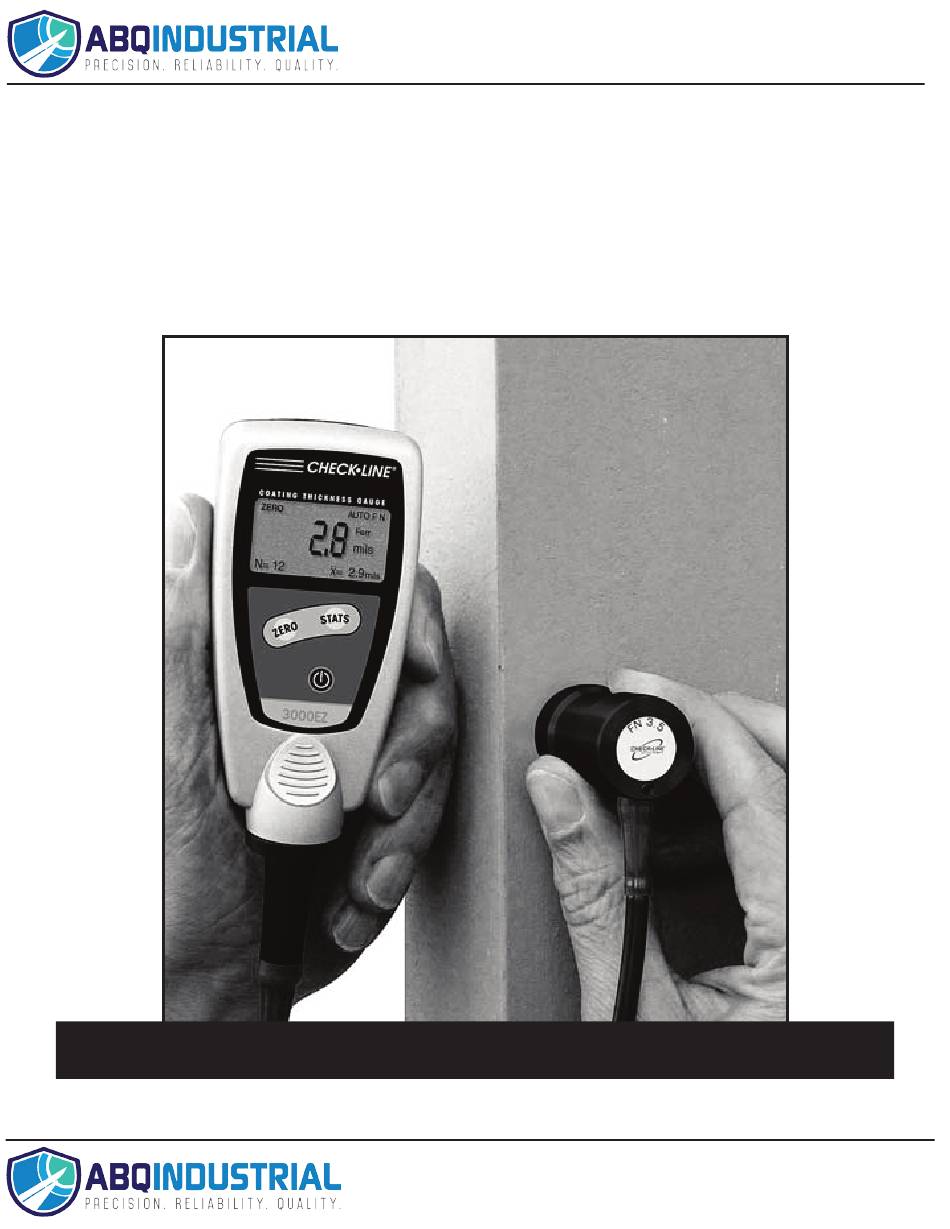

- Page 1 Distributed by: ABQ Industrial LP USA Tel: +1 (281) 516-9292 / (888) 275-5772 eFax: +1 (866) 234-0451 Web: https://www.abqindustrial.net E-mail: info@abqindustrial.net Coating Thickness Gauges DCF-3000EZ-E DCFN-3000EZ-E Operating Instructions Distributed by: ABQ Industrial LP USA Tel: +1 (281) 516-9292 / (888) 275-5772 eFax: +1 (866) 234-0451...
-
Page 2: Table Of Contents
ABLE OF ONTENTS Introduction ......... . 02 Overview . -
Page 3: Introduction
DCF-3000EZ-E = For measurement on steel / iron 1.0 I NTRODUCTION DCFN-3000EZ-E = For measurements on steel / iron and non-ferrous metals The Check•Line 3000EZ-E Series of coating thickness gauges provide • accurate, non-destructive measurement of: All non-magnetic coatings, such as varnish, paint, enamel, chromium, copper, zinc, etc. -
Page 4: Overview
2.0 O 2.1 Gauge VERVIEW LCD Display ZERO Key STATISTICS Key ON/OFF Switch PROBE Battery Compartment (On rear) -
Page 5: Display
2.2 Display Current measurement ZERO icon Low Battery Indicator Measurement mode Units of measure Statistical values 2.3 Complete Kit 3000EZ-E Series gauges are supplied as a complete kit, with gauge, plastic test shim, 2x AAA batteries, soft carrying pouch, manual and manu facturer’s calibration certificate. - Page 6 3.0 B On/Off Switch ASIC PERATIONS To turn the gauge on, press the ON/OFF Switch briefly (see photo on page 3). Press and hold the ON/OFF Switch for 2 seconds to turn the power off. Note: The gauge will power off automatically after 90 seconds of non-use.
-
Page 7: Total Reset To Factory Defaults
Total Reset to Factory Defaults Switch the gauge off. Press and hold the ZERO key. At the same time, turn on the power using the ON/OFF switch An acoustic signal will sound, all statistical values will be deleted and the factory settings µm, calibration, and AUTO FN (DCFN-3000EZ-E only) will be activated. -
Page 8: Taking Measurements Using Factory Calibration
1. Press the ON/OFF switch to turn 4.0 M EASURING SING ACTORY ALIBRATION the gauge on. 2. If the ZERO icon does not appear in the upper left corner of the display, the preset factory calibration is activated. If the ZERO icon does appear, it indicates that a Zero Procedure has been performed. -
Page 9: Checking Accuracy
To obtain more accurate measurements on strongly curved or rough parts, 5.0 P A ZERO P ERFORMING ROCEDURE you should carry out the ZERO Procedure on a similar curved reference piece without coating. 1. Press the ZERO key. ZERO flashes in the display. 2. - Page 10 Custom Calibration active Custom Calibration cleared...
-
Page 11: Online Statistics Display
Every time a measurement is take, a pair 6.0 O NLINE STATISTICS DISPLAY of statistical values appear in the lower part of the display, as shown at right. For example: n = 12 x = 2.8 mils (n = number of measurements ; x = average) Each time the STATS key is pressed, the number of measurements and a different statistical value will appear, allowing the user to... - Page 12 Clearing the statistical values To clear the statistical values, momentarily press and release the ON/OFF switch. A value of zero will be shown in the number or measurements field “n” confirming that the stored statistical values have been cleared.
-
Page 13: Specifications
Range 7.0 S PECIFICATIONS DCF, DCFN Ferrous: 0 - 140.00 mils (0 - 3500 µm) DCFN Only Non-Ferrous: 0 - 120.00 mils (0 - 3000 µm) Accuracy ±0.1 mils (±3µm) or ± 3% of reading whichever is greater Resolution Refer To Section 8.0 Display Back-lit, 4-digit alphanumeric Minimum... -
Page 14: Resolution Table
Mils 8.0 R ESOLUTION ABLE 0- 99.9 mils 0.1 mils 100.0 - 140.0 mils 0.2 mils Microns (µm) 0 - 999 µm 1 µm 1.000 - 2.498 mm 0.002 mm 2.500 - 3.500 mm 0.005 mm... -
Page 15: Measuring Limits
Minimum Radius for Convex Surfaces 0.2" (5mm) 9.0 M EASURING IMITS Minimum Radius for Concave Surfaces 2" (50mm) Minimum Headroom 4" (100mm) Minimum Sample Diameter 0.5" (13mm) Minimum Substrate Thickness - F 20 mils (0.5mm) Minimum Substrate Thickness - NFe 2 mils (50 mm) -
Page 16: Error Messages
For Technical Assistance contact: Electromatic Equipment Company Telephone: 1-800-645-4330 (USA & Canada) 1-516-295-4300 Fax: 1-516-295-4300 Email: info@checkline.com... -
Page 17: Warranty
Distributed by: ABQ Industrial LP USA Tel: +1 (281) 516-9292 / (888) 275-5772 eFax: +1 (866) 234-0451 Web: https://www.abqindustrial.net E-mail: info@abqindustrial.net 11.0 W ELECTROMATIC Equipment Co., Inc. (ELECTROMATIC) warrants to the original purchaser that this ARRANTY product is of merchantable quality and confirms in kind and quality with the descriptions and specifications thereof.
