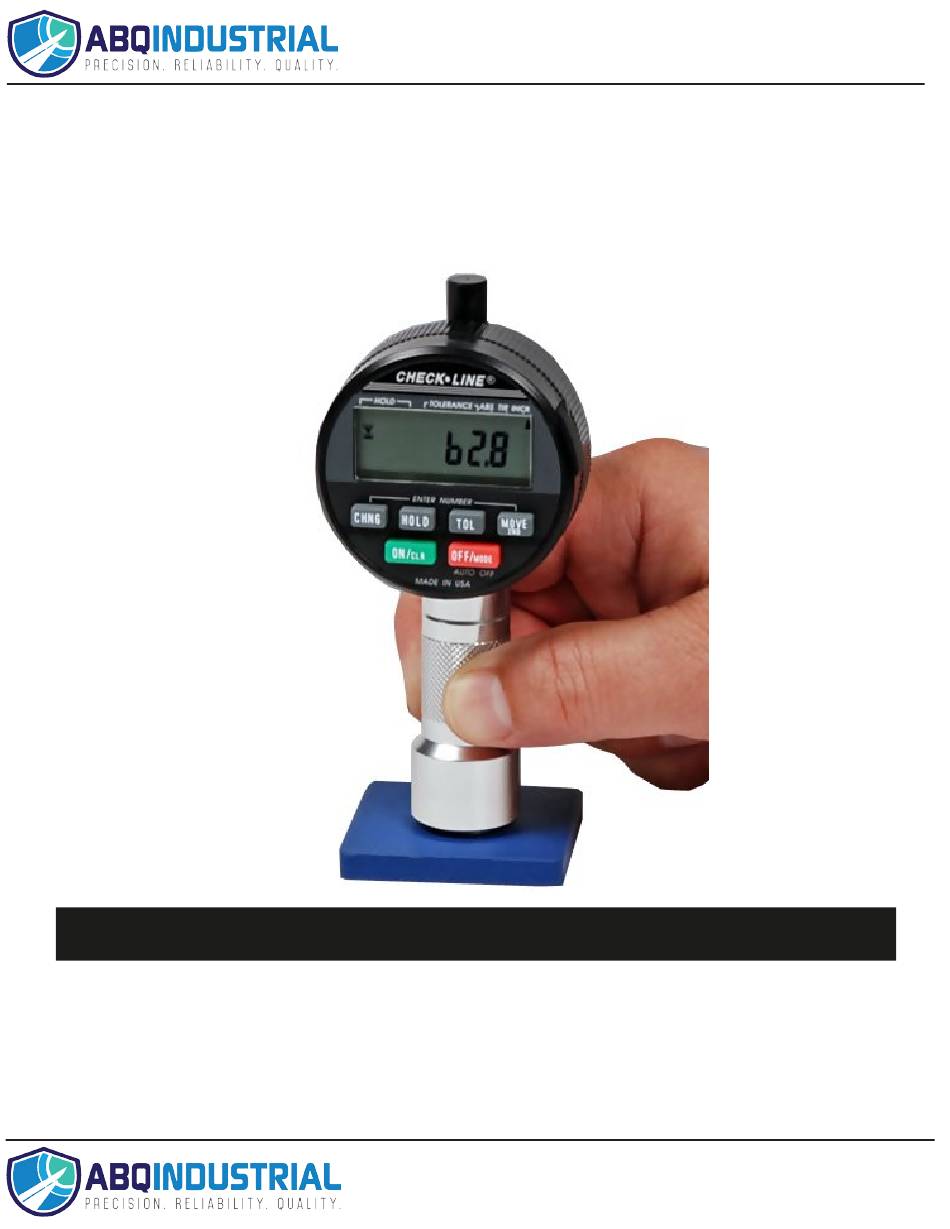

Digital Durometer
Model DD-100
Operating Instructions
Distributed by: ABQ Industrial LP USA
Tel: +1 (281) 516-9292 / (888) 275-5772 eFax: +1 (866) 234-0451
Web: https://www.abqindustrial.net E-mail: info@abqindustrial.net
Advertisement
Table of Contents
Related Manuals for ABQINDUSTRIAL DD-100
Summary of Contents for ABQINDUSTRIAL DD-100
- Page 1 Distributed by: ABQ Industrial LP USA Tel: +1 (281) 516-9292 / (888) 275-5772 eFax: +1 (866) 234-0451 Web: https://www.abqindustrial.net E-mail: info@abqindustrial.net Digital Durometer Model DD-100 Operating Instructions Distributed by: ABQ Industrial LP USA Tel: +1 (281) 516-9292 / (888) 275-5772 eFax: +1 (866) 234-0451...
-
Page 2: Table Of Contents
Table of Contents 1.0 Introduction ................ 1.1 Unpacking 1.2 Complete Kit 2.0 Power ............... 3 2.1 Battery Installation 2.2 Using the AC Adapter 3.0 Operating Instructions ................ 3.1 ON/OFF 3.2 AUTO OFF 3.3 HOLD 3.4 TOLERANCING 3.5 CLEAR 3.6 TOTAL RESET 3.7 FEATURE LOCK 4.0 Specifications ................ -
Page 3: Introduction
Introduction The new Check-Line DD-100 digial durometer is the ideal choice for a wide range of Shore hardness measuring applications. Seven scales are available: A, B, C, D, DO, O, OO. The DD-100 conforms to: • ASTM D-2240 • DIN 53505 •... -
Page 4: Power
Power Battery Installation The DD-100 digital durometer use two internal batteries or an AC adapter. 1. Using a narrow screwdriver, gently pry under the tab on the left side of the plastic bezel and slide the battery tray as you turn the gauge face down. -
Page 5: Operating Instructions
Operating Instructions To operate the gauge, press the foot of the gauge firmly against the specimen, but not so firmly as to imbed the foot into the surface. This will yield the maximum durometer reading. If, during use, the display “freezes” on a number, simply remove the dust cover on top of the gauge and depress the screw with a pen or pencil, then press ON/CLR. -
Page 6: Hold
HOLD To Activate/Deactivate Hold 1. Press and release HOLD until MAX appears in the top of the display. 2. Press and hold HOLD until MAX disappears. TOLERANCING To Set Tolerance Numbers 1. Press and hold TOL until cursor moves under HIGH. 2. -
Page 7: Clear
CLEAR To Clear Display To Zero 1. Press and release ON/CLR. TOTAL RESET To Clear All Settings And Return To Factory Set Defaults 1. Press and hold MOVE 2ND until 2ND appears on bottom of display and then release. 2. Press and release ON/CLR within 3 seconds. 3. -
Page 8: Specifications
* NOTE: per ASTM D 2240-05, Sect 9.3: It is accepted that durometer readings be- low 20 or above 90 are not considered reliable. It is suggested that readings in these ranges be omitted. Conformance to International Standards Model ASTM D2240 DIN 53505 ISO 868 ISO 7619 DD-100-A ● ● ● ● DD-100-B ●... -
Page 9: 4.2 Dimensional Drawings
4.2 Dimensional Drawings Calibration and Repair All Check Line durometers requiring calibration and/or certification should be sent directly to ELECTROMATIC Equipment Co., Inc. -
Page 10: Warranty
Distributed by: ABQ Industrial LP USA Tel: +1 (281) 516-9292 / (888) 275-5772 eFax: +1 (866) 234-0451 Web: https://www.abqindustrial.net E-mail: info@abqindustrial.net Warranty ELECTROMATICEquipmentCo.,Inc.(ELECTROMATIC)warrantstotheoriginalpurchaser that this product is of merchantable quality and confirms in kind and quality with the descriptions and specifications thereof. Product failure or malfunction arising out of any defect in workmanship...
