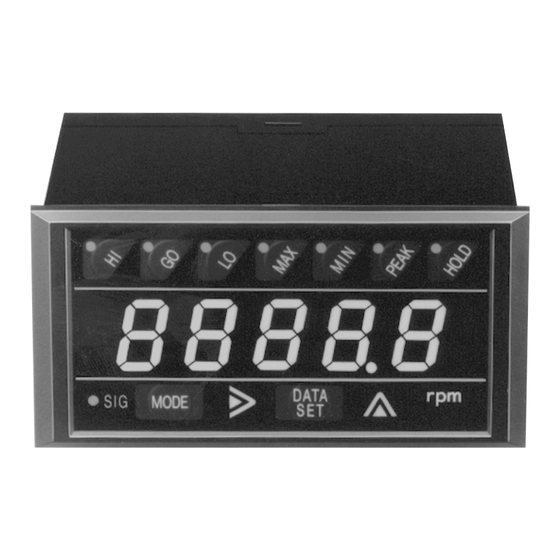

Panel mount tachometer
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual

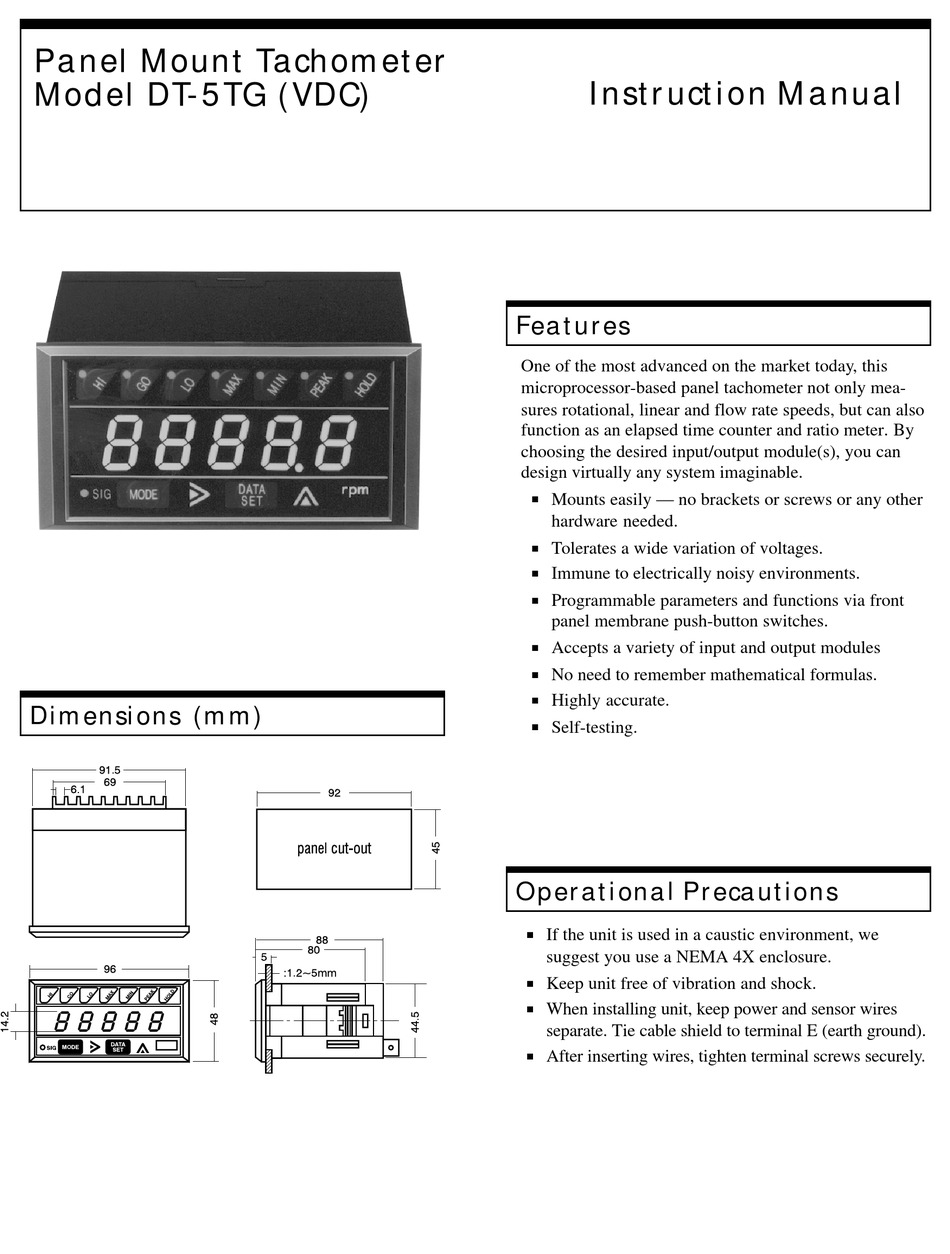

Panel Mount Tachometer
Model DT-5TG (VDC)
Dimensions (mm)
Instruction Manual
Features
One of the most advanced on the market today, this
microprocessor-based panel tachometer not only mea-
sures rotational, linear and flow rate speeds, but can also
function as an elapsed time counter and ratio meter. By
choosing the desired input/output module(s), you can
design virtually any system imaginable.
Mounts easily — no brackets or screws or any other
!
hardware needed.
Tolerates a wide variation of voltages.
!
Immune to electrically noisy environments.
!
Programmable parameters and functions via front
!
panel membrane push-button switches.
Accepts a variety of input and output modules
!
No need to remember mathematical formulas.
!
Highly accurate.
!
Self-testing.
!
Operational Precautions
If the unit is used in a caustic environment, we
!
suggest you use a NEMA 4X enclosure.
Keep unit free of vibration and shock.
!
When installing unit, keep power and sensor wires
!
separate. Tie cable shield to terminal E (earth ground).
After inserting wires, tighten terminal screws securely.
!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DT-5TG and is the answer not in the manual?

Questions and answers

Related Manuals for ABQINDUSTRIAL DT-5TG

Summary of Contents for ABQINDUSTRIAL DT-5TG

  • Page 1 Panel Mount Tachometer Instruction Manual Model DT-5TG (VDC) Features One of the most advanced on the market today, this microprocessor-based panel tachometer not only mea- sures rotational, linear and flow rate speeds, but can also function as an elapsed time counter and ratio meter. By choosing the desired input/output module(s), you can design virtually any system imaginable.

  • Page 2: Specifications

    Specifications Installation Mounting Unit Function Function Rate Measurement Rate Measurement Elapsed Time Counter Elapsed Time Counter Function Function Rate Measurement Rate Measurement Elapsed Time Counter Elapsed Time Counter Our 1/8 DIN case design eliminates the need for brackets 0.0000–9.9999 and screws for installation. With the tachometer in a level 0.000–99.999 99.99 sec.

  • Page 3: Mode Selections

    Connections Mode Selections The DT-5TG has five modes of operation. Each mode uses separate parameters for you to program: 1&2 DC input terminals. Mode Function Application Earth ground. Connect all cable shielding to this Rate measurement Measures rotational terminal. (frequency input) linear or flow rate speeds.

  • Page 4: Setting Modes

    Mode 1: Rate Measurement To change the parameter from 50,000 to 1,000 rpm. 1. Press mode key The DT-5TG can easily measure any rotational, linear or flow rate speed. Each parameter function dictates the necessary steps when preparing a system application.
  • Page 5 50,000 rpm. But during actual measurements, the display shows 3,800 rpm when the sensing speed is 3,500 rpm. 2.Press shift key to select position The DT-5TG can be quickly adjusted: of decimal point. 1. Press mode and increment keys simultaneously for Parameter 5: Minimum RPM (sensor) 5 seconds.
  • Page 6 Parameter 3: Time Units Mode 2: Elapsed Time Mode 1. Press mode key. This mode monitors the time of a continuously variable 2. Press shift key to select units. process. Say, for example, a baker wants to know the amount of time needed to bake cookies. By using a stopwatch, he could measure the amount of time it takes at a known speed of the conveyor.

  • Page 7: Error Codes

    Mode 5: Self Test Display Switches & Functions The DT-5TG has seven display functions located above This mode lets you check the LED display and input the display. All functions have an LED indicator and all circuitry. but GO have a membrane switch. Here is a brief descrip- 1.Press mode and data set keys for...

  • Page 8: Available Modules

    The DT-5TG is available with one, two, or three module Available Modules connectors. Each type is indicated by its suffix: Optional modules are available from Shimpo. Choose any DT-5TG-0 No connector of the following modules – no internal hardware modifi- cation is required.
