Marvel 6SMOD-6SBAR/6SBAR-BN Datasheet

www.dexpress.com
This Data Sheet Includes Information On
Marvel
• Product Model Number (s):
Chateau Collection Wine and Beverage Refrigerators
with without door (door ordered separately):
6SMOD-6SWC/6SBAR-BN, 6SMOD-6SBAR/6SWC-BN
and 6SMOD-6SBAR/6SBAR-BN
• Dimensions (Actual Size)
Depth NOT including door:
Height at full leg adjustment:
Height at 0" leg adjustment:
Height without legs installed:
Toe Kick height:
Door swing at 90°:
Recommended opening width:
Recommended opening depth:
Recommended opening height:
• Additional Information
• Electrical requirements: 120 volts, 6 amps running
max. 20 amp circuit required.
• Locate a 3-prong grounded receptacle in one of three
locations: 1) On the wall in the adjacent cabinet
opening. 2) Flush on the back wall of the refrigerator
opening (add 1" to the overall depth of the unit to
accommodate the thickness of the plug). 3) Recessed
1" into the back wall of the refrigerator opening.
• 6SMOD-6SWC/6SBAR-BN: Wine cellar
upper/Beverage refrigerator lower: Black cabinet, no
door, with high gloss ebony interior. Door option sold
separately.
• 6SMOD-6SBAR/6SWC-BN: Beverage refrigerator
upper/Wine cellar lower: Black cabinet, no door, with
high gloss ebony interior. Door option sold separately.
• 6SMOD-6SBAR/6SBAR-BN: Beverage refrigerator
upper/Beverage refrigerator lower: Black cabinet, no
door, with high gloss ebony interior. Door option sold
separately.
• All models have shelf fronts of clear, solid maple
(unfinished).
• Individual cooling systems and temperature controls
for each compartment.
• Controls and digital temperature displays easily in
center grille.
• Door is reversible in field.
• Wine racks and beverage shelves may be fully
extended at 90° door opening.
• Shipping weight: 356 pounds.
• U.L. Listed.
See pages 2-3 for additional information
Subject to change without notice. This system is designed to
be updated daily if necessary. Dimension Express is not
responsible for use of superseded, voided, or outdated data
sheets. Because of the difficulty or impracticability of deter-
mining actual damages, liability of Dimension Express shall
not exceed $50.00.
Copyright © Dimension Express, 2005.
• NEVER reuse Data Sheets. Data Sheets are subject to change without
notice. Dimension Express is a FREE service bureau and is updated daily,
it makes far more sense to spend the time necessary to request new Data
Sheets for each project, as opposed to the problems, time, costs, and risks
associated with reusing old Data Sheets.
DIMENSION EXPRESS
•
•
22"
69 1/8"
68 3/8"
68 1/8"
Width: 24 1/8"
3"
25 1/2"
24 1/4"
24"
68 3/4"
•
318
Fax on Demand (775) 833-3600
24 1/8"

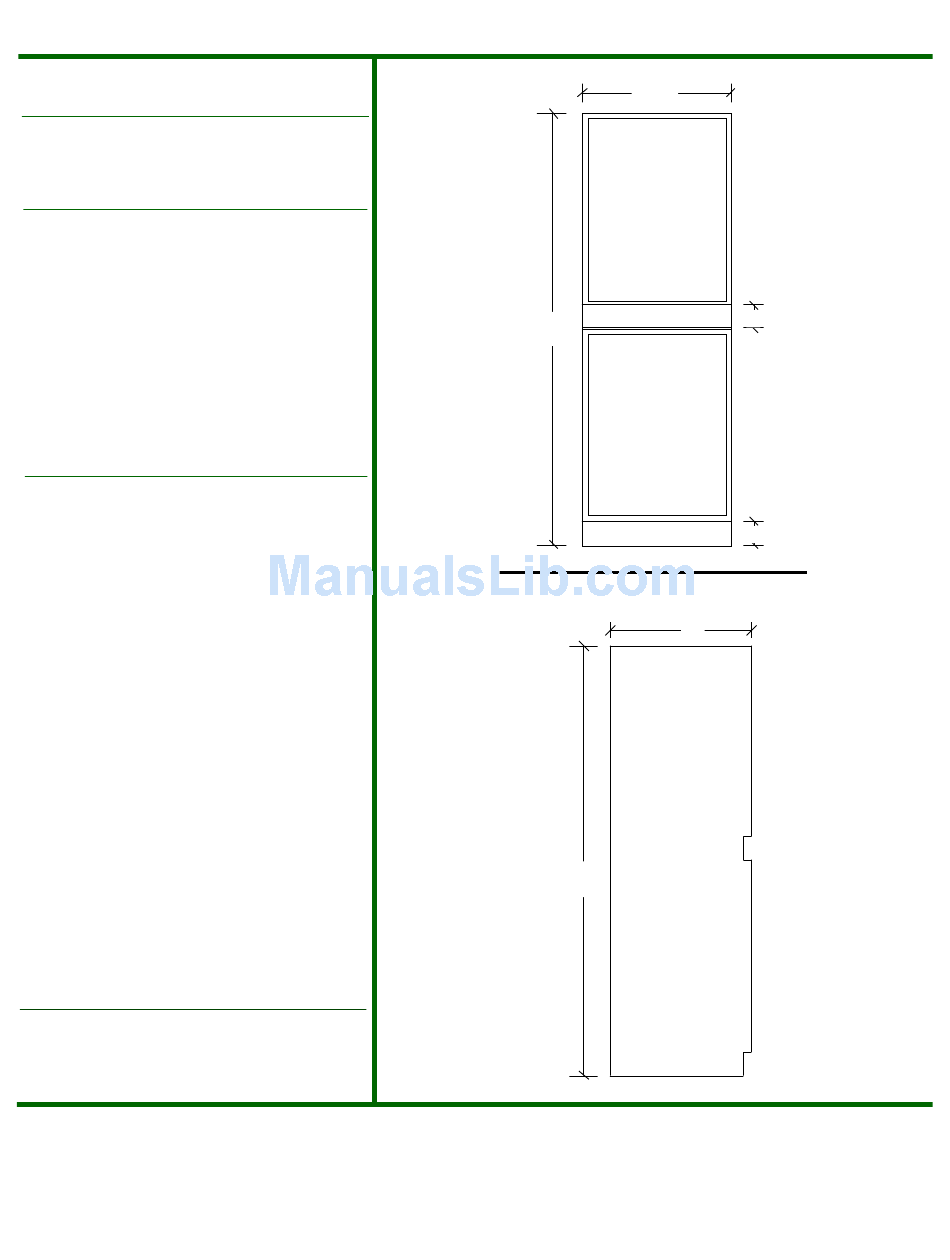

Front View
(not to scale)
69 1/8" Max
68 1/8" Min
(not to scale)
69 1/8" Max
68 1/8" Min
• Call Dimension Express if you have any questions at (775) 833-3633 •
• Always refer to a current Code at a Glance or manufacturer directory •
• Data Sheet codes change on the first of odd numbered months at 12:01am •
3"
3"
22"
Side View
BN • A318B149C150 • • 051506 • 145249 • 26438
