Installation and Operations Manual

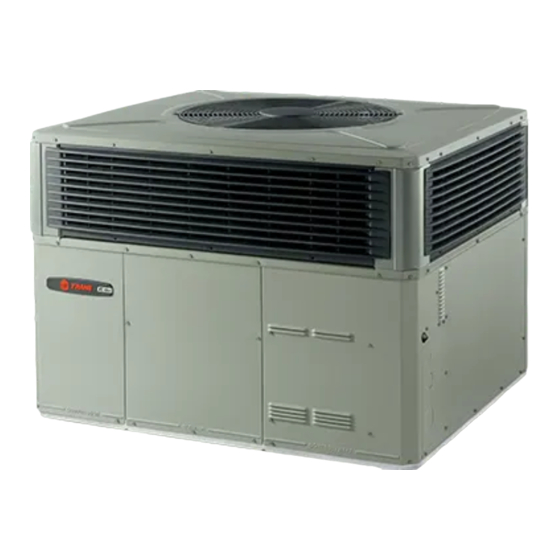

Single Packaged Heat Pump, 15 SEER2
Two Stage, Convertible, 2 – 5 Ton, R-410A
4WCZ5024E1000A
4WCZ5036E1000A
4WCZ5036E3000A
4WCZ5036E4000A
4WCZ5048E1000A
4WCZ5048E3000A
4WCZ5048E4000A
4WCZ5060E1000A
4WCZ5060E3000A
4WCZ5060E4000A
Only qualified personnel should install and service the equipment. The installation, starting up, and servicing of heating, ventilating, and air-conditioning
equipment can be hazardous and requires specific knowledge and training. Improperly installed, adjusted or altered equipment by an unqualified person
could result in death or serious injury. When working on the equipment, observe all precautions in the literature and on the tags, stickers, and labels that
are attached to the equipment.
May 2022
S S A A F F E E T T Y Y W W A A R R N N I I N N G G
1 1 8 8 - - B B B B 4 4 2 2 D D 1 1 - - 1 1 A A - - E E N N
N N o o t t e e : : "Graphics in this document are for representation
only. Actual model may differ in appearance."
N N o o t t e e : : "Unit specific Service Facts available online."
