Empire Comfort Systems VFP32FB Series Installation Instructions And Owner's Manual

Empire Comfort Systems VFP32FB Series Installation Instructions And Owner's Manual

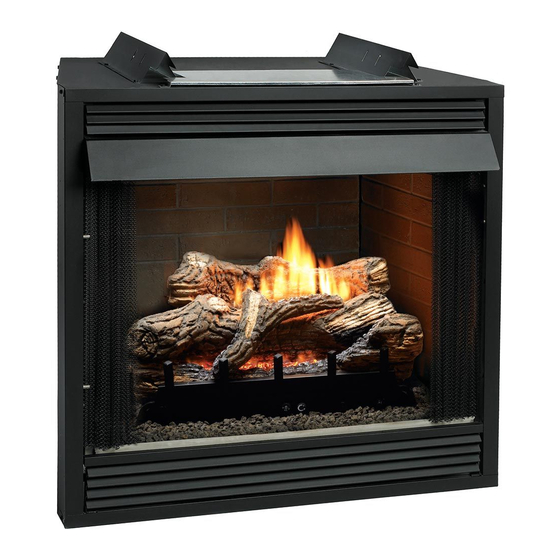

Premium vent-free universal fireboxes

Advertisement

Quick Links

Premium Vent-Free
Universal Fireboxes
ANSI Z21.91 Ventless Fireplace Enclosures for Gas
Fired Decorative Type Unvented Room Heaters
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
WARNING
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death or
property damage.
— Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier
from a neighbor's phone. Follow the
gas supplier's instructions.
• If you cannot reach your gas supplier,
call the fire department.
— Installation and service must be per-
formed by a qualified installer, service
agency or the gas supplier.
INSTALLATION INSTRUCTIONS
AND OWNER'S MANUAL
GAS-FIRED
UNIVERSAL FIREBOX
FOR ALL VENT-FREE
LOG SET MODELS:
VFP(32,36,42)FB0(F,L)-5
VFP(36,42)FB2A(F,L)-5
WARNING
Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage. Refer to this manual. For
assistance or additional information, consult
a qualified installer, service agency or the
gas supplier.
For use only with a listed gas-fired unvented decorative
room heater not to exceed 40,000 btu/h.
Do not build a wood fire.
Carefully review the instructions supplied with the
decorative type unvented room heater for the minimum
fireplace size requirement.
Do not install a vent-free log set in this firebox, unless
this firebox meets the minimum dimensions required
for the installation.
Do not attempt to modify or alter the construction of
the firebox or its components. Any modification or
alteration of construction may void the warranty of
this firebox.
Children and adults should be alerted to the hazards
of high surface temperature and should stay away to
avoid burns or clothing ignition.
Young children should be carefully supervised when
they are in the same room as the firebox.
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VFP32FB Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Empire Comfort Systems VFP32FB Series

  • Page 1 INSTALLATION INSTRUCTIONS AND OWNER'S MANUAL Premium Vent-Free UNIVERSAL FIREBOX Universal Fireboxes FOR ALL VENT-FREE LOG SET MODELS: VFP(32,36,42)FB0(F,L)-5 VFP(36,42)FB2A(F,L)-5 WARNING Improper installation, adjustment, alteration, GAS-FIRED service or maintenance can cause injury or property damage. Refer to this manual. For assistance or additional information, consult a qualified installer, service agency or the gas supplier.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS SECTION PAGE IMPORTANT SAFETY INFORMATION ................3 INTRODUCTION ....................... 3 CLEARANCES ......................4 - 5 FIREBOX INSTALLATION INSTRUCTIONS .............. 6 - 8 INSTALLING HOOD ....................8 - 9 GAS LINE CONNECTION ....................9 OPTIONAL FRESH AIR KIT INSTALLATION INSTRUCTIONS ......10 - 12 OPTIONAL FBB5 SINGLE SPEED BLOWER INSTALLATION INSTRUCTIONS ..
  • Page 3: Important Safety Information

    Report to your dealer any parts damaged in shipment. part or accessory. Any such action may create a possible fire hazard. The Empire Comfort Systems, Inc. warranty will be Consult your local building codes. voided by, and Empire Comfort Systems, Inc. disclaims any responsibility for the following actions: Firebox Screen.
  • Page 4: Clearances

    CLEARANCES Sidewall Clearances: The clearance from the inside of the firebox to perpendicular combustible side wall should not be less than 6 inches. See Figure 1. Firebox Side and Back Clearances: The firebox outer casing side and back flanges are zero clearance to combustibles. Top Framing and Finishing: Combustible finishing materials requires 3/4 inch to top of unit. There are two shoulder bolts attached to the unit to maintain the minimum clearance. See Figure 2.
  • Page 5 CLEARANCES (CONT'D) Ceiling Clearances: The ceiling height should not be less than Notice for Finishing Materials 84 inches to the bottom of the firebox. See Figure 3. The wall above the fireplace will become hot. Install the Mantel Clearances: Vent free firebox models must use the hood non-combustible board supplied with the fireplace before supplied with the firebox, or one of the optional hood kits available adding paint, tile or stone. Attach tile or other non-combustible for each model. If a combustible mantel is installed, it must meet products to the fireplace face and to the non-combustible the clearance requirements detailed below. area (Figures 29 and 30) using adhesives designed for high-temperature applications. Follow the manufacturer's Leave at least 36 inches clearance from the front of the firebox. instructions for application and curing times. Heat from the fireplace may cause incorrectly installed materials to fail. If you CEILING FINISHED...
  • Page 6: Firebox Installation Instructions

    FIREBOX INSTALLATION INSTRUCTIONS Any vent-free Gas Log Heater must be “For use with approved ANSI At this point, you should have decided what components to include Z21.11.2 unvented room heater.” in your installation, and where the firebox is to be located. If this has not been done, stop and consult your dealer for assistance Follow and complete the installation instructions of the gas log set with this planning. and the requirements of this firebox. Planning Your Installation Check all fittings for leaks before lighting the gas log set. Please note that the optional VFA2 Fresh Air kit available for use In planning the installation for the firebox, it is necessary to determine with the Vent Free Firebox must be installed at the time of the initial where the unit is to be installed and whether optional accessories installation. Refer to pages 10, 11 and 12 for detailed instructions are desired. Gas supply piping should also be planned at this time. for the air kit. Accessory kits such as the FBB5 Blower kit, Trim kits, Mantles, Full A gas shut-off must be in this line. Cabinet Mantels, plus other Decorative Frame, Hood, and Door The firebox can be mounted on any of these surfaces: accessory kits may be installed after the firebox is secured to the...
  • Page 7 FIREBOX INSTALLATION INSTRUCTIONS (CONT'D) OUTER FIREBOX DIMENSIONS INNER FIREBOX DIMENSIONS D1 D2 A LOUVERED FLUSH SIDE VIEW TOP VIEW LOUVERED FLUSH INDEX (DIMENSIONS IN INCHES) (DIMENSIONS IN INCHES) DIMENSION DESCRIPTION LETTER VFP32 VFP36 VFP42 VFP32 VFP36 VFP42 The maximum height of the firebox face (excluding standoffs) 38.2 38.2 38.2 38.2 38.2...
  • Page 8: Installing Hood

    FIREBOX INSTALLATION INSTRUCTIONS (CONT'D) Locating Firebox Place firebox in framing opening. Use the tabs on the side of the firebox to attach firebox to framing. Different tab locations can be used for finishing materials with thicknesses of 1/2 inch and 5/8 inch. See Figure 8. Framing tabs should fit directly against framing material. Use at least one nail per bracket to secure in place. Check squareness of the firebox prior to securing to framed opening. See Figure 9. Figure 9 Figure 8 INSTALLING HOOD A black hood that is furnished with each firebox (or optional hood) Flush Face Models MUST be installed before the firebox is used. Failure to do so may create a possible fire hazard. The hood is located behind upper louver, or inside the firebox on flush face units. If brass, stainless steel, or hammered pewter hoods are desired, they can...
  • Page 9: Gas Line Connection

    INSTALLING HOOD (CONT'D) Extended Hoods If your non-combustible facing material is over 1" in thickness that will be used to finish this firebox, an extended hood is available that will extend out 2" farther out into the room. Contact your local dealer for details. VB4H32BL Standard Black VB4H36BL Standard Black VB4H42BL Standard Black VB4H32BR Polished Brass VB4H36BR Polished Brass VB4H42BR Polished Brass VB4H32SS Stainless Steel VB4H36SS Stainless Steel VB4H42SS Stainless Steel VB4H32HP Hammered Pewter VB4H36HP Hammered Pewter VB4H42HP Hammered Pewter Finishing All joints (top, bottom and sides), where the wall or decorative facing material meets the firebox surround should be sealed with a non- combustible material. Hearth extensions are recommended, but not required for these fireboxes. GAS LINE CONNECTION The firebox is designed to accept a 3/8-inch gas line for an approved vent-free gas logset. Have the line installed by a qualified service person in accordance with all building codes. Consult local building...
  • Page 10: Optional Fresh Air Kit Installation Instructions

    OPTIONAL FRESH AIR KIT INSTALLATION INSTRUCTIONS The optional Fresh Air Kit is designed to introduce outside air to 3. Insert Slide Assembly through the cut-out as shown in Figure the firebox as desired. 15. Before you fasten ensure that the handle penetrates the inner firebox wall. See Figure 16. Fasten the Slide Assembly It must be installed prior to, or at the time of firebox installation to with the four 10 x 1/2 Hex Head Screws provided. framing. The Fresh Air kit must be installed prior to the installation of wall- board or other finishing materials around the unit. Hardware needed (not provided): 4 inch Aluminum Flex Duct, 2 Band Clamps Tools needed: Gloves, Metal snips, 5/16 inch Nut Driver, Phillips Screwdriver CAUTION: Sharp edges Slide Assembly Installation 1. Begin by removing the rectangular cutout located on the left side of the unit. Use gloves and sheet metal snips to create the opening for the Air Door assembly to install into. See Figure 13. Figure 15 Figure 13 2. Bend the tab out of the way.
  • Page 11 OPTIONAL FRESH AIR KIT INSTALLATION INSTRUCTIONS 4. Fasten the Handle Retainer to the firebox side with two Completion of Air Kit installation 10 x 1/2 Phillips Truss Head Screws as shown in Figure 16. 1. Determine the length of 4 inch diameter rigid or flex duct con- 5. Push the handle for Open position and pull the handle for the nector (installer supplied) you will need from the firebox/fire- Closed position. See Figure 17. place to the exterior surface of the outside wall, where the air kit hood will be installed. Add a few extra inches to the length to allow for easier attachment of the outside duct connection prior to securing the outside rain cap hood to the building. 2. Secure the 4 inch diameter duct to the Slide Assembly collar on the firebox with band clamps or screws (installer supplied). 3. Run the other end of the duct through the exterior wall cutout. 4. From the outside of the building, connect the duct to the collar on the outside air vent assembly with band clamp or screws to secure (installer supplied).
  • Page 12 OPTIONAL FRESH AIR KIT INSTALLATION INSTRUCTIONS PARTS LIST INDEX NO. PART NO. DESCRIPTION 29259 Outside Air Vent Assembly 29257 Slide Assembly 29263 Handle Retainer Hardware Pack Page 12 33742-6-1217...
  • Page 13: Optional Fbb5 Single Speed Blower Installation Instructions

    OPTIONAL FBB5 SINGLE SPEED BLOWER INSTALLATION INSTRUCTIONS Attention: It is recommended to install the blower assembly be- A factory installed junction box is located on the lower right fore connecting gas inlet supply line. side of the fireplace. Wiring must be fed to the junction box Wiring and attached to the receptacle that is provided. From right The appliance, when installed, must be electrically grounded in side of the fireplace, remove the screw securing the junction accordance with local codes or, in the absence of local codes, box assembly. Leave approximately 6” of wire in the junction...
  • Page 14 OPTIONAL FBB5 SINGLE SPEED BLOWER INSTALLATION INSTRUCTIONS 2. Remove air deflector by removing the four screws securing it 6. The fan control wires will slide down between the firebox and to the blower assembly. outer wrap near the blower assembly. See Figure 24. 7. One fan control wire will have a 1/4” female terminal that must be attached to the open terminal on the blower motor. See Figure 27, Connection A. 6. The other fan control wire has a 1/4” male terminal. Attach this terminal to the open terminal on the blower power cord. See Figure 27, Connection B. 9. Route the wires away from moving parts of the blower assem- bly and retain wires together near the blower motor using the plastic purse clip provided. 10. To complete the installation, plug the power cord into the junc- tion box receptacle at the right rear corner of the firebox outer Figure 23 wrap.
  • Page 15 OPTIONAL FBB5 SINGLE SPEED BLOWER INSTALLATION INSTRUCTIONS Blower Motor 120 VOLT AC The blower motor does not have oiling holes. Do not attempt to oil the blower motor. Blower Wheels The blower wheels will collect lint and could require periodic clean- ing. If the air output decreases or the noise level increases, it indi- cates a dirty blower wheel. Remove fan and clean blower wheels. Blower Wiring See Figure 26 For Wiring WARNING: Unplugging of blower accessory will not stop the heater from cycling. To turn off gas to the heater (millivolt model): push in gas control knob slightly and turn clockwise to “OFF.” Do not force. To turn off gas on direct ignition model, turn gas line valve to “OFF.” Figure 26 INDEX NO.
  • Page 16: Junction Box Wiring Installation Instructions

    JUNCTION BOX WIRING INSTALLATION INSTRUCTIONS CAUTION: ALL WIRING SHOULD BE DONE BY A QUALIFIED Install the receptacle into the junction box. Attach cover plate. ELECTRICIAN AND SHALL BE IN COMPLIANCE WITH ALL LOCAL, CITY AND STATE BUILDING CODES. BEFORE MAKING THE ELECTRICAL CONNECTION, MAKE SURE THAT MAIN POWER SUPPLY IS DISCONNECTED. THE APPLIANCE, WHEN INSTALLED, MUST BE ELECTRICALLY GROUNDED IN ACCORDANCE WITH LOCAL CODES OR, IN THE ABSENCE OF LOCAL CODES, WITH THE NATIONAL ELECTRICAL CODE...
  • Page 17: Master Parts Distributor List

    MASTER PARTS DISTRIBUTOR LIST To Order Parts Under Warranty, please contact your local Empire dealer. See the dealer locator at www.empirecomfort. com. To provide warranty service, your dealer will need your name and address, purchase date and serial number, and the nature of the problem with the unit. To Order Parts After the Warranty Period, please contact your dealer or one of the Master Parts Distributors listed below. This list changes from time to time. For the current list, please click on the Master Parts button at www.empirecomfort.com. Please note: Master Parts Distributors are independent businesses that stock the most commonly ordered Original Equipment repair parts for Heaters, Grills, and Fireplaces manufactured by Empire Comfort Systems Inc. Dey Distributing F. W. Webb Company 1401 Willow Lake Boulevard 200 Locust Street Vadnais Heights, MN 55101 Hartford, CT 06114 Phone: 651-490-9191 Phone: 860-722-2433 Toll Free: 800-397-1339 Toll Free: 800-243-9360 Website: www.deydistributing.com...
  • Page 18: Parts List

    PARTS LIST PART NO (LOUVERED & FLUSH) INDEX DESCRIPTION VFP32FB0L VFP36FB0L VFP42FB0L VFP32FB0F VFP36FB0F VFP42FB0F 17162 17162 17162 17162 17162 17162 JUNCTION BOX ASSEMBLY R3492 R3492 R3492 R3492 R3492 R3492 RECEPTACLE R3491 R3491 R3491 R3491 R3491 R3491 COVER, JUNCTION BOX 25447 25447 25447 25447 25447...
  • Page 19: Parts View

    PARTS VIEW FLUSH LOUVER 33742-6-1217 Page 19...
  • Page 20: Accessories

    ACCESSORIES Accessory Description Model Numbers Fan Kit Designed to provide forced air flow. FBB5 Variable Speed Control Kit Wall mounted variable speed control SCV-1 for use with FBB5 blower Brick Liners Contact dealer for all available Liner for Firebox optional liner kits Fresh Air Kit Deluxe and Premium Fireboxes VFA2 Frame Kits 3-Piece Frame Kits Contact dealer for all available Black, Stainless Steel or Hammered Pewter optional frame kits Standard Hood Brass hood = BR Contact dealer for all available Stainless Steel = SS optional hood accessories Hammered Pewter = HP Page 20 33742-6-1217...
  • Page 21 ACCESSORIES (CONT'D) Accessory Description Model Numbers Extended 4" Hoods Extended hoods that extend out 2" farther than the standard hoods, to accommodate thicker surround materials. Contact dealer for all available optional hood accessories Available as optional kits in Brass, Hammered Pewter, and Stainless Steel finishes. Louvers Styles include Slat, Mission, Arch, and Leaf Patterns. Contact dealer for all available optional louver accessories Available as optional kits in Brass, Hammered Pewter, and Stainless Steel finishes. Bottom Trim Strip Available as optional kits in Brass, Hammered Contact dealer for all available Pewter, and Stainless Steel finishes. optional trim accessories Available as optional kits in Brass, Hammered Contact dealer for all available Decorative Door Kits Pewter, and Stainless Steel finishes. optional frame kit accessories Contact dealer for all available Available as optional kits in Brass, Hammered...
  • Page 22: Warranty

    WARRANTY Empire Comfort Systems Inc. warranties this hearth product to be free from defects at the time of purchase and for the periods speci- fied below. Hearth products must be installed by a qualified technician and must be maintained and operated safely, in accordance with the instructions in the owner’s manual. This warranty applies to the original purchaser only and is not transferable. All warranty repairs must be accomplished by a qualified gas appliance technician. Limited Lifetime Parts Warranty with a Five-Year Limited Labor Warranty – Combustion Chamber and Heat Exchanger If the combustion chamber or heat exchanger (see parts list) fails because of defective workmanship or material, Empire will repair or replace at Empire’s option. Within five years from the date of purchase, Empire will pay reasonable labor to have the defective part repaired or replaced at Empire’s option. Limited Five-Year Parts & Labor Warranty – All Other Components (Except Remote Controls, Thermostats, Accessories and Replacement Parts) Should any part fail because of defective workmanship or material within five years from the date of purchase, Empire will repair or replace at Empire’s option. Within five years from the date of purchase, Empire will pay reasonable labor to have that defect repaired at Empire’s option.
  • Page 23: Appliance Service History

    APPLIANCE SERVICE HISTORY Date Dealer Name Service Technician Name Service Performed/Notes 33742-6-1217 Page 23...
  • Page 24 Empire Comfort Systems Inc. Belleville, IL If you have a general question about our products, please e-mail us at info@empirecomfort.com. If you have a service or repair question, please contact your dealer. www.empirecomfort.com Page 24 33742-6-1217...
