OWNER'S MANUAL

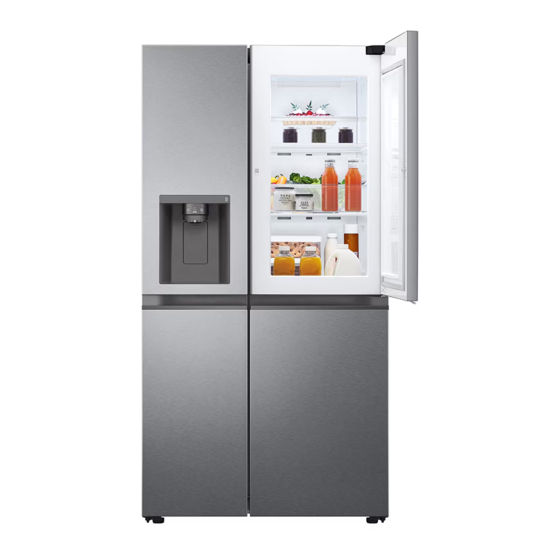

FRIDGE & FREEZER
Before beginning installation, read these instructions
carefully. This will simplify installation and ensure that the
product is installed correctly and safely. Leave these
instructions near the product after installation for future
reference.
ENGLISH
MFL71798812
Rev.02_110222
Copyright © 2021-2022 LG Electronics Inc. All Rights Reserved.
www.lg.com
Advertisement
Table of Contents
Related Manuals for LG GSJV50DSXF
Summary of Contents for LG GSJV50DSXF
- Page 1 Before beginning installation, read these instructions carefully. This will simplify installation and ensure that the product is installed correctly and safely. Leave these instructions near the product after installation for future reference. ENGLISH www.lg.com MFL71798812 Rev.02_110222 Copyright © 2021-2022 LG Electronics Inc. All Rights Reserved.
-
Page 2: Table Of Contents
Before Use ......................20 Product Features....................23 Control Panel ....................26 Ice and Water Dispenser.................28 Automatic Icemaker ..................30 Door in Door .....................32 Drawer.......................32 Shelf ........................32 Door Basket ......................33 SMART FUNCTIONS LG ThinQ Application ..................34 Smart Diagnosis ....................34 MAINTENANCE Cleaning ......................36 Water Filter .......................36 Deodorizer ......................38... - Page 3 TROUBLESHOOTING Before Calling for Service................40...
-
Page 4: Safety Instructions
SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as described below. Safety Messages This symbol is displayed to indicate matters and operations that can cause risk. - Page 5 SAFETY INSTRUCTIONS appliance. Cleaning and user maintenance shall not be made by children without supervision. • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Page 6 • Do not clean the appliance with brushes, cloths or sponges with rough surfaces or which are made of metallic material. • Only qualified service personnel from LG Electronics service centre should disassemble, repair, or modify the appliance. Contact an LG Electronics customer information centre if you move and install the appliance in a different location.
- Page 7 SAFETY INSTRUCTIONS Risk of Fire and Flammable Materials • If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes. In order to avoid the creation of a flammable gas air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance is used should correspond to the amount of refrigerant used.
- Page 8 • Ensure that the outlet socket is properly grounded, and that the earth pin on the power cord is not damaged or removed from the power plug. For more details on grounding, inquire at an LG Electronics customer information centre.
- Page 9 • Do not bend the power cable excessively or place a heavy object on it. • Immediately unplug the power plug and contact an LG Electronics customer information centre if you detect a strange sound, odour, or smoke coming from the appliance.
-
Page 10: Caution
SAFETY INSTRUCTIONS Disposal • When discarding the appliance, remove the door gasket while leaving the shelves and baskets in place and keep children away from the appliance. CAUTION CAUTION To reduce the risk of minor injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following: Installation... - Page 11 They may shatter if exposed to sudden temperature changes. • Do not insert the shelves upside down. The shelves may fall. • To remove frost from the appliance, contact an LG Electronics customer information centre. • Dispose of the ice inside the ice bin in the freezer compartment...
-
Page 12: Caring For The Environment
• You can take your appliance either to the shop where you purchased the product, or contact your local government waste office for details of your nearest authorised WEEE collection point. For the most up to date information for your country please see www.lg.com/global/recycling. -
Page 13: Installation Before Installation
INSTALLATION INSTALLATION Before Installation Ambient Temperature • The appliance is designed to operate within a Dimensions and Clearances limited range of ambient temperatures, depending on the climate zone. Too small of a distance from adjacent items may result in the degradation of freezing capability and •... -
Page 14: Removing The Fridge And Freezer Door
INSTALLATION Accessories collet to detach the water supply line. Unscrew the cover *1 This feature is only available on some models. Spanner A Spanner B Water Filter Remove the screw from the hinge cover at the Water Tube top of the appliance. Lift the hook, located at Tube Connector and Clip the bottom of the front side of the cover, with a flat-head screwdriver. - Page 15 INSTALLATION Removing the Fridge Door Rotate the hinge lever counterclockwise. Lift the top hinge free of the hinge lever latch Disconnect all wire harnesses CAUTION NOTE • When lifting the hinge free of the latch, be • The number of wire harnesses may vary careful that the door does not fall forward.
-
Page 16: Connecting The Water Line
INSTALLATION Not straight Damaged Stretched CAUTION • Place the door on a non-scratching surface with the inner side facing up. Connecting the Water Line This feature is only available on some models. Refitting the Fridge and Freezer Water Supply Requirements Door A cold water supply with water pressure between Refit the doors in the reverse sequence of their... -
Page 17: Levelling And Door Alignment
INSTALLATION Connecting Water to the NOTE Appliance Only For Germany Unscrew the metal threaded collar nut at the • Connect your appliance only to a water tap with back of the appliance and place it over one end a safety device (according to EN 1717) to avoid of the water tube. - Page 18 INSTALLATION • Some timber flooring may cause levelling NOTE difficulties if it flexes excessively. - Spanner Type A Door Alignment for Freezer and Fridge Door If the door of the appliance is not level, adjust the difference in the height of appliance door. - Spanner Type B Levelling the Appliance The appliance has two front levelling legs.
-
Page 19: Turning On The Power
INSTALLATION Use the spanner to fasten the keeper nut by over a long distance, keep the appliance turning it to the right. upright. After installing the appliance, connect the power plug into a mains outlet socket and switch it on. Turning on the Power Connecting the Appliance To turn on the appliance, connect the power plug... -
Page 20: Operation
NOTE • Contact the LG Electronics customer information centre if the alarm sound continues even after Suggestion for Energy Saving closing all doors. • For the most efficient use of energy, keep all inner parts (e.g. - Page 21 OPERATION • Do not set the temperature of the appliance moisture content in the chill compartments as lower than needed. they may freeze due to the lower temperature. • Do not put food near the temperature sensor of • In the event of a blackout, call the electricity the fridge compartment.
- Page 22 OPERATION Two Star Compartment • Two star ( ) basket or drawer can be used to store ice and food from -12 °C to -18 °C for short periods. • Two star frozen food compartments are suitable for storing pre-frozen food, storing or making icecream and making ice cubes.
-
Page 23: Product Features
OPERATION Product Features The appearance or components of the appliance may differ from model to model. Exterior *1 This feature is only available on some models. Door in Door This is a convenient storage area for frequently-used items that require easy access. Door in Door Lever Opens Door-in-Door. - Page 24 OPERATION Interior *1 This feature is only available on some models. LED Lamp The LED lamps inside the appliance light up when you open the door. Temperature Sensor This sensor senses the temperature of the fridge compartment. • Maintain the distance between the sensor and food to accurately sense the temperature. Automatic Icemaker This is where ice is automatically produced and stored.
- Page 25 OPERATION • The actual number of shelves will differ from model to model. Bottle Rack Stores containers and tall bottles using the bottle rack. CAUTION • Do not store short bottles or containers. The items may fall and cause an injury or appliance damage. Snack Drawer Stores small packages of refrigerated foods.
-
Page 26: Control Panel
OPERATION Control Panel The actual control panel may differ from model to model. Control Panel and Functions *1 This feature is only available on some models. Control Panel Dispenser Control Panel Fridge Press this button repeatedly to select a desired temperature between 1 °C and 7 °C. •... - Page 27 OPERATION Non Plumbing The Non Plumbing icon is illuminated when the water dispenser tank is installed correctly. Freezer Press this button repeatedly to select a desired temperature between -23 °C and -15 °C. • The default freezer temperature is -18 °C. Ice On/Off Press and hold the Ice On/Off button for three seconds to turn the automatic icemaker On/Off.
-
Page 28: Ice And Water Dispenser
OPERATION Ice and Water Dispenser Using the Ice and Water Dispenser Before Using the Ice and Water Dispenser Press the dispenser selection button , and then the LED above the icon that you want illuminates. CAUTION • Keep children away from the dispenser to prevent children playing with or damaging the controls. - Page 29 OPERATION Cleaning the Dispenser Tray Fill with bottle filtered or clean filtered water up Wipe the entire area with a damp cloth. The to the reference line indicated inside the water dispenser tray may become wet easily due to dispenser tank. (Total capacity: 4 ℓ) spilled ice or water.
-
Page 30: Automatic Icemaker
• If there is an insufficient amount of water in the If the problem continues, contact the LG water dispenser tank, ice cube size and quantity Electronics customer information centre. Do not... - Page 31 OPERATION appliance, frequency of the door being opened, Refit the in-door ice bin in the reverse amount of food stored in the appliance, etc.). sequence of their removal. CAUTION • Do not touch the automatic icemaker’s mechanical parts with your hand or a tool. Otherwise, appliance damage or injury may occur.
-
Page 32: Door In Door
OPERATION Drawer Preparing for Vacation Set the Ice On/Off button to Off and shut off the CAUTION water supply to the appliance. • Always empty the drawers before removing NOTE them, and use both hands when removing and refitting them. •... -
Page 33: Door Basket
OPERATION Door Basket • Do not clean glass shelves with warm water while they are cold. Shelves may break if exposed to sudden temperature changes or Removing/Refitting the Door impact. Basket Removing/Refitting the Shelf Hold both edges of the basket and remove it by lifting it upward. -
Page 34: Smart Functions
LG ThinQ application. LG ThinQ Application Feature • Launch the LG ThinQ application and select the Smart Diagnosis feature in the menu. Follow Smart Diagnosis the instructions provided in the LG ThinQ If you experience a problem while using the application. - Page 35 SMART FUNCTIONS NOTE • For best results, do not move the phone while the tones are being transmitted.
-
Page 36: Maintenance Cleaning
MAINTENANCE MAINTENANCE Cleaning Cleaning the Interior • When removing a shelf or drawer from inside General Cleaning Tips the appliance, remove all stored foods from the shelf or drawer to prevent injury or damage to • Performing manual defrosting, maintenance or the appliance. - Page 37 CAUTION - Visit your local dealer or distributor or contact • Do not install if water pressure exceeds 827 kPa. the LG Electronics Customer Information If your water pressure exceeds 827 kPa, you Centre. For further assistance, visit our must install a pressure limiting valve. Contact a website at lg.com...
-
Page 38: Deodorizer
Push fit connector type CAUTION Remove the screw cap. • Failure to replace filters when required or using non LG authorised water filters can cause the filter cartridge to leak and result in property damage. Application Guidelines/Water Pull the pipe out from the water fitler. - Page 39 MAINTENANCE Pull out the upper fridge drawer. CAUTION • Do not wash the deodorizer with water. Unscrew the screw at the deodorizer. Press on the hooks at the deodorizer and then take it out. Dry the deodorizer by using a hair dryer or by leaving it in the sunlight.
- Page 40 • Press I on the automatic icemaker switch or set ON for the automatic icemaker button on the control panel. (For more details on how to use, visit LG Electronics website or use your smart device.) Is the temperature of the freezer compartment set too high? •...
- Page 41 TROUBLESHOOTING Symptoms Possible Cause & Solution Ice is not dispensed. Is the ice path blocked? (You can check the ice passage by separating the ice bin.) • Ice may not be dispensed properly if the ice passage is blocked. Check the ice and clean the ice path regularly.
- Page 42 TROUBLESHOOTING Cooling Symptoms Possible Cause & Solution There is no Is there a power interruption? refrigeration or • Check the power of other appliances. freezing. Check the power of other appliances. • Plug the power plug in the outlet properly. A fuse in your home may be blown or the circuit breaker tripped.
- Page 43 TROUBLESHOOTING Condensation & Frost Symptoms Possible Cause & Solution There is condensation Did you store hot food without cooling it first? inside the appliance or • Cool the hot food first before putting it inside the fridge or freezer. on the bottom of the vegetable drawer Did you leave the appliance door open? cover.
- Page 44 Lamp failure appliance does not • Close the door and re-open. If the lamp does not turn on, please contact turn on. the LG Electronics customer information centre. Do not attempt removal of the lamp. Noises Symptoms Possible Cause & Solution...
- Page 45 TROUBLESHOOTING Symptoms Possible Cause & Solution The appliance is noisy Are objects scattered behind the appliance? and generates • Remove the scattered objects from behind the appliance. abnormal sounds. Is there an object on top of the appliance? • Remove the object on top of the appliance. Clicking noises The defrost control will click when the automatic defrost cycle begins and ends.
- Page 46 • The minimum warranty period of this refrigerating appliance is 24 months. • Spare parts referenced in Regulation EU 2019/2019 are available for 7 years (only door gaskets are available for 10 years). • To purchase spare parts, contact an LG Electronics customer information centre or our website at www.lg.com. NOTE •...
- Page 47 TROUBLESHOOTING • The model name can be found on the rating label of the appliance. • This product contains a light source of energy efficiency class G.
