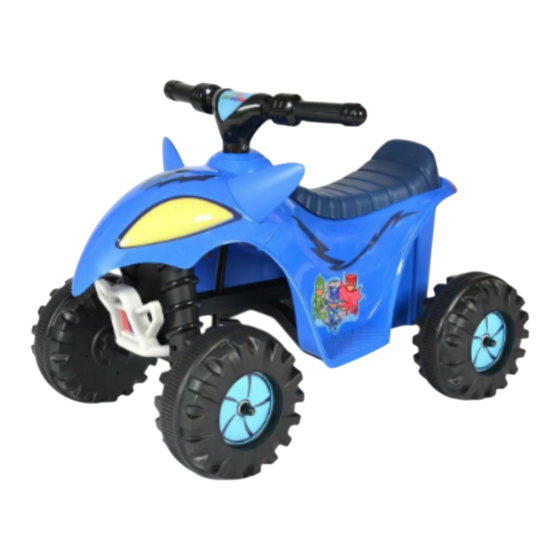

- Page 1 6V PJ Masks Quad Manual Model # W413PJ The owner’s manual contains important safety information as well as assembly, use and maintenance instructions. Keep this manual for future reference. Styles and colors may vary. Made in China.
-
Page 2: Introduction
Introduction Thank you for purchasing this vehicle from Hunter Products. We hope the rider enjoys it for miles to come. Please read this instruction guide carefully before assembling and operating the vehicle. Please have your model number and serial number ready before calling. Please have proof of purchase. -
Page 3: Table Of Contents
Table of Contents Introduction ..........2 Contents .............3 Safety ............4-8 Parts ............9 Charging Instructions ........10 Assemble the Wheels ........11 Attach the Handlebar ........12 Assemble the Front Hood ......13 Attach the Seat ..........14 Operating Instructions .......15 Maintenance ..........16 General Care ..........17 Troubleshooting Guide ......18-19 Service and Repairs ........20 Warranty ............21... - Page 4 IMPORTANT! YOU MUST CHARGE THE BATTERY FOR 24 HOURS BEFORE FIRST USE! Charge the battery after each use. Charge the battery at least once a month, even if the vehicle is not in use. Email or call Customer Service if you need assistance or replacement parts.
-
Page 5: Safety
Safety WARNING! The following safety hazards may result in serious injury or death to the user of the vehicle: • This product contains small parts that are for adult assembly only. Keep small children away when assembling. Remove and dispose of all protective material and poly bags before assembly. - Page 6 User Requirements Age Range Weight Range Before using the vehicle the child should understand the vehicle controls and safety issues. They must also demonstrate the capability to handle the vehicle and operate its controls. It is the responsibility of the adult to educate the child and supervise the vehicles use.
- Page 7 Charging the Battery: Warnings WARNING! The following safety hazards may result in serious injury or death to the user of the vehicle: Use of a battery or charger other than the supplied 6v rechargeable battery and • charger may cause a fire or explosion. Only use the supplied 6v rechargeable battery and charger with the vehicle.
- Page 8 Charging the Battery: Warnings WARNING! Battery posts, terminals and related accessories contain lead and lead • compounds (acid), chemicals and are toxic and corrosive. Never open the battery. • Tampering or modifying the electric circuit system may cause or explosion and permanently damage the system. Exposed wiring, circuitry in the charger may cause electric shock.
-
Page 9: Parts
Parts Helpful Tip: The Washers and Hex Nuts are already fitted to the axles. 1. Manual 7. Small Washers ( x4) 13. Seat 2. Battery 8. Split Washers ( x4) 14. Hex Wrench 3. Charger 9. Hex Nuts ( x4) 4. -
Page 10: Charging Instructions
Charging Instructions YOU MUST CHARGE THE BATTERY FOR 24 HOURS BEFORE THE FIRST USE! ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER. To Charge the Battery: Battery To Unplug the Battery: Note: It is not necessary to remove the battery for charging. -
Page 11: Assemble The Wheels
Wheel Assembly Flat Washer Hex Nut Wheel Split Washer 1. Remove the hex nut, split washer and small at washer from each axle. The large, at washer stays on the axle. 2. Slide the wheel (5) onto the axle. 3. Slide small, at washer onto the axle. 4. -
Page 12: Attach The Handlebar
Attach the Handlebar 1. Remove the screw and nut from the handlebar before attaching. 2. Plug the handlebar connector into the dashboard connector. 3. Slide the handle bar onto the steering rod, and align the screw holes on the handlebar with the holes on the steering rod. 4. -
Page 13: Assemble The Front Hood
Attach the Front Hood 1. Locate the side mirrors and screws in the poly bag. Insert the mirrors into the front hood. Then, use the screws and screwdriver to secure them. 2. Plug the vehicle connector into the hood connector. 3. -
Page 14: Attach The Seat
Attach the Seat 1. Ensure the red battery connector(A) is connected to the red engine connector(B) before attaching the seat. 2. Position the seat over the battery compartment. 3. Turn the lock on the seat to the open position and align the lock with the lock hole near the front of the battery compartment. -
Page 15: Operating Instructions
Operating Instructions Power Button Sound Button (Horn & Engine Sounds) Power Button Sound Button Lights... -
Page 16: Maintenance
Maintenance Important Battery and Charger Information Only an adult who has read and understands the safety warnings may handle and operate the battery and battery charger. Keep away from children. Charge the battery for 24 hours before using the vehicle for the rst time. -
Page 17: General Care
General Care Regularly inspect all vehicle parts to ensure they are in good working condition. Regularly inspect the charger, cord, plug, and other related parts for damage. Remove any damaged parts and immediately contact Customer Service for replacement parts. DO NOT operate the vehicle if there are any damaged parts. Carefully clean the vehicle with a damp cloth and mild soap. -
Page 18: Troubleshooting Guide
Troubleshooting Guide Completely read through the manual and troubleshooting guide before contacting Customer Service. Problem Potential Cause Solution Vehicle does not run Battery is low Recharge the battery Thermal fuse tripped Reset fuse Snap pins are loose Tighten snap pins Loose wires or loose Ensure the battery connectors connectors... - Page 19 Troubleshooting Guide Problem Potential Cause Solution Vehicle needs a push to Loose wires or loose Ensure the battery connectors start connectors are securely attached. If wires are loose, contact Consumer Service for repairs “Dead spot” on motor A “dead spot” means electricity is not being delivered to the terminal.
-
Page 20: Service And Repairs
Service and Repairs If your product requires service, repairs or replacement parts, please visit us online at www.electricrideon.com.au Or contact us at: Toll Free Service Phone: 1800 224 094 emall: www.enquiries@hunterproducts.com.au Hours: 9.00 AM - 5.00 PM (AEST), Monday - Friday... -
Page 21: Warranty
Hunter Products Please retain your receipt as proof of purchase and contact further assistance on how to process any warranty claims. Business name: Hunter Products Pty Ltd Business address: Level 2, 424 Warrigal Road, Moorabbin VIC 3189, Australia Toll Free Phone: 1800 224 094 (Monday to Friday 9.00am to 5.00pm AEST)
