- Page 1 EBOX-335xDX3 Series Mini PC User’s Guide...
- Page 2 EBOX-335xDX3 Series User Manual Copyright This manual is subject to change without notice for continuous improvement in the product. All rights are reserved. Manufacturer assumes no responsibility for any inaccuracies that may contain in this document, and makes no commitment to update or to keep current information in this manual. No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior written permission of the DMP Electronics Inc.
- Page 3 EBOX-335xDX3 Series User Manual Regulatory FCC Class A Note This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when equipment is operated in a commercial environment.
- Page 4 EBOX-335xDX3 Series User Manual Purchase Agreement Purpose: In accordance to the general commercial conduct of Trust and Fair Trade, herewith below is the agreement for the protection for both parties, DMP and Users in pursuant of trading. Product Description: EBOX-335xDX3 Series is a simplified and economical design of an embedded device for Special Purpose PC. It is comprised of x86 technology design with onboard 1GB/2GB DDR3 System memory, VGA or HDMI display, USB, COM ports, and LAN Interfaces.
-
Page 5: Table Of Contents
EBOX-335xDX3 Series User Manual Contents Chapter 1 07 Unpacking EBOX Mini PC Chapter 2 10 EBOX-335xDX3 Series Overview 11 EBOX-335xDX3-RCA Series Overview 12 System Specifications 13 SD card recommendation Chapter 3 15 BIOS Reconfiguring 16 Drivers Installation Guide 19 Additional Information 19 Screen rotation 20 Turn off the display function setting 21 HDMI 1080p video playback... - Page 6 EBOX-335xDX3 Series User Manual Chapter DMP Electronics Inc.
-
Page 7: Unpacking Ebox Mini Pc
EBOX-335xDX3 Series User Manual Unpacking EBOX Mini PC Component List: Item No. Description Quantity EBOX-335xDX3 Series Mini PC Power supply 10W; Vin: 100~240V AC 50~60Hz + USB to MICRO USB cable Power plug (available US, UK, EU, AU types) 75 x 75mm to 100 x 100mm VESA mounting rack (Optional) Note: The accessories are subject to change without immediate notice. - Page 8 EBOX-335xDX3 Series User Manual Preface EBOX-335xDX3 Series Mini PC EBOX-335xDX3 Series is a revolutionary device especially designed for limited space and temperature concerns. No matter you are in a jammed office, a crowded place, or public transportation, EBOX can be easily integrated with a VESA LCD to bring it to access at any time.
- Page 9 EBOX-335xDX3 Series User Manual Chapter DMP Electronics Inc.
-
Page 10: Ebox-335Xdx3 Series Overview
EBOX-335xDX3 Series User Manual EBOX-335xDX3 Series Overview Front Panel A: Reset Button System reset or turn on use B: LED indicator Blue LED light indicates system power Red LED light indicates SD card activation C: Audio Line Out Audio output D: Audio Mic In Microphone input E: USB 2.0 ports... -
Page 11: Ebox-335Xdx3-Rca Series Overview

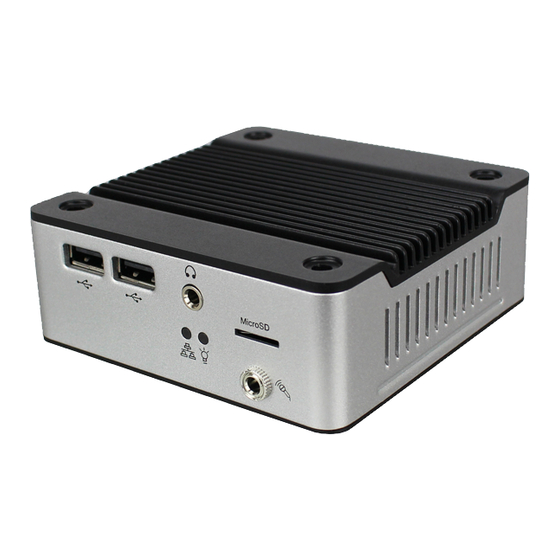

EBOX-335xDX3 Series User Manual EBOX-335xDX3 RCA Series Overview Front Panel A: Micro SD Card Slot System support bootable from Micro SD Card B: Audio Mic in Microphone input C: Audio Line Out Audio output to speaker D: Power LED LED lights up when system is turned on E: Internet LED LED lights up when system is connected to internet F: USB 2.0 ports... -
Page 12: System Specifications
EBOX-335xDX3 Series User Manual System Specifications Power consumption EBOX-335xDX3 Series: DC +5V/2A Vortex86DX3 Dual core (1GHz) EBOX-335xDX3-RCA Series: DC +5V/1.5A *Windows platform 64-bit not support Supported Operating system Main Memory Windows 7 Home/Pro 1GB DDR3 (32-bit DRAM bus, EBOX-3350DX3 Series) Windows 7 Embedded 2GB DDR3 (32-bit DRAM bus, EBOX-3352DX3 Series) Windows XP Home/Pro... -
Page 13: Sd Card Recommendation
EBOX-335xDX3 Series User Manual SD/ Micro SD card recommendation To use Class 10 SD card is highly recommended. EBOX-335xDX3 Series support SD and SDHC only (SDXC not support). Users may use SDXC on EBOX, however, it will be recognized as SDHC and capacity support up to 32GB only. Test environment: Products: EBOX-335xDX3 Series SD card: Kingston Canvas Select SDXC UHS-I 64GB Class 10... - Page 14 EBOX-335xDX3 Series User Manual Chapter DMP Electronics Inc.
-
Page 15: Bios Reconfiguring
EBOX-335xDX3 Series User Manual BIOS Reconfiguring 1. To reconfigure the hardware, press the <Del> key to enter the BIOS setup main menu as below: 2. Press <Esc> to go back to main menu. 3. Press <F9> to load factory default setting. 4. -
Page 16: Drivers Installation Guide
EBOX-335xDX3 Series User Manual Drivers Installation guide Under the Windows series OS, the following drivers need to be installed manually. M2015 R7 VGA driver Ethernet driver USB Wireless LAN Dongle driver (Optional) Audio driver (for windows XP only) Note: Please download drivers from EBOX website. For Windows 7 or Windows 7 Embedded OS, install XMPlay for audio player, download here. - Page 17 EBOX-335xDX3 Series User Manual Ethernet driver: 1. Find the yellow question mark of Ethernet in the Device Manager under the control panel/ system. 2. Select “Update Driver Software” and choose the right path, then click “Install this driver software anyway” when Windows Security popped out.
- Page 18 EBOX-335xDX3 Series User Manual Audio driver: Unzip the downloaded file and double click the setting .exe file, then “Next” as below to install. After the installation completed, the Device Manager will update and show the correct device. DMP Electronics Inc.
-
Page 19: Additional Information
EBOX-335xDX3 Series User Manual Additional information Screen rotation: After VGA driver installation completed, type “Customize icons” in search bar. Adjust Utility Application to “Show icon and notifications”. A blue icon = Graphic Utility appears on screen, double click it. 4. In Graphic Utility, go to Rotation section. Select the direction of rotation then press Apply to test and OK to save the changes. -
Page 20: Turn Off The Display Function Setting
EBOX-335xDX3 Series User Manual Turn off the display function setting: For Win 7 or Win 7 Embedded OS users, click Start Menu > Control Panel > Power Options or simply search for "Power Options" (without quotes). You will see a list of different power plans. The plan currently in use has a blue dot in front of it. -
Page 21: Hdmi 1080P Video Playback
EBOX-335xDX3 Series User Manual HDMI 1080p video playback: For windows platform (Windows 7, WES7, XP, XPe): Click here to download 1080p video specific use media player DMP_mpc-hc_R7. In media player DMP_mpc-hc_R7 full screen mode, adjust screen with keyboard pad number “8” to increase or “2”... -
Page 22: Pxe Diskless Boot Setting
EBOX-335xDX3 Series User Manual PXE Diskless boot setting: 1. Boot up EBOX unit and press <Del> to get into BIOS menu. 2. Select “Boot” then move to “Boot Settings Configuration” and press ENTER. 3. Move to “Boot From LAN” and choose “Used INT 19h” then press “F10” to save setting and exit. DMP Electronics Inc. -
Page 23: Linux Installation
EBOX-335xDX3 Series User Manual Linux installation For Debian7.0/ Ubuntu10.04 Regarding the system installation of Debian7.0/Ubuntu10.04, please follow the steps and suggestions to complete the system installation on the EBOX-335xDX3 Series. The following is a brief instruction; users may configure it according to their specific needs. 1. - Page 24 EBOX-335xDX3 Series User Manual During installation, system would ask users to create partitions for the operating system. Following example is using entire disk for the beginner. Choose “Guided - use entire disk”. Select “Yes” to create the partition. ...
- Page 25 EBOX-335xDX3 Series User Manual For Install the GRUB boot loader on a hard disk: Answer YES to complete the installation as last procedure. When it's completed, the disc tray will eject, press continue to restart and be ready to enjoy! The Debian7.0 The Ubuntu10.04 DMP Electronics Inc.
- Page 26 EBOX-335xDX3 Series User Manual Install the VGA driver (Console mode) Switch to console mode by pressing key <Ctrl> + <Alt> + <F1>, then copy the VGA driver rdc_drv.so to the driver folder /usr/lib/xor/modules/drivers/, refer to EBOX download page for most updated drivers. ...
- Page 27 EBOX-335xDX3 Series User Manual The system configuration Enable the Auto login System / Administration / Login Screen Execute the utility “Login Screen” and enter the password to process it. Set the Log in as “user account” automatically. Disable the power saving mode when system idle, System / Preference / Screensaver Unmarked the option “Active the screensaver when computer is idle”.
- Page 28 EBOX-335xDX3 Series User Manual Chapter DMP Electronics Inc.
-
Page 29: Onboard Connectors Summary
EBOX-335xDX3 Series User Manual Onboard Connectors Summary Summary Table for CPU Board Nbr. Description Type of Connections Pin nbrs. D-Sub connector 15-pin mPCIe mPCIe socket 52-pin DC +5V Input Micro USB B Type 5-pin SATA SATA socket 7-pin Line out Audio Jack 2-pin Mic in... -
Page 30: Pin Assignments
EBOX-335xDX3 Series User Manual Pin Assignments J3: VGA – 15-pin D-Sub connector Pin # Signal Name Pin # Signal Name Pin # Signal Name HYSYNC VSYNC J4: Micro-B USB DC Power Input Pin # Signal Name Data -- Data + J7, J8: USB 2.0 (180 ) –... - Page 31 EBOX-335xDX3 Series User Manual J13, J14: RS-232 9-pin D-Sub connector Pin # Signal Name Pin # Signal Name J8, J9: RCA Connectors/ Stereo sound output Center Shell Signal receiver J18: HDMI Pin # Signal Name Pin# Signal Name DATA2+ DATA2_Shield DATA2- DATA1+ DATA1_Shield...
- Page 32 EBOX-335xDX3 Series User Manual Chapter DMP Electronics Inc.
-
Page 33: Taking Care Of Ebox
EBOX-335xDX3 Series User Manual Taking Care of EBOX This section provide guidelines on using EBOX-335xDX3 Series – Safe using, Storing and Handling. Storing Do not place EBOX in a location that is subject to: Heating sources, such as stove, oven, heater, radiator or air duct ... - Page 34 EBOX-335xDX3 Series User Manual Cleaning EBOX Clean EBOX with a soft, dry cloth or a soft cloth lightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzene, as these may damage the finish of EBOX.
-
Page 35: Troubleshooting
EBOX-335xDX3 Series User Manual Troubleshooting This section describes the techniques of resolving some basic problems that you encounter when using EBOX. For more troubleshooting guidelines, please contact your nearest dealer for technical support. Troubleshooting EBOX A. EBOX does not start – Make sure EBOX is properly secured and plugged into a power source before it is turned on. - Page 36 EBOX-335xDX3 Series User Manual (BIOS Setup menu “Exit”) C. “Operating System Not Found” – A message indicating “Operating system not found” appear when unit starts (Windows won’t start) Enter BIOS setup main menu by pressing <DEL> key, be sure that the C: drive is enable. If Windows still does not start, follow these steps to initialize the BIOS: 1.
- Page 37 EBOX-335xDX3 Series User Manual Chapter DMP Electronics Inc.
-
Page 38: Warranty
EBOX-335xDX3 Series User Manual Terms and Conditions Warranty The warranty terms for EBOX are twelve (12) months from the shipped month. During the warranty period, DMP Electronics will repair replace the product covered under this limited warranty. Service and Support DMP Electronics Inc.
