- Page 1 User's manual SMSB242/ SMSB482 SMS Switch Butler V102 20/10/2020...
-
Page 2: Table Of Contents
Table of contents Qualified personnel ......................................4 Liability Disclaimer ......................................4 Comments ........................................5 Safety instructions ......................................6 Installation.......................................... 6 Environmental conditions ....................................6 Protection class ....................................... 6 Supply ..........................................6 Digital and analogue inputs .................................... 6 Relay outputs ........................................6 Dimensions ......................................... - Page 3 Power failure notification: ..................................19 Periodic status message: .................................... 19 SMS commands........................................ 20 Special commands ......................................20 Stop sequential mode ..................................... 20 Activation without reply ....................................20 Preventing the sending of the signal strength ..............................20 Software requirements ....................................21 Technical data ........................................
-
Page 4: Qualified Personnel
The product has been tested on operating systems such as Windows 7, 8 and 10. Before installing the software, the User should take care to check the data tariff with their mobile service provider. Elbro will not accept liability under any circumstances for the costs charged by mobile telephone operators in cases of repeated sms transmissions or repeated GPRS data connections by the device. -
Page 5: Comments
Comments • All information contained in this document can be changed without prior notification. • The duplication of this manual is, depending on the respective technology and means used for this purpose, both electroni- cally and physically, including photocopies or saving, are only permitted to the user for personal use and prohibited in all other cases without special written authorization. -
Page 6: Safety Instructions
Safety instructions • The SMSB242/SMSB482 contains the latest generation of GSM quad-band module. The instructions contained in this manual must be precisely observed for correct installation and proper use. • Do not install the SMSB242/SMSB482 in the vicinity of pacemakers, hearing aids or medical devices in general. The SMSB242/SMSB482 can interfere with the correct operation of these devices. - Page 7 • Use the same voltage level for all relays: With high-voltage circuits, only the phase conductor may be connected via the re- lay contacts.
-
Page 8: Dimensions
Dimensions 30° 4,59 mm Interfaces SMSB482 ONLY GPRS Mo Tu We Th Fr Sa Su RE1 RE2 RE3 RE4 IN1 IN2 IN3 IN5 IN6 IN7 1. Relay outputs 2. SMA antenna connection (female) SMSB482 3. Mini-USB B port 4. Micro SD card slot 5. -
Page 9: Wiring Diagram
Wiring diagram Infeed, relay outputs and digital inputs SAMPLE ELECTRICAL CONNECTION For each relay, the output maximum current is 5A. Total sum must not exceed 10A at 250V~ SMSB482 LOAD1 LOAD2 LOAD3 LOAD4 NC COM NO NC COM NO NC COM NO NC COM NO 85÷265V~ RELAY 1... -
Page 10: Gsm Antenna Connection

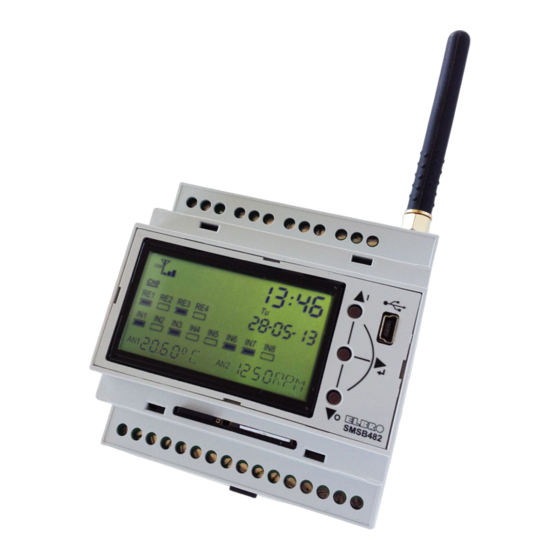

What is the SMSB242/SMSB482? Elbro AG developed the SMSB242/SMSB482 to meet the widest range of customer requirements. It is an innovative tool for the remote control of private and industrial applications via the GSM network. This new system enables remote activation of up to four devices (up to two for SMSB242) and the monitoring of up to eight alarms (up to four for SMSB242) by means of simple SMS commands. -
Page 11: Smsb242/Smsb482 Interface
SMSB242/SMSB482 interface SIM: SMS: MSD: ERR: RTC: visibile quando indica l'invio o indica scrittura indica uno stato indica data e ora la sim è inserita ricezionde di SMS su micro SD di errore per datalogger GSM: USB: indica il livello connettore del segnale ed mini-usb... -
Page 12: Software Description
Software description System status Figure 1: System status Synoptic: This panel displays the SMSB242/SMSB482 system status on the PC. Every device information is gathered here, such as the input status, output status, GSM signal level, etc.. Date/time: The system date can be updated in this screen; the system date is synchronized with the operating system (Windows). Date and time are only used for the datalogger function. -
Page 13: Sim Settings
Butler to pre-defined e-mail users. However Elbro cannot guarantee the delivery of e-mails and is not responsible in case of disruptions. Elbro reserves the right cancel this free service to unilaterally at any time and with- out notice. -
Page 14: Users List
Users list Figure 2: List of users System password: In order to ensure the system safety, the device prompts the operator to enter a four-digit password to be able to send SMS commands. The default password is made up of four zeroes (0000). Please refer to the SMS commands section to get an overview of all available commands. -
Page 15: Possible Boiler Block Or Current Drop, As Well As A Valve Opening, Etc
Digital inputs Figure 3: Digital inputs Digital inputs allow the user to know specific events regarding the system or the equipment to which the device is connected, such as a possible boiler block or current drop, as well as a valve opening, etc. SMSB242/SMSB482 has eight alarm inputs (four for SMSB242), each of which allows sending to specific users an SMS when the contact is either opened or closed. -
Page 16: Analog Inputs
Analog Inputs Figure 4: Analogue inputs The SMSB242/SMSB482 has two analogue alarm inputs that can be configured in 0-10V, 0-20mA, PT100 and PT1000 with which text messages can be sent to a maximum of eight users when a threshold is exceeded. Two different thresholds can be set for each input. -
Page 17: Relays
Relays Figure 5: Relays The relays can be manually switched by call function or via SMS. When sending an SMS command for switching on or off, the SMSB242/SMSB482 responds with a (customizable) text message. On this mask the message text for each relay can be individually configured. Response message: The relay can only be controlled by SMS commands. -
Page 18: Call Function
Call function Figure 6: Call function The device is able to store a list of phone numbers with their relevant names (max 300) that are authorized to activate and/or deactivate the relay output 1 with a simple phone ring at no cost. The device detects the incoming call and immediately hangs up, activating at the same time the system it is connected to. -
Page 19: Notifications
Notifications Figure 7: Notification SMS Power failure notification: This feature allows selected users to receive a notification message when there is a power failure (power drop) and/or when power is restored. To perform this function, the device is equipped with two super-capacitors; they require at least 30 minutes charging before any SMS can be sent. - Page 20 To prevent the butler from printing the signal strength for outgoing messages, the code {-S} must be added at the end of each text field. This function is used especially for the communication between remote switchgears of the company ELBRO AG, in...
- Page 21 Relay switching: 500mA 300mA Declaration of conformity ELBRO AG herein declares that the product SMSB242/SMSB482 complies with the essential requirements and with the other relevant provisions of Directive 199/5/EC, and specifically: EN 301 489-7 V1.1.1 (2000-09) EN 301 511 V7.0.1 (2000-12)
