ELBRO BUTLER - full control from everywhere and at all times!
Remote switching: Switching devices on or off throughout the world
▪
Remote control: Monitoring of devices and systems
▪
Alerting: Alerting different persons simultaneously via SMS or email
▪
Remote access: 24/7 access to the switching state, temperature and air humidity via SMS
▪
▪
Activation: Very easy, thanks to the intuitive app for Android and iOS
switchButler
Instruction manual English V1.0
Advertisement
Table of Contents
Related Manuals for ELBRO switchButler SMSB242BW
Summary of Contents for ELBRO switchButler SMSB242BW

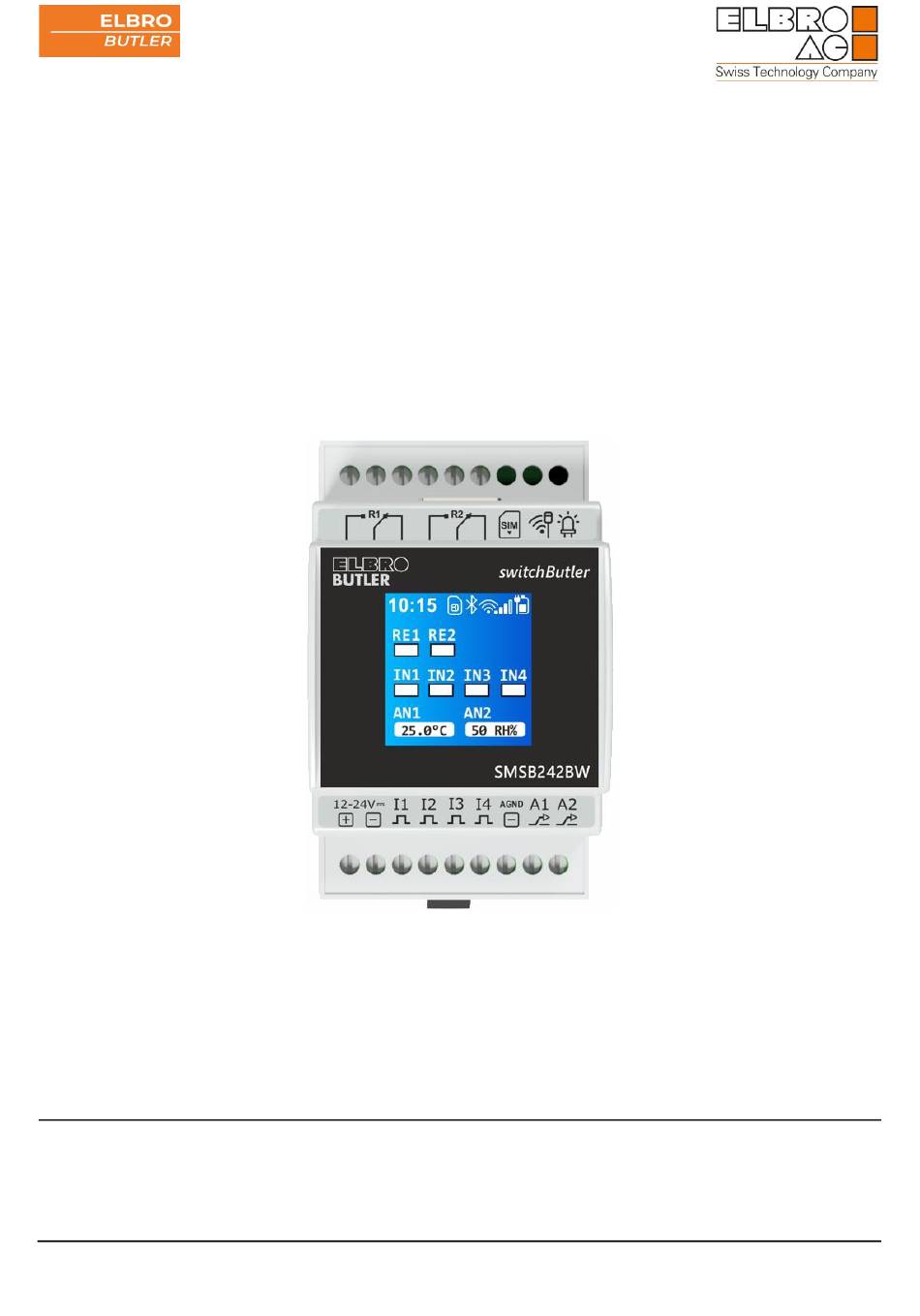

- Page 1 SMSB242BW Instruction manual English V1.0 ELBRO BUTLER - full control from everywhere and at all times! Remote switching: Switching devices on or off throughout the world ▪ Remote control: Monitoring of devices and systems ▪ Alerting: Alerting different persons simultaneously via SMS or email ▪...
-
Page 2: Table Of Contents
Reset to factory settings ..........................................22 19.8 Automatic function ............................................23 19.9 Call function ................................................. 24 Manual operation ............................................25 Technical data ..............................................25 21.1 Revision history..............................................27 ELBRO AG Steinackerstrasse 5 CH-8180 Bülach info@elbro.com www.elbro.com ● ● ● ●... -
Page 3: Warning Notice Concept
(including negligence) arising from or in connection with the use or the impossibility of use of the product, even if the possibility of such damage has been pointed out to ELBRO AG. ELBRO AG, its subsidiaries, affili- ated companies or group companies, and the distributors and resellers of ELBRO AG do not guarantee that the device will reliably function in accord- ance with your expectations and that the corresponding firmware and software are free from defects and will work continuously. -
Page 4: Returns
For commercial returns, the requirements defined in our terms of business (AGB) shall apply. Please consult our website to view our detailed return policy. Repairs to the device must only be performed by ELBRO. Return defective devices to your dealer. Returns for repair by ELBRO will only be taken into consideration if a comprehensive report on the fault and a receipt proving the purchase of the device within the warranty period are pro- vided to us. -
Page 5: Supply
SIM card. Place the SIM card in the tray holder and re-insert it into the slot. Please note that the SIM card can only be inserted in one direction as shown in the illus- tration. ELBRO AG Steinackerstrasse 5 CH-8180 Bülach info@elbro.com... -
Page 6: Scope Of Supply

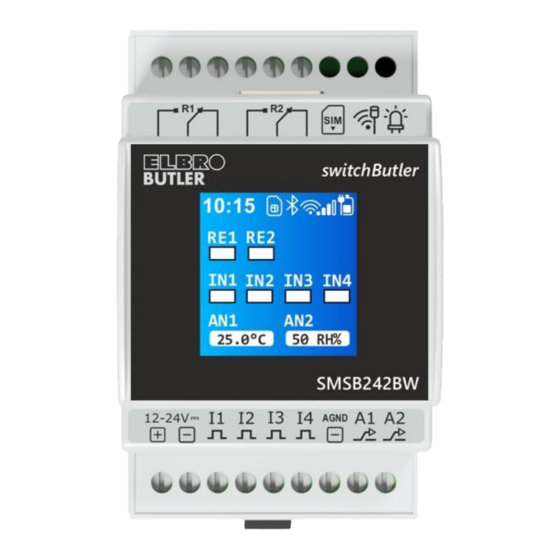

11 Scope of supply ELBRO No. SMSB242BW E-No. 539 110 260 EAN No. 7611664192753 Description switchButler Wi-Fi & Bluetooth 2/4/2 channels, GSM/UMTS/LTE. Scope of supply • SMSB242BW remote control unit • Ejector pin • Tray holder for nano SIM card (4FF) •... -
Page 7: Accessories
E-No. 960 900 339 E-No. 960 900 139 SMSBA1,3E SMSBAI-020M E-No. 539 191 060 E-No. 954 876 156 ELBRO No. E-No. Description Power supply units & batteries SMSBNE12-01 960 900 339 Power supply unit DIN rail mounting 230 VAC /12 VDC / 1 A... -
Page 8: Dimensions
15 Dimensions ELBRO AG Steinackerstrasse 5 CH-8180 Bülach info@elbro.com www.elbro.com ● ● ● ●... -
Page 9: Interfaces
SIM slot for nano SIM card (4FF) with tray holder, insertion as specified in chapter 10.1.2 MMCX antenna connection for extending the antenna using an SMSBAI-020M adapter 4. Clamps 15 x 12 to 24 (AWG) 0.2 to 3.3 mm² ELBRO AG Steinackerstrasse 5 CH-8180 Bülach info@elbro.com www.elbro.com ●... -
Page 10: Installation Diagram
17 Installation diagram Zero-potential, mechanical contact, e.g. pressure switch, temperature Voltage output contact, e.g. PLC. switch, limit switch, push button, relay output ELBRO AG Steinackerstrasse 5 CH-8180 Bülach info@elbro.com www.elbro.com ● ● ● ●... -
Page 11: Analog Inputs
However, if you wish to program these functions, please download the app for your Android or iOS smartphone. Please connect your SMSB242BW to the power supply unit/the power supply as specified in the instructions. iOS devices require at least an iPhone 7 for programming! ELBRO AG Steinackerstrasse 5 CH-8180 Bülach info@elbro.com... -
Page 12: Registration
“Received Signal Strength Indicator” (indicator for the received signal strength) - the lower the value, the better the connection. To view the demo version, click on the top orange bar 10x ELBRO AG Steinackerstrasse 5 CH-8180 Bülach info@elbro.com www.elbro.com... -
Page 13: System Status
If you use a prepaid SIM, you can activate the credit query function to continuously monitor your current costs. Query code prepaid credit Swisscom *130# Sunrise *121# Yallo *123# Salt Service is not supported ELBRO AG Steinackerstrasse 5 CH-8180 Bülach info@elbro.com www.elbro.com ● ● ● ●... -
Page 14: User List
In the case of voltage-related events Periodic status message • Notification on the status at regular time intervals Wireless sensors • In the case of a temperature or hu- midity alarm ELBRO AG Steinackerstrasse 5 CH-8180 Bülach info@elbro.com www.elbro.com ● ● ● ●... -
Page 15: Alarms And Functions
Additionally, the voltage supply can be monitored. This function is useful in particular for systems separated from the network such as self-sufficient traffic surveillance systems. In this way, for example, a 12 V battery supplied by a photovoltaic system can be monitored. ELBRO AG Steinackerstrasse 5 CH-8180 Bülach info@elbro.com www.elbro.com... -
Page 16: Periodic Status Message
Activate Wi-Fi and enter the SSID and the password for the network. It is mandatory to fill in the password field. The Wi-Fi settings are only required for Internet services like for example a firmware update. ELBRO AG Steinackerstrasse 5 CH-8180 Bülach info@elbro.com... -
Page 17: Wireless Accessories
To do so, please click on the moving symbol at the top right of the screen. Confirm the message shown with OK. After the save process has been completed, the symbol disappears. ELBRO AG Steinackerstrasse 5 CH-8180 Bülach info@elbro.com... -
Page 18: System
Internet. A mobile phone hotspot can also be used for this purpose . Then select "Check update" and your device will check automatically whether new firmware is available. The system update is also possible manually via the input on the control panel ELBRO AG Steinackerstrasse 5 CH-8180 Bülach info@elbro.com www.elbro.com ●... -
Page 19: Sms Commands
Pulse function relay 1 execute 5s 0000#R1#P [PASSWORD]#R2#P Pulse function relay 2 execute 5s 0000#R2#P [PASSWORD]#R3#P Pulse function relay 3 execute 5s 0000#R3#P [PASSWORD]#R4#P Pulse function relay 4 execute 5s 0000#R4#P ELBRO AG Steinackerstrasse 5 CH-8180 Bülach info@elbro.com www.elbro.com ● ● ● ●... -
Page 20: Status Query
0000#D1#STATUS [PASSWORD]#D2#? 0000#D2#? Query status digital input 2 [PASSWORD]#D2#STATUS 0000#D2#STATUS [PASSWORD]#D3#? 0000#D3#? Query status digital input 3 [PASSWORD]#D3#STATUS 0000#D3#STATUS [PASSWORD]#D4#? 0000#D4#? Query status digital input 4 [PASSWORD]#D4#STATUS 0000#D4#STATUS ELBRO AG Steinackerstrasse 5 CH-8180 Bülach info@elbro.com www.elbro.com ● ● ● ●... -
Page 21: Analog Inputs
0000#A2#STATUS 19.5 Voltage supply Command Description Example Notes Status query [PASSWORD]#V#? 0000#V#? Status query power supply [PASSWORD]#V#STATUS 0000#V#STATUS Activation [PASSWORD]#V#ON Voltage supply 0000#V#ON Deactivation [PASSWORD]#V#OFF Voltage supply 0000#V#OFF ELBRO AG Steinackerstrasse 5 CH-8180 Bülach info@elbro.com www.elbro.com ● ● ● ●... -
Page 22: User Input (Coming Soon)
Analog input 1 Analog input 2 Power failure alert Periodic Wireless accessories status message 19.7 Reset to factory settings Command Description Example Notes [PASSWORD]#FACTORY Reset to factory settings 0000#FACTORY ELBRO AG Steinackerstrasse 5 CH-8180 Bülach info@elbro.com www.elbro.com ● ● ● ●... -
Page 23: Automatic Function
Activates the automatic function of relay 3 in accordance [PASSWORD]#R3#A#[ZAHL] 0000#R3#A#10 with the specified value of 10°C Activates the automatic function of relay 4 in accordance [PASSWORD]#R4#A#[ZAHL] 0000#R4#A#10 with the specified value of 10°C ELBRO AG Steinackerstrasse 5 CH-8180 Bülach info@elbro.com www.elbro.com ● ● ●... -
Page 24: Call Function
Call function relay 1 [PASSWORD]#R1#CALL#OFF 0000#R1#CALL#OFF [PASSWORD]#R2#C#OFF 0000#R2#C#OFF Call function relay 2 [PASSWORD]#R2#CALL#OFF 0000#R2#CALL#OFF [PASSWORD]#R3#C#OFF 0000#R3#C#OFF Call function relay 3 [PASSWORD]#R3#CALL#OFF 0000#R3#CALL#OFF [PASSWORD]#R4#C#OFF 0000#R4#C#OFF Call function relay 4 [PASSWORD]#R4#CALL#OFF 0000#R4#CALL#OFF ELBRO AG Steinackerstrasse 5 CH-8180 Bülach info@elbro.com www.elbro.com ● ● ● ●... -
Page 25: Manual Operation
15 x 12 to 24 AWG (0.518 to 2.08 mm²), stripping length 6-7 mm, 0.5 Nm Power supply Supply voltage: 12÷24V DC; extended 9÷30V DC Current: I = 1000 mA Power supply with reverse polarity protection and short circuit protection ELBRO AG Steinackerstrasse 5 CH-8180 Bülach info@elbro.com www.elbro.com ●... - Page 26 • UL approval UL 94 Protection class II • Declaration of conformity ELBRO AG hereby declares that the product SMSB242BW complies with the fundamental requirements and other relevant provisions of the RED Directive. ELBRO AG Steinackerstrasse 5 CH-8180 Bülach info@elbro.com www.elbro.com...
-
Page 27: Revision History
21.1 Revision history Revision Description Chapter Date Creation 30/01/2023 ELBRO AG Steinackerstrasse 5 CH-8180 Bülach info@elbro.com www.elbro.com ● ● ● ●...
