VERSION
# 20-08-0 7
1 / 7
MODEL #
CM-AC354
CM-AC357
CM-AC358
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
2 - People
Recommended
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
Advertisement
Related Manuals for Furniture of America CM-AC354
Summary of Contents for Furniture of America CM-AC354

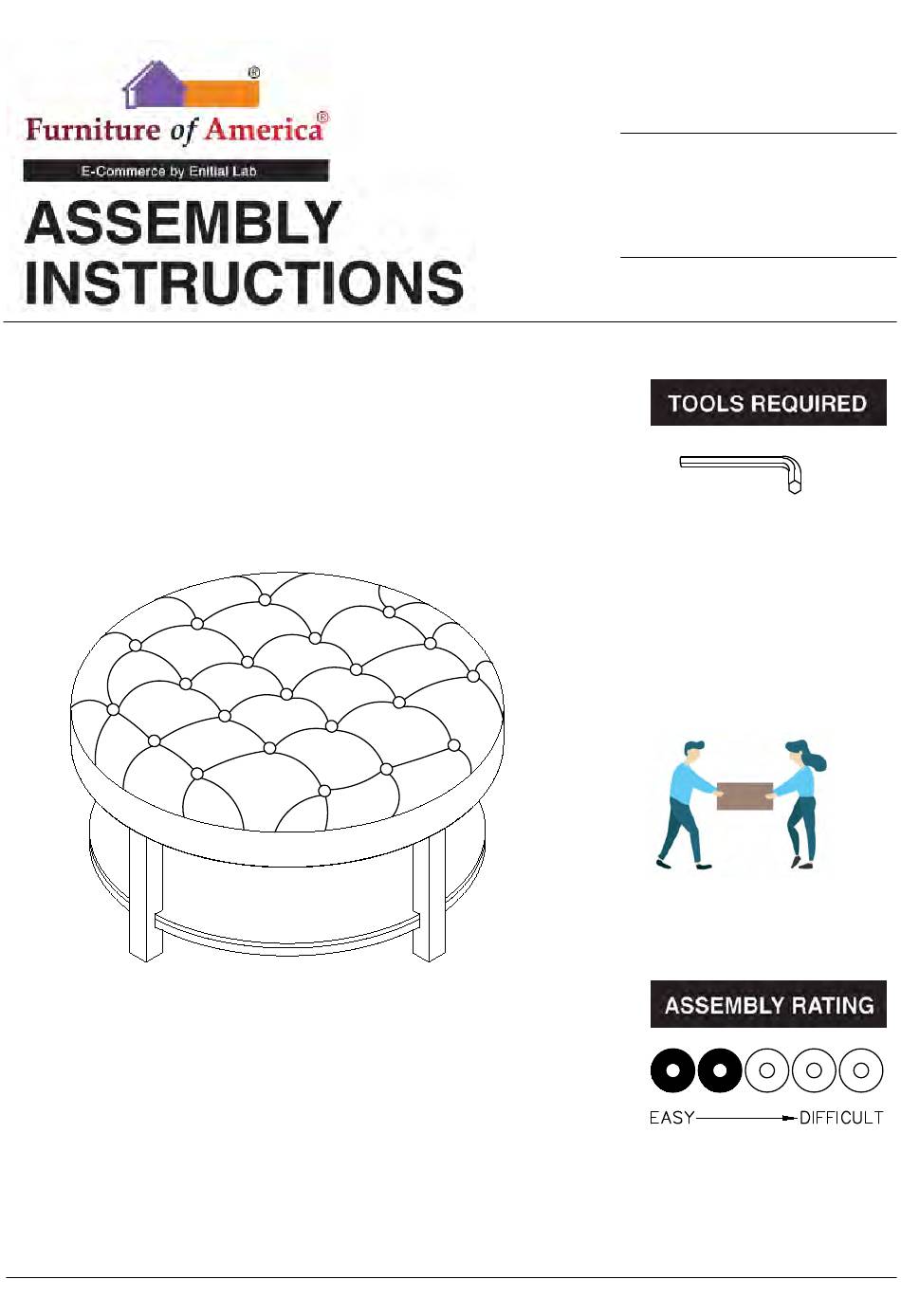

- Page 1 MODEL # CM-AC354 CM-AC357 CM-AC358 Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) 2 - People Recommended The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / 7...

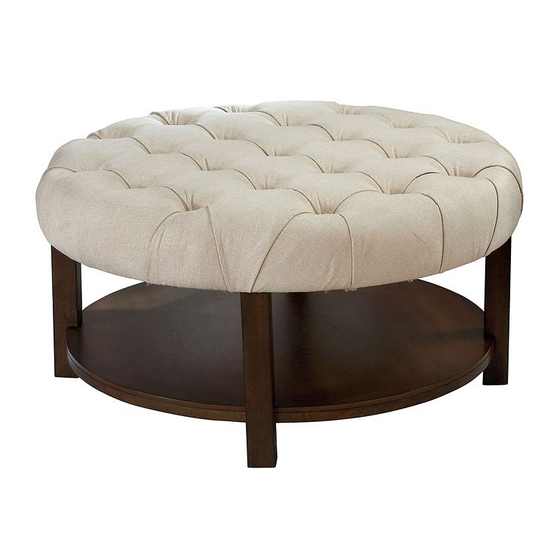

- Page 5 ROUND OTTOMAN CM-AC354/CM-AC357/CM-AC358 #4 1pc #3 4pcs #1 1pc #2 1pc Seat Bottom frame Non-wovenfabric #A 12pcs #B 12pcs #C 12pcs #D 1pc Bolt Ø5/16"x1-1/2" Lock washer Flat washer Allen key M4 Ø5/16" Ø5/16" 5 / 7...
- Page 6 ASSEMBLY INSTRUCTIONS Open the woven fabric (#4) at the bottom of the seat (#1) to find parts. Part #1 x 1pc Part #3 x 4pcs Part #4 x 1pc Hardware #A x6pcs Hardware #B x6pcs Align three legs (#3) to the seat (#1), then secure by Hardware #C x6pcs using bolts (#A) with washers (#B,C).
- Page 7 ASSEMBLY INSTRUCTIONS Align bottom frame (#2) and last leg Part #2 x 1pc to the unit, then secure by using Hardware #A x6pcs bolts (#A) with washers (#B,C). Hardware #B x6pcs Hardware #C x6pcs Attach woven fabric (#4) to bottom of seat.
