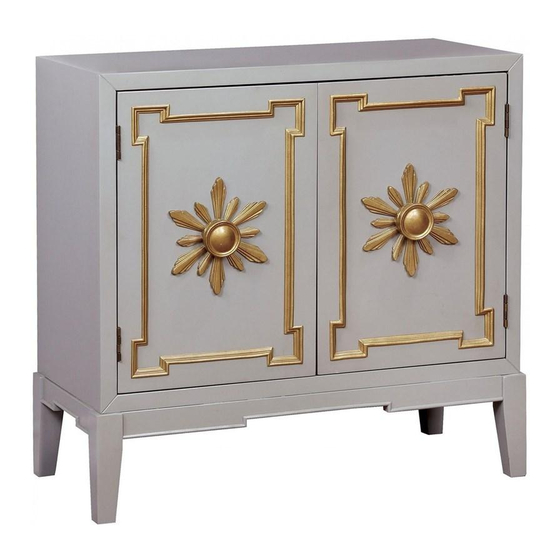

Furniture of America CM-AC304 Assembly Instructions

For more information contact our team :service.ec@foagroup .com

ASSEMBLY RATING

The Assembly Rating is a 5-point system that

shows the degree of effort needed in

assembling a specific product (with 1 being

easy and 5 being difficult). For some

products, two persons are recommended.

EASY

CM-AC304

DIFFICULT

Tools Required For Assembly:

Allen Wrench

Phillips Screwdriver

2 PERSONS RECOMMENDED

Page 1 of 4

(Included)

(Not Included)

Rev: 16-12-06

Table of Contents

Do you have a question about the CM-AC304 and is the answer not in the manual?

Page 1 Assembly Instructions For more information contact our team :service.ec@foagroup .com CM-AC304 ASSEMBLY RATING Tools Required For Assembly: The Assembly Rating is a 5-point system that Allen Wrench shows the degree of effort needed in (Included) assembling a specific product (with 1 being easy and 5 being difficult).
Page 2 LOOSEN OVER TIME AND MAY CAUSE THE FURNITURE TO BE WOBBLY AND UNABLE TO SUPPORT ITS INTENDED WEIGHT CAPACITY. THIS MAY LEAD TO COLLAPSE AND MAY CAUSE SERIOUS INJURY. FAILURE TO FOLLOW THE GUIDELINES ABOVE MAY RESULT IN INJURY AND/OR PROPERTY DAMAGE. FURNITURE OF AMERICA.ALL RIGHTS RESERVED. Page 2 of 4...
Page 3 Before you begin, please read Page 2 of "Assembly and Care Advice". And remember, do not tighten until each step is completed or instructed. #1 x 1pc #A x 8pcs Bolt Ø5/16"x2" Cabinet #2 x 4pcs #B x 8pcs Lock Washer Ø5/16" #Cx 8pcs Flat Washer Ø5/16"...
Page 4 Prepare 8 bolts assembly by inserting lock washer (#B), then flat washer (#C) onto bolts (#A). Align legs (#2) to the holes located at the bottom corners of the cabinet (#1). Secure with bolts (#A). #A x 8pcs #B x 8pcs #C x 8pcs Place shelf on the shelf holder, then secure the shelf with screws.
