Marantz SD4050 Specifications

• Autoreverse Twin-deck Design Allows
Continuous Play and Record (Deck B) from
One Loaded Tape to Another
• Super-Hard Permalloy Heads and Anti-resonant
Front Panel Ensure Faithful Reproduction with
Wide Dynamic Range and Minimal Wow and
Flutter
FEATURES
Transport
Auto Reverse
DC Servo Control
Super-Hard Permalloy Head
2-Speed Syncro Reverse Dubbing
Automatic Tape Selector
Dolby HX-Pro
Noise Reduction Dolby B & C
Quick Music Search
Auto Continuos Play
Timer Record & Play
IN/OUTPUTS
AUDIO
Analog L&R In (Line In)
Analog L&R Out (Line Out)
Headphone Out
SPECIFICATIONS
AUDIO SECTION
S/N Ratio 74 dB (3% THD)
Recording Bias 100kHz
Frequency Response (+/- 3 dB) 25Hz - 18kHz
Channel Separation
40 dB
Wow & Flutter < 0.09%
GENERAL
Color Black
Front Panel Brushed Plastic
Remote Control RC455SD
Power Requirements
AC 120V 60Hz
Power Consumption 16W
Dimension W x H x D (Inches) 17 / " x 4
5
16
Weight (lbs.)
*All specifications, dimensions and weights are subject to change without notice. D&M Holdings, Marantz, Marantz America, Inc. or any of its subsidiaries will not assume any liability for errors within this document.
Marantz America, Inc. • 1100 Maplewood Drive • Itasca, IL 60143 • Phone 630-741-0300 • Fax 630-741-0301 • www.marantz.com ©2005 Marantz America, Inc.

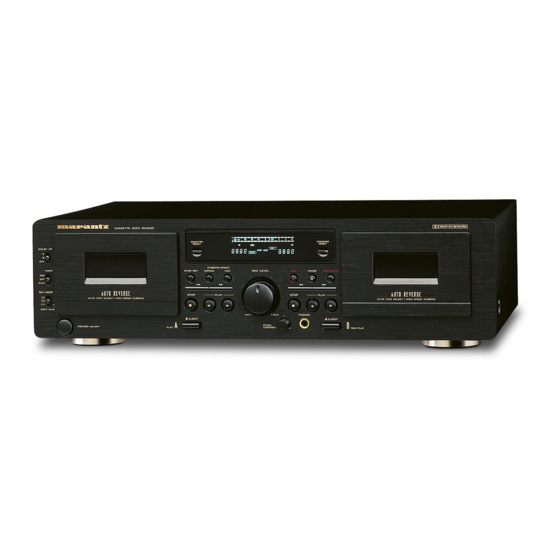

SD4050 Dual Well Cassette Deck
• Peak Level Read-out, Fine Bias Tuning and
Syncro Start of Tape and CD Ensure Accurate
and Professional Style Home Recordings
• One-touch Dubbing with
Hi-speed Option
• Dolby B/C Noise Reduction and Dolby HX-Pro
2
•
•
•
•
•
•
•
•
•
1
1
1
/ " x 11 / "
15 5
16 16
8.8
for Low Noise and Extended High Frequency
Response
• Manual Recording Level Allows User
Adjustment
• Pitch Control for Changing Key and Tempo
• Timer Option for Unattended Recording
