MT6100BTA
MT6100BTAL
1.

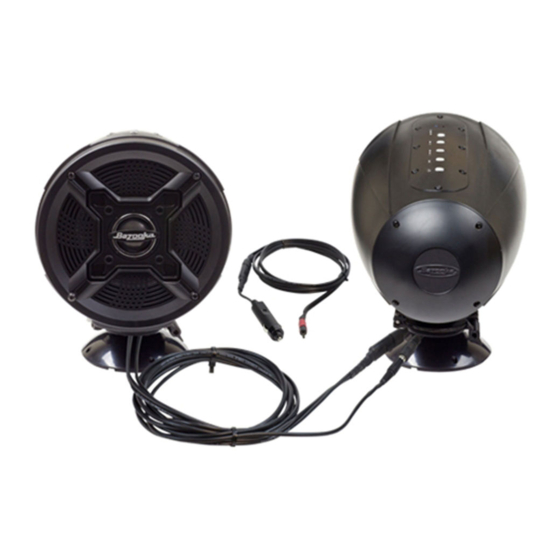

1. Active BT tubbie stand
2. Passive BT tubbie stand with 6 ft. cable
3. Passive BT tubbie
4. Amplified BT tubbie
5. 6 ft. power extention cable
Optional power adapter
for 110v AC to 12v DC
*Not Included*
7.
9.
8.
2.
3.
Unlatch nut (7) and clamp (8)
locking tabs. Then unscrew
wingnut (9).
8.
Line amplified tubbie (4) up
with the PCB mount on the top
of the tubbie stand (1). Then push
down firmly until clamp snaps in place.
Clamp locking tab (8)
be latched before tightening
wingnut (9)
4.
*MUST*
Tighten clamp wingnut (9).
Then close nut locking tab (7).
Then repeat steps to mount
passive tubbie (3) to passive
stand (2)
Installation Instructions
7.
9.
5.
Advertisement
Table of Contents
Related Manuals for Bazooka MT6100BTA
Summary of Contents for Bazooka MT6100BTA
- Page 1 MT6100BTA MT6100BTAL Installation Instructions 1. Active BT tubbie stand 2. Passive BT tubbie stand with 6 ft. cable 3. Passive BT tubbie 4. Amplified BT tubbie 5. 6 ft. power extention cable Optional power adapter for 110v AC to 12v DC...
- Page 2 Roll Bar / Wake Tower Mount (see page 1) (Not Included) To be able to use the MT6100BTA & MT6100BTAL with the bar mount clamps you will have to wire clamps in this configuration. Amplified tubbie...
- Page 3 MT6100BTA MT6100BTAL Button 1 Press to go back one track, Press and hold to decrease volume. Installation Instructions Button 2 Press to play/pause, Press to answer/hang up phone, Double press for last number radial or open Siri on Iphone, Press and hold to unpair bluetooth device.
- Page 4 Changes or modifications not expressly approved by the party responsible for compliance could void the users authority to operate this device Southern Audio Services 14763 Florida Blvd. Baton Rouge La. 70819 Model(s) purchased_______________________________________________________________________________ Serial number(s)__________________________________________________________________________________ Date Purchased___________________________________________________________________________________ Place of Purchase__________________________________________________________________________________ Contact: www.bazooka.com www.atvpowerrail.com www.customerservice@bazooka.com 1-800-843-8823 or 225-272-7135...
