Atron Systems CK Series Programming Instructions

Model: CK-Series Scales
1. Make sure that the scale is OFF and then turn the scale ON.
TARE
2. Press the key at any time during the Weight Display's count-up self-test.
3. The displays will then show:
0 0
4. Press , ,

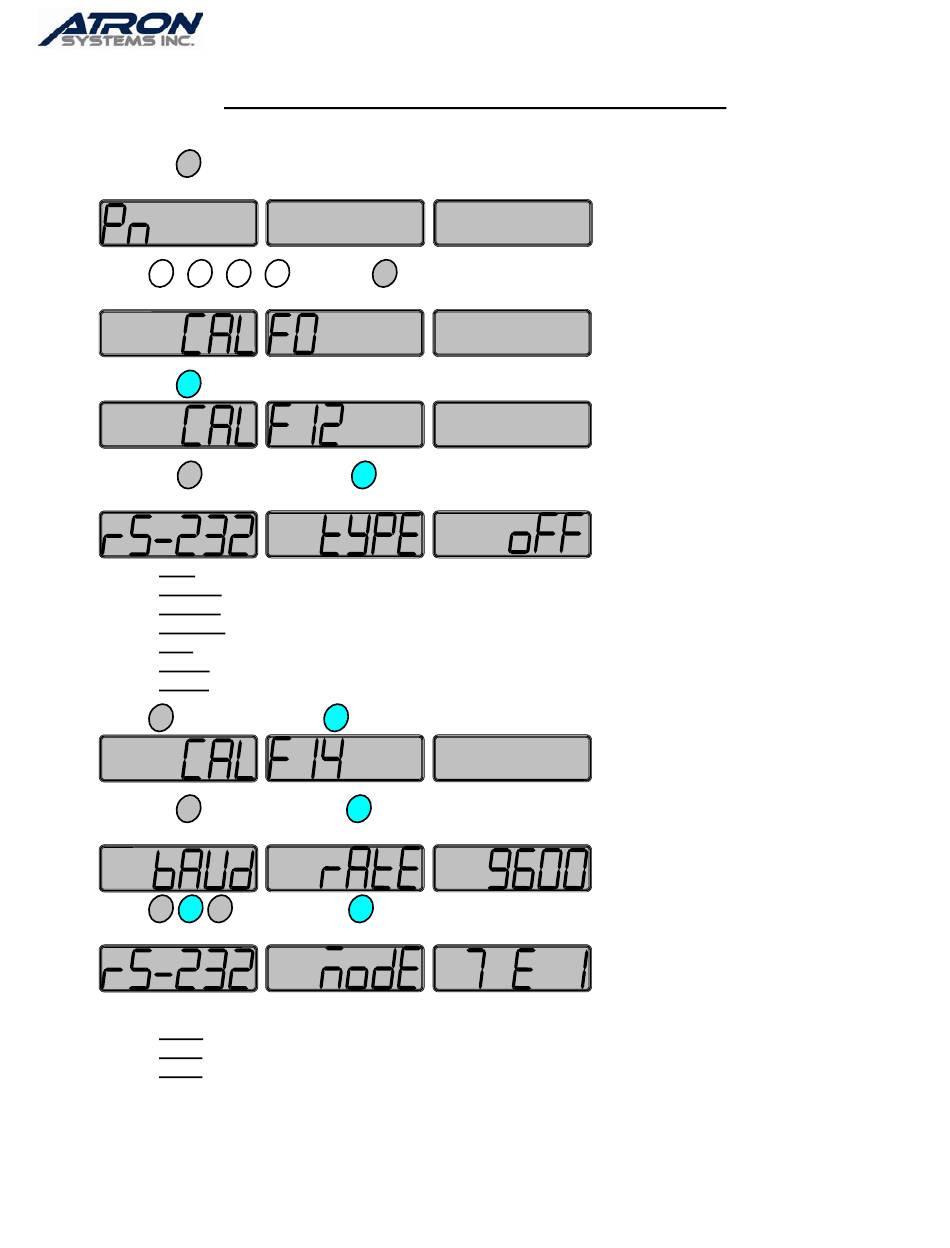

5. The displays should look like this:
4
6. Press the key (Speed Key 4) until the displays show:
TARE
7. Press the key. Now use the
can be oFF, toLEdo, nCi ECr, nCi GEn, tEC, EASY, or Printr. The screen looks like this (default is shown):
a. oFF: RS-232 is disabled.
b. toLEdo: Emulates Toledo 8213; used by many Sanyo, Casio, Sharp, Uniwell, Swintec, etc.
c. nCiECr: Emulates NCI / Weightronix ECR; used by Samsung, Sharp, Casio, etc.
d. nCiGEn: Emulates NCI / Weightronix General; used by many PCs and POS Systems.
e. tEC: Emulates TEC; used by TEC registers with RS-232 scale interface and many POS Systems.
f. EASY: Easy Weigh; used by all Easy Weigh software and products.
g. Printr: To connect scale to a serial printer; you must also follow CK-Series Printer Setup Instructions.
TARE
8. Press and then press the
TARE
9. Press the key. Now use the
4800, 9600, or 19200. The screen looks like this (default is shown):
4
TARE TARE
10. Press
be 7 E 1, 7 o 1, or 8 n 1. The screen looks like this (the default setting is shown here):
These settings are defined as follows:
a. 7 E 1: 7 Data bits, Even parity, and 1 Stop bit.
b. 7 o 1: 7 Data bits, Odd parity, and 1 Stop bit.
c. 8 n 1: 8 Data bits, No parity, and 1 Stop bit.
If further problems persist, please contact the Atron Systems Service Department at 973-227-8882.
