Better Homes and Gardens Maddox BH44-084-399-09 Instruction Booklet

Crossing blue dining 2pk chair
Hide thumbs

Advertisement

Quick Links

Download this manual

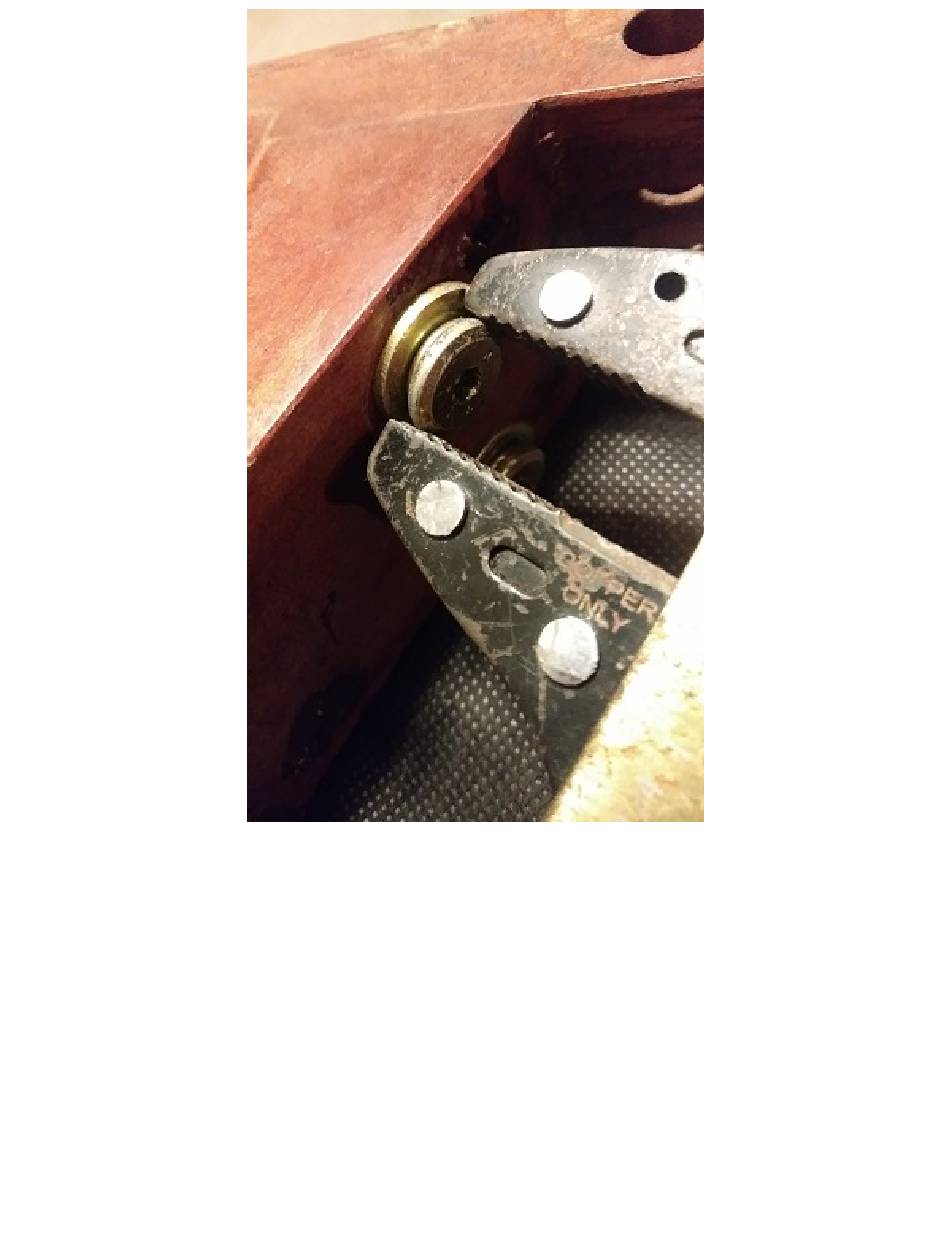

Use pliers to tighten and loosen all bolts in such a way that the chords are not
barred.

Advertisement

loading

Related Manuals for Better Homes and Gardens Maddox BH44-084-399-09

Summary of Contents for Better Homes and Gardens Maddox BH44-084-399-09

  • Page 1 Use pliers to tighten and loosen all bolts in such a way that the chords are not barred.
  • Page 4 LOT NUMBER: DATE OF PURCHASE: / / Maddox Crossing Blue Dining 2pk Chair Stock # BH44-084-399-09 ADULT ASSEMBLY REQUIRED If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the store where it was purchased. Please call our customer service number and have your instructions and parts list ready to provide the model name, part name or factory number: 1-866-942-5362 Pacific Standard Time: 8:30 a.m.

  • Page 5: Quality Guarantee

    Stock # BH44-084-399-09 QUALITY GUARANTEE We are confident that you will be delighted with your Whalen Furniture purchase. Should this product be defective in workmanship or materials or fail under normal use, we will repair or replace it for up to one (1) year from date of purchase. Every Whalen Furniture product is designed to meet your highest expectations.
  • Page 6 Stock # BH44-084-399-09 Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. A- Chair Backrest (2) B- Seat (2) C- Front Leg (4) (1) M8 x 40 mm Bolt (4+1 extra) (2) M8 x 80 mm Bolt (8+1 extra) (3) Lock Washer (4) Flat Washer...
  • Page 7 Stock # BH44-084-399-09 Assembly Instructions M8 x 40 mm Bolt ① (2 used in this step) Flat Washer ② M8 x 80 mm Bolt (6 used in this step) Lock Washer (4 used in this step) (6 used in this step) ④...
  • Page 8 Stock # BH44-084-399-09 Assembly Instructions Lock Washer (4 used in this step) ③ Flat Washer (4 used in this step) ④ M8 Hex Nut (4 used in this step) ⑤ 5. Flip last assembly upside down on a support surface. As shown. NOTE: Place a protective cover (like the bubble wrap packing material) over the carton or other support surface to prevent from scratching.

  • Page 9: Care And Maintenance

    Stock # BH44-084-399-09 Care and Maintenance  From time to time please ensure there are no loose nuts on the product.  Use a soft, clean cloth that will not scratch the surface when dusting.  Use of furniture polish is not necessary. Should you choose to use polish, test first in an inconspicuous area.
