Summary of Contents for Hohner ORION 4

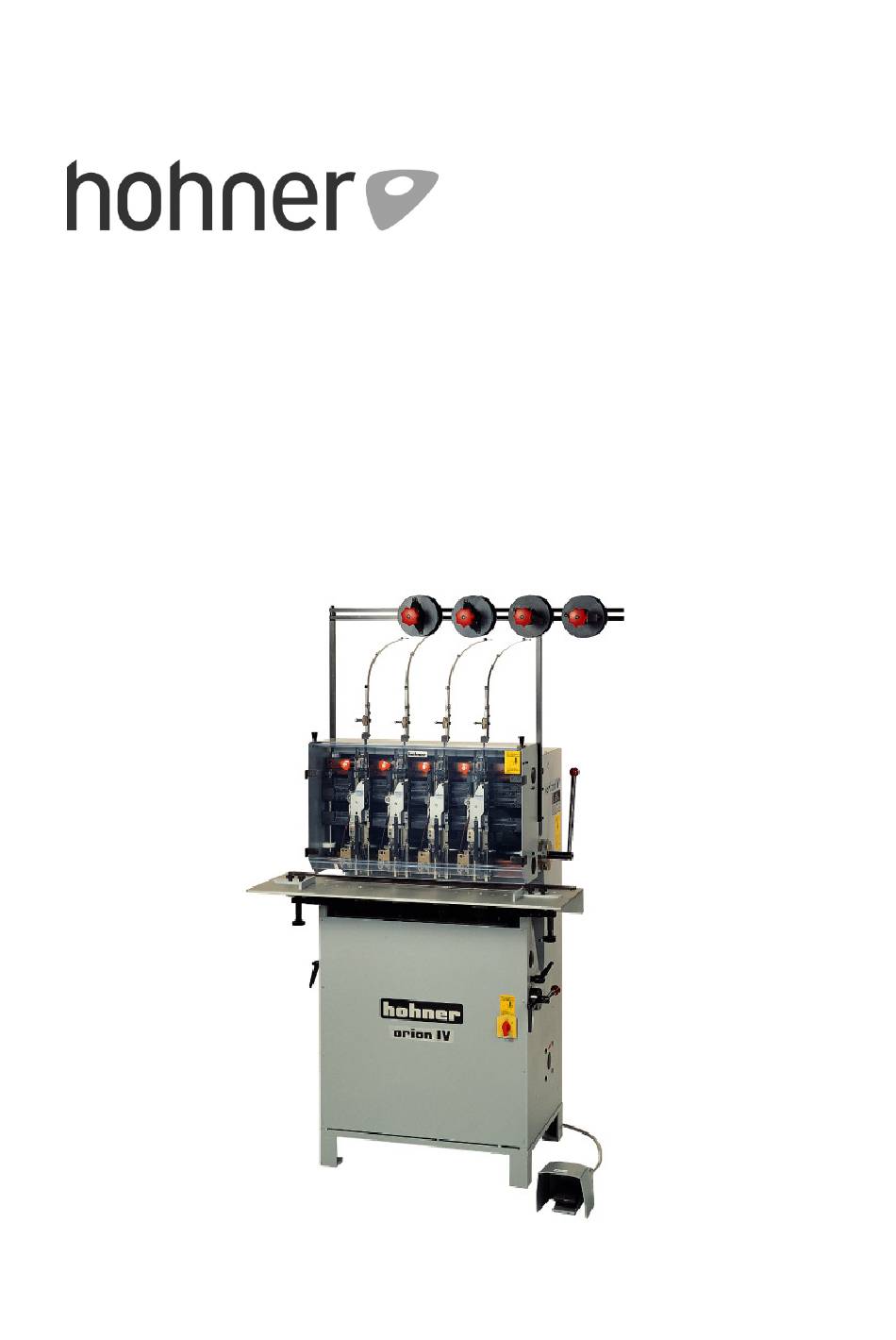

- Page 1 Operating-Instructions Spare parts list ORION 4 05/2008 Pad and Folder Wire Stitching Machine Hohner Maschinenbau GmbH Gänsäcker 19, 78532 Tuttlingen, Telephone 07462 / 9468-0, Fax 07462 / 9468-20...
- Page 2 Hohner Maschinenbau GmbH – ORION 4...
-
Page 3: Table Of Contents
Installation of the chlincher box ..................9 Basic adjustment of clinchers ..................10 Pressure adjustment for clincher back pressure ..............11 Adjustment of the stitching thickness................12 Adjustment by hand of the ORION 4 ................13 Accessories ........................14 Flow diagrams .........................15 Hohner Maschinenbau GmbH – ORION 4... -
Page 4: Safety Notices
Only trained and instructed specialised staff may operate, maintain and repair the machine. Before working on the machine, please read the Hohner operating instructions and heed all warnings on the machine. Do not operate the machine until all safety devices, locking mechanisms and other safety precautions are functioning and fitted to the machine. -
Page 5: Technical Data
Net weight per narrow stitching head UNIVERSAL 70/20 around 8,5 kg This version of the wire stitching machine ORION 4 affords room for four (4) narrow stitching heads UNIVERSAL 70/20. The stitching table is placed in a horizontal position for block stitching and in a saddle position for brochure stitching. -
Page 6: Measures Plan Of The Orion 4
Measures plan of the ORION 4 Hohner Maschinenbau GmbH – ORION 4 - 6 -... -
Page 7: Installation Of The Stitching Table
5 upwards and tighten them. Important! The „stick-on-level“ 8 on the front panel 7 shows, how to fix the safety guard 6 in the two way position of the stitching table. Hohner Maschinenbau GmbH – ORION 4 - 7 -... -
Page 8: Installation Of The Narrow Stitching Heads 70/20
3 , the pusher 4 and adjusting block 5 with the corresponding rails. Clamp the stitching head to the machine by turning down the hex sockets 6 of the eccentric until it is tight. Hohner Maschinenbau GmbH – ORION 4 - 8 -... -
Page 9: Installation Of The Chlincher Box
Install the clincher box 3 on with the mounting studs 1 and make certain that the adjustment screw 4 is aligned with the driving slot as shown. Tighten both clamp nuts 6. Be sure the clincher box is correctly aligned with the stitching head. Hohner Maschinenbau GmbH – ORION 4 - 9 -... -
Page 10: Basic Adjustment Of Clinchers
Adjust the clincher pusher screw 2 until the center of the clincher points are approx. 1 mm above the clincher box surface. Tighten the allen set screw 1 . Hohner Maschinenbau GmbH – ORION 4 - 10 -... -
Page 11: Pressure Adjustment For Clincher Back Pressure
2 and adjust the clincher back pressure with the adjusting lever 3. After the pressure adjustment tighten again clamp lever 2 and both clamp levers 1 . If an individual pressure adjustment is required, please revert to page 7. Hohner Maschinenbau GmbH – ORION 4 - 11 -... -
Page 12: Adjustment Of The Stitching Thickness
Cycle the machine once, this will load the stitching heads with the new proper stitch length. You may begin production. Be sure all safety quards are in place! Hohner Maschinenbau GmbH – ORION 4 - 12 -... -
Page 13: Adjustment By Hand Of The Orion 4
10. Adjustment by hand of the ORION 4 For any adjustment or installation work at the wire stitching machine ORION 4 , the drive unit can be moved by hand. For this step use the pipe spanner 19 mm 2... -
Page 14: Accessories
11. Accessories Every ORION 4 WIRE STITCHING MACHINE is supplied with: Art.-No. 31 44 030 setting gauge Art.-No. 46 00 003 1 screw driver SB 4,5 Art.-No. 46 00 004 1 screw driver SB 7,0 Art.-No. 46 00 008 1 hexagon socket screw key SW 3 Art.-No. -
Page 15: Flow Diagrams
Nr. 43 44 360 P. 1-3 400 V 3 Phase AC / Y 50/60 Hz Orion 4 Nr. 43 44 362 P. 1-3 230 V 3 Phase AC / ∆ 50/60 Hz Hohner Maschinenbau GmbH – ORION 4 - 15 -... - Page 16 Maschine / Machine / Machine 29.03.05 Orion IV 43 44 360 Bennenung / Title / Dénomination Schaltplan / flow diagrams / schéma des circuits 400V 3 Phase AC / Y 50 / 60 Hz Änderung Name C Hohner Maschinenbau GmbH...
- Page 17 =ORION4+400V-X1 Klemmleiste / connector block / borne plate Zeichnungs-Nr. / Drawing-Nr. / Dessin-No. Index 21.05.08 VEK Maschine / Machine / Machine Orion IV 43 44 360 Bennenung / Title / Dénomination Klemmleiste Änderung Name C Hohner Maschinenbau GmbH...
- Page 18 Bez. Art.Nr Bezeichnung Description Description 4300076 Schütz contactor contacteur 4200142 Motor motor moteur 4200165 Lüfter-Motor ventilator-motor ventilateur-moteur 4300007 Hauptschalter main switch interrupteur principal 4300223 Motorschutzschalter protective motor switch coffret de protect. disjoncteur-protecteur 4300068 Fußschalter pedal switch commande par pédale 4300003 Endschalter stop switch déclenchem.
- Page 19 21.05.08 VEK Maschine / Machine / Machine Orion IV 43 44 362 Bennenung / Title / Dénomination Schaltplan / flow diagrams / schéma des circuits 230V 3 Phase AC / 50 / 60 Hz Änderung Name C Hohner Maschinenbau GmbH...
- Page 20 =ORION4+230V-X1 Klemmleiste / connector block / borne plate Zeichnungs-Nr. / Drawing-Nr. / Dessin-No. Index 19.05.08 VEK Maschine / Machine / Machine Orion IV 43 44 362 Bennenung / Title / Dénomination Klemmleiste Änderung Name C Hohner Maschinenbau GmbH...
- Page 21 Bez. Art.Nr Bezeichnung Description Description 4300076 Schütz contactor contacteur 4200142 Motor motor moteur 4200165 Lüfter-Motor ventilator-motor ventilateur-moteur 4300007 Hauptschalter main switch interrupteur principal 4300224 Motorschutzschalter protective motor switch coffret de protect. disjoncteur-protecteur 4300068 Fußschalter pedal switch commande par pédale 4300003 Endschalter stop switch déclenchem.
