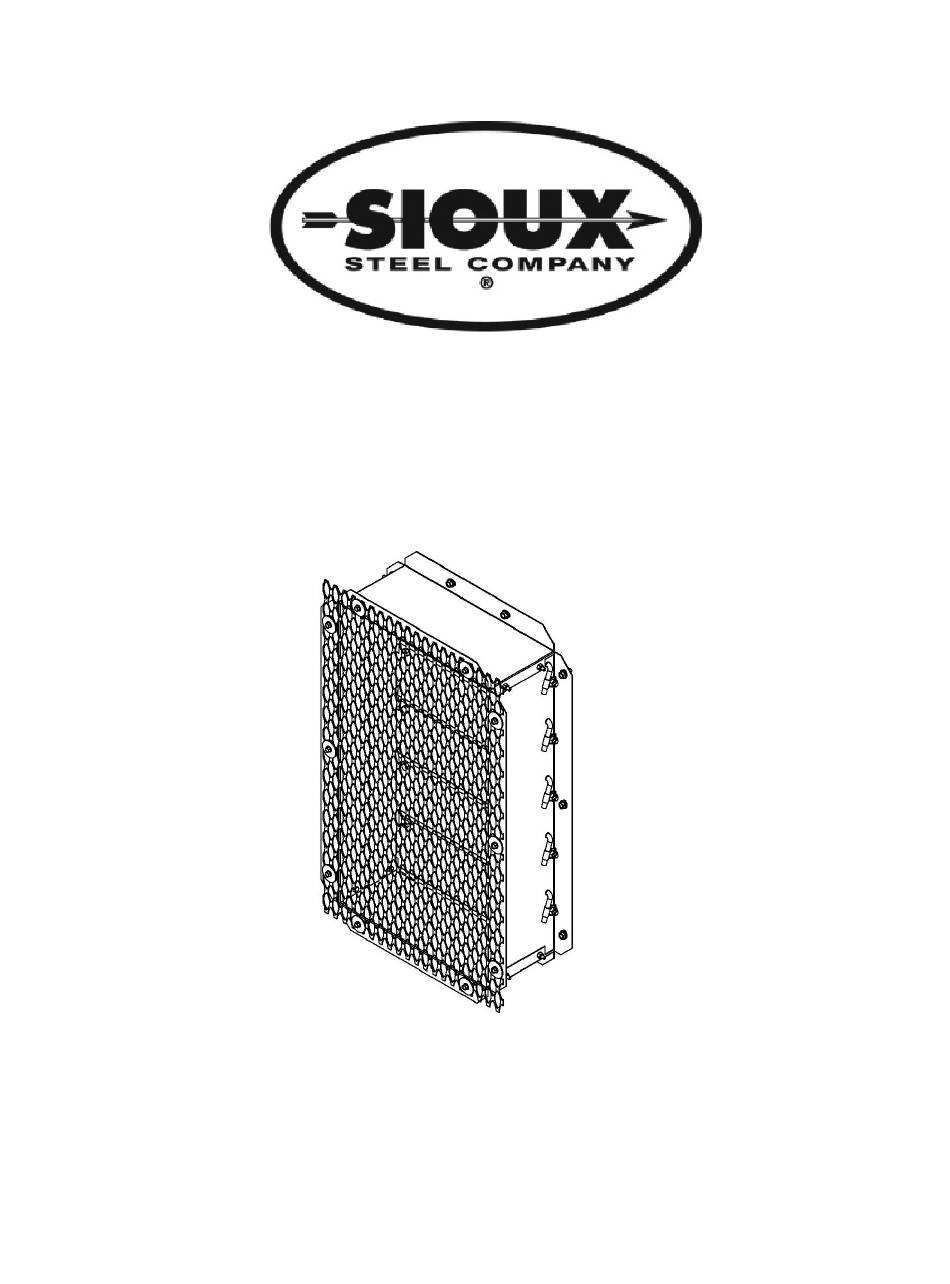

- Page 1 Manual # 225988 Created 8/18/2020- KAG Shutter- 10hp Centrifugal Fan S225987 Sioux Steel Company, PO Box 1265, Sioux Falls, SD 57101 1-800-557-4689...
- Page 2 Safety Watch for this symbol. It points out important safety precautions. It means “Attention – Be Alert!” DEFINITIONS: CAUTION: Indicates a hazardous situation, which, if not avoided, could result in minor or moderate injury. WARNING: Indicates a hazardous situation, which, if not avoided, could result in death or serious injury.
- Page 3 Parts List Item No. Part No. Description S224278 Top/Bottom S224279 Side RH S224280 Side LH S224281 Panel S224277 Shaft S225986 Guard S192789 Stop S207651 9/16” Loop Clamp S207667 3/8” Loop Clamp S202351 7/16” Flange Bearing S154003 ¼” x ¾” Hex Screw S196490 ¼”...
- Page 4 Step 3 (Install Top Panel) Step 4 (Install Additional Panels) Repeat Step 3 Step 5 (Install Stops) Step 6 (Install onto Fan)
- Page 5 Step 7 (Install Guard)
