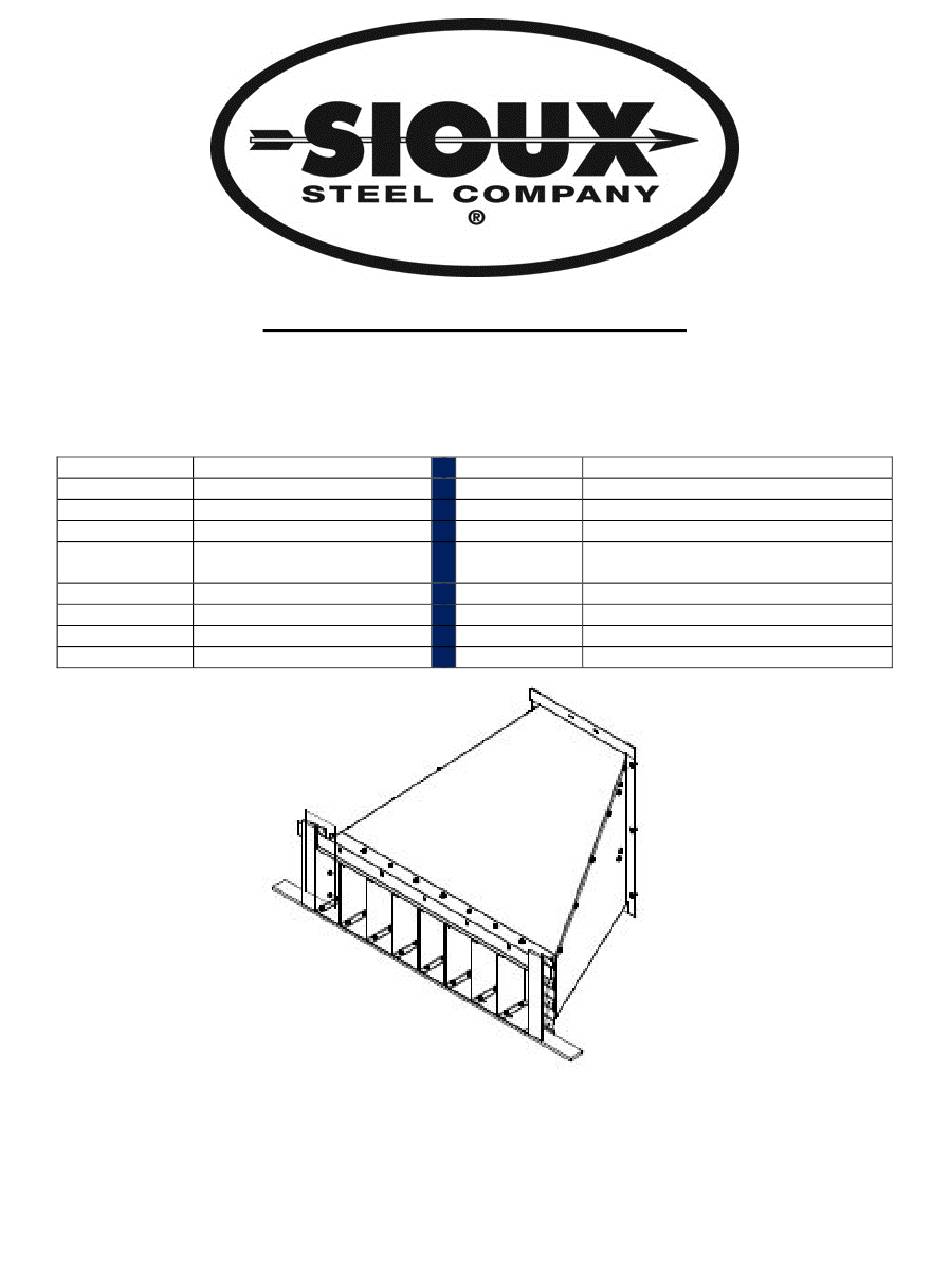

- Page 1 ASSEMBLY INSTRUCTIONS 5-25HP CENTRIFUGAL FAN/12”-28” AXIAL FAN TRANSITION FOR AERATION FLOOR FARM/COMMERCIAL 199281-FN 5-10HP CENT- FARM 199281-CS 5-10HP CENT- COMMERCIAL 199281-15FN 15HP CENT- FARM 199281-15CS 15HP CENT- COMMERCIAL 199280-FN 20-25HP CENT- FARM 199280-CS 20-25HP CENT- COMMERCIAL 199281-575FN 10-15HP CENT/575V- FARM...
-
Page 3: Table Of Contents
CONTENTS Contents…………………………………………..………………. Safety………………………………………………......Fan Transition Assembly………..……………………………… Transition Package Pack List …………………......9-11 Transition Assembly Instructions……………….……………….. 5-10HP Centrifugal Fan/Transition Configuration……………... 15-25HP Centrifugal Fan/Transition Configuration …....10-15HP 575V Centrifugal Fan/Transition Configuration ……. 10-20HP SCF Series Cent Fan/Transition Configuration…….. Axial Fan/Transition Configuration …………………………….. Axial Fan/Heater/Transition Configuration ……………………... - Page 4 READ AND SAVE THESE INSTRUCTIONS GENERAL SAFETY STATEMENTS Thank you for choosing a Sioux Steel Company product. It is designed to perform and serve you for many years. It is the goal of Sioux Steel Company to improve our products whenever it is possible and practical to do so. Sioux Steel Company reserves the right to change, improve, and modify products at any time without obligation to make changes, improvements, and modifications on previously sold equipment.
-
Page 5: Safety
SAFETY RECOGNIZE THE SAFETY ALERT SYMBOL The above symbol means “ATTENTION! BE ALERT! YOUR PERSONAL SAFETY IS INVOLVED!” Note this symbol in instructions for important issues concerning your personal safety. Read each message carefully to avoid personal injury or death. FOLLOW MACHINE SAFETY SIGNS &... - Page 6 WARNING: To reduce the risk of fire, electric shock, or injury to persons, observe the following: Use this unit only in the manner intended by the manufacturer. If you have any questions, contact the manufacturer. Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally.
- Page 7 DANGER: Never enter bin, unless all power is locked off and another person is present. Rotating augers can kill or dismember! DANGER: Flowing grain may trap and suffocate. If you enter a bin of flowing grain you can be completely submerged in grain in seconds.
-
Page 8: Fan Transition Assembly
FAN TRANSITION ASSEMBLY PLUG HOLES IN SIDE IF SHUTTER OPTION IS NOT UTILIZED. REFERENCE NO. BOTTOM RIGHT SIDE LEFT SIDE WALL BRACKETS FLASHING SUPPORT 5/16” X ¾” BIN BOLT 5/16 FLANGE NUT 10. FAN PANEL 11. FOAM STRIP 12. SEALANT 13. -
Page 9: Transition Package Pack List
TRANSITION PACKAGES PACK LIST All Transition packages include: Ref. No Part No. Description 195626 Wall Bracket/Farm-LH 195629 Wall Bracket/Commercial-LH 195627 Wall Bracket/Farm-RH 195630 Wall Bracket/Commercial-RH 198031 Flashing/Farm 198032 Flashing/Commercial 163899 Support 177732 5/16-18 x ¾” Bin Bolt 158372 5/16-18 Flange Nut 11484 Foam Strip 163665... - Page 10 TRANSITION PACKAGES PACK LIST (cont.) Parts included with specific models (Centrifugal Fans): 199281-575 For 575V 10/15HP 199281 For 5-10HP Centrifugal Fan Centrifugal Fan Farm/Commercial Farm/Commercial Ref No. Part No. Description Ref No. Part No. Description 173330 173330 173329 Bottom 173329 Bottom 190439 Right Side...
- Page 11 TRANSITION PACKAGES PACK LIST (cont.) Parts included with specific models (Axial Fans): 199283 for 28” Axial Fan 199284 for 24” Axial Fan (used on 203 Series Fans) (used on 203 Series Fans) Ref. Part Description Ref. Part Description 167147 Top 167147 Top 167148 Bottom 167148 Bottom...
-
Page 12: Transition Assembly Instructions
TRANSITION ASSEMBLY INSTRUCTIONS Assemble sides (item 3 & 4), bottom (item 2), and top (item 1) panels, caulking (item 12) all overlapping bolted seams, bolting together with 5/16” x ¾” bin bolts (item 8) and 5/16” flange nuts (item 9) provided. Tighten securely. -
Page 13: 5-10Hp Centrifugal Fan/Transition Configuration
5 TO 10 HP CENTRIFUGAL FAN/TRANSITION CONFIGURATION REF. CENTRIFUGAL CENTRIFUGAL TRANSITION 15-25 HP CENTRIFUGAL FAN/TRANSITION CONFIGURATION NOTE: FOR 575V 20HP CENT FAN/TRANSITION REF. SECURE FAN TO TRANSITION BY LINING UP CENTRIFUGAL FAN TO TRANSITION AS SHOWN. TRANSFER AND DRILL HOLES FROM FAN INTO TRANSITION. CAULK AND BOLT WITH HARDWARE PROVIDED. -
Page 14: 10-15Hp 575V Centrifugal Fan/Transition Configuration
10-15 HP 575V CENTRIFUGAL FAN/TRANSITION CONFIGURATION REF. CENTRIFUGAL CENTRIFUGAL TRANSITION SECURE FAN TO TRANSITION, BY LINING UP FAN TO TRANSITION AS SHOWN. UTILIZE FAN PANEL 203784 (ITEM 10) TO MOUNT UPPER PORTION OF TRANSITION TO FAN. TRANSFER AND DRILL HOLES FROM FAN INTO TRANSITION. CAULK AND BOLT WITH 5/16”... -
Page 15: 10-20Hp Scf Series Cent Fan/Transition Configuration
ADAPTER FRAME CENT FAN/TRANSITION CONFIGURATION 10HP, 15HP, AND 20HP (for SCF Series Fans) Note: Please discard Fan Panel 203680 found in the 10HP Fan Transition package 199281 if using Adapter Frame 208817. VERIFY LOCATION OF ANGLE TRANSITION/HEATER CUTOUTS TOWARD TOP OF SIDE ASSEMBLY ASSEMBLE... -
Page 16: Axial Fan/Transition Configuration
AXIAL FAN/TRANSITION CONFIGURATION NOTE: FOR 575V AXAIL FAN/TRANSITION SECURE FAN TO TRANSITION BY LINING UP FAN AND FAN PANEL (ITEM 10) TO TRANSITION AS SHOWN. TRANSFER REF. AND DRILL HOLES FROM FAN INTO AXIAL TRANSITION AND FAN PANEL. CAULK AND BOLT WITH HARDWARE PROVIDED. ATTACH FAN PANEL TO FAN WITH ¼”... -
Page 17: Warranty
RODUCT ARRANTY RAIN LIMITED WARRANTY FOR NEW SIOUX STEEL COMPANY PRODUCTS A. GENERAL PROVISIONS. “Sioux Steel” means Sioux Steel Company, 196 1/2 East Sixth Street, Sioux Falls, South Dakota 57104. The warranties described below are provided by Sioux Steel to the original purchasers of new products purchased from Sioux Steel or from an authorized Sioux Steel Dealer (the “Products”).
