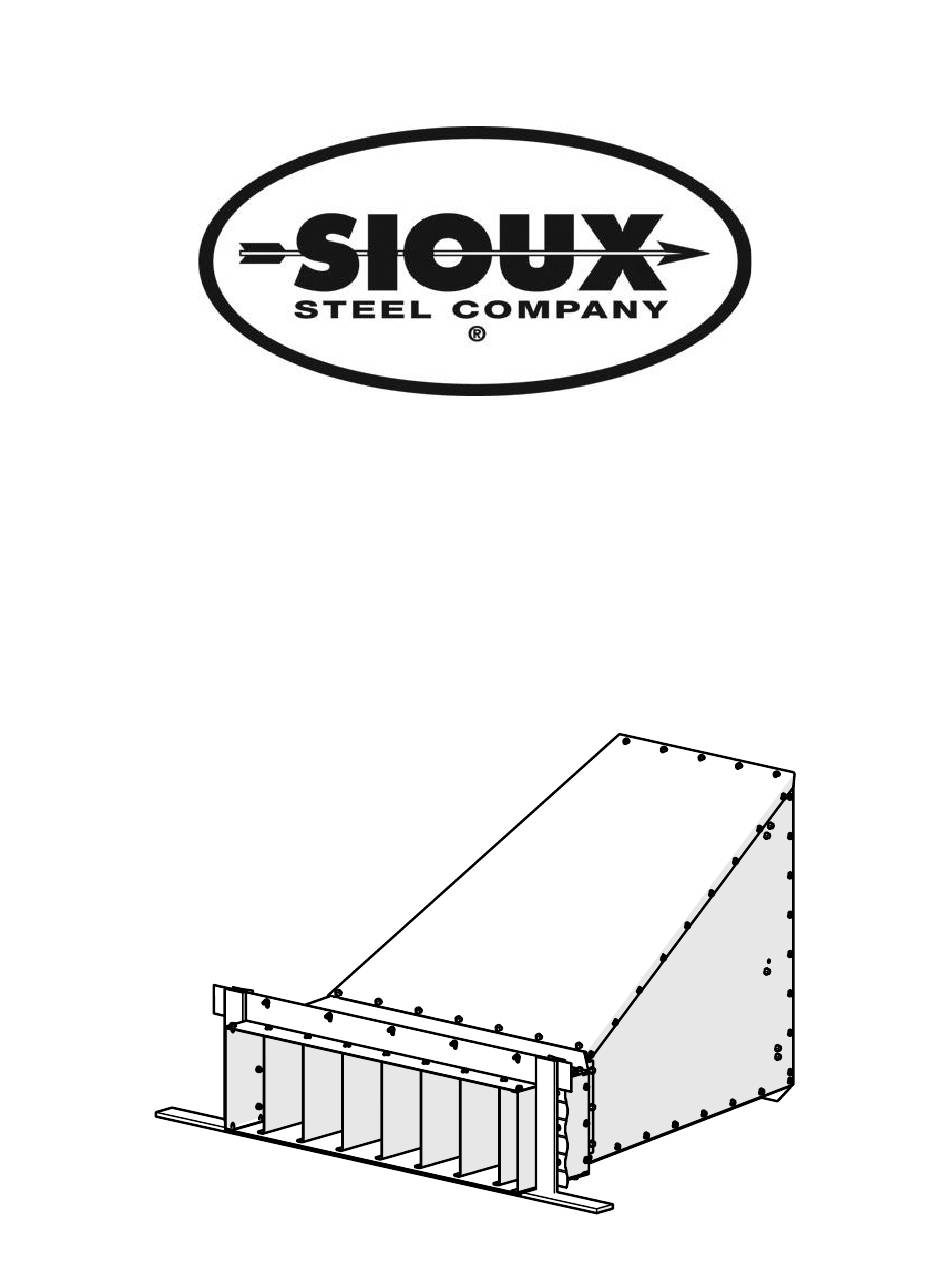

- Page 1 MANUAL NO. 229172 11/1/2022 OWNER’S MANUAL 20/25 HP LO SPEED HEAVY DUTY 20-50 HP HIGH SPEED TRANSITION FOR AERATION FLOOR...
- Page 2 Introduction • The purpose of this manual is to explain the operation and maintenance of this fan transition. It also contains a parts list for reference if replacement parts are needed. • It is recommended that you read this manual in its entirety for the information available to provide the proper care and maintenance.
-
Page 3: Table Of Contents
Contents Part Numbers............................1 Safety Information ..........................2 Safety Alert Symbols ........................3 Transition Assembly Instructions ......................7 Fan Transition Parts Diagrams ......................8 Fan Transition Configurations ......................10 New Product Warranty ..........................11... -
Page 4: Part Numbers
1 Part Numbers S228668-20 20HP Lo Speed Heavy S228668-20HS 20HP Hi Speed S228668-25 25HP Lo Speed Heavy S228668-30HS 30HP Hi Speed S228668-40HS 40HP Hi Speed S228668-50HS 50 HP Hi Speed S228668S Transition with Blank Panel... -
Page 5: Safety Information
2 Safety Information Thank you for choosing a Sioux Steel Company product. It is designed to perform and serve you for many years. It is the goal of Sioux Steel Company to improve our products whenever it is possible and practical to do so. -
Page 6: Safety Alert Symbols
2.1 Safety Alert Symbols RECOGNIZE THE SAFETY ALERT SYMBOL The above symbol means “ATTENTION! BE ALERT! YOUR PERSONAL SAFETY IS INVOLVED!” Note this symbol in instructions for important issues concerning your personal safety. Read each message carefully to avoid personal injury or death. RECOGNIZE THE SAFETY ALERT SYMBOL Observe safe operating practices. - Page 7 WEAR PROTECTIVE CLOTHING CLOTHING- Avoid baggy clothes to avoid catching on moving parts. HEARING PROTECTION- When high noise levels are encountered, ear plugs or muffs should be used. EYE PROTECTION- Safety glasses should be always worn to protect eyes from debris. GLOVES- Always wear gloves to protect hands from sharp edges.
- Page 8 WARNING: To reduce the risk of fire, electric shock, or injury to persons, observe the following: 1. Use this unit only in the manner intended by the manufacturer. If you have any questions, contact the manufacturer. 2. Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally.
- Page 9 CAUTION: To avoid electrocution, all equipment must be properly wired and grounded according to electrical codes. Have unit wired by a qualified electrician. Have your electrician install a main power disconnect switch capable of being locked only in the OFF position.
-
Page 10: Transition Assembly Instructions
3 Transition Assembly Instructions Note: Reference Section 4: Fan Transition Parts Diagrams when parts (I.E) (4)) are referenced. Assemble sides (3), bottom (1), and top (2), caulking (9) all overlapping seams, with 5/16” x ¾” (36.1) sheet metal screws. Next assemble splice top (10) and splice bottom (11) to the inside of previous assembly, caulking (9) all overlapping seams, with 5/16”... -
Page 11: Fan Transition Parts Diagrams
4 Fan Transition Parts Diagrams... - Page 12 PARTS LIST ITEM PART # DESCRIPTION 228672 PANEL - TRANSITION BOT - 20 - 50HP FULL TRAN 228671 PANEL - TRANSITION TOP - 20 - 50HP FULL TRAN 198155 TRANS SIDE-20/25 HP (SHUTTER) 165406 SILICONE CAULK 228670 SPLICE - TOP- 20-50HP FULL Tran 228673 SPLICE- TRANSITION BOTTOM 20-50HP 228674 SPLICE- TRANSITION LH SIDE- 20-50HP FULL 184101 DUCT SIDE-12"...
-
Page 13: Fan Transition Configurations
5 Fan Transition Configurations REF. CENTRIFUGAL REF. CENTRIFUGAL TRANSITION PANEL Seal all seams and joints to prevent moisture from entering or air from leaking. It is very important that your fan is adequately supported! If a concrete pad is not used, an angle iron frame may be constructed for the fan to rest on, providing it is strong enough to support the fan’s weight. -
Page 14: New Product Warranty
New Product Warranty RAIN LIMITED WARRANTY FOR NEW SIOUX STEEL COMPANY PRODUCTS A. GENERAL PROVISIONS. “Sioux Steel” means Sioux Steel Company, 196 1/2 East Sixth Street, Sioux Falls, South Dakota 57104. The warranties described below are provided by Sioux Steel to the original purchasers of new products purchased from Sioux Steel or from an authorized Sioux Steel Dealer (the “Products”). - Page 15 E. LIMITATIONS OF WARRANTIES AND CUSTOMER’S REMEDIES. To the extent permitted by law, neither Sioux Steel, the Dealer nor any person or company affiliated with either of them makes any warranties, representations, conditions or promises express or implied as to the quality, performance or freedom from defects of the Products covered by these warranties other than those set forth herein.
