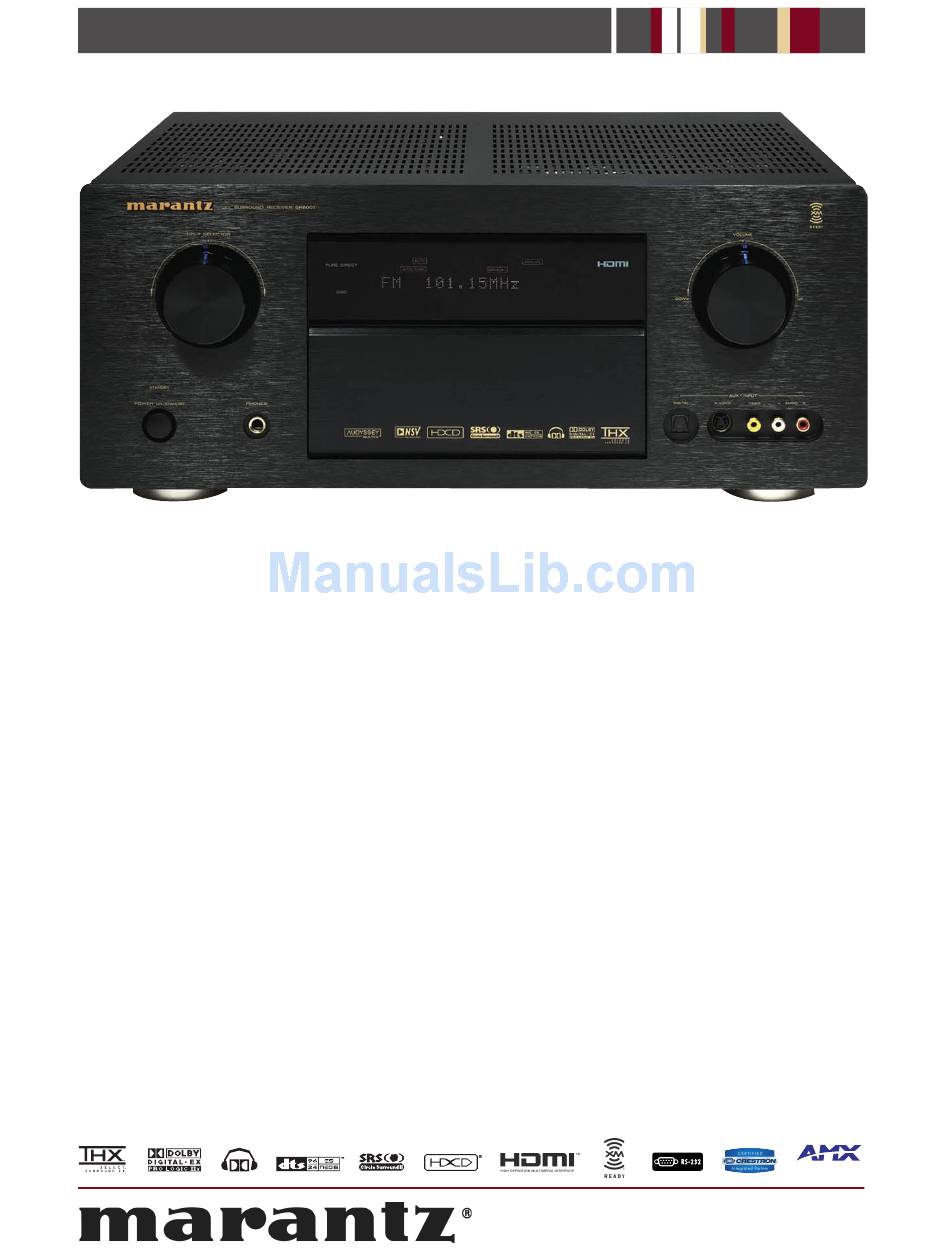

Marantz SR8001 Specifications

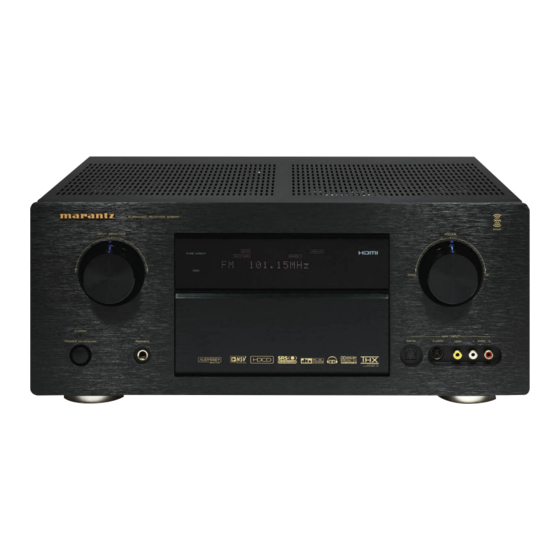

SR8001
THX SELECT2 DOLBY DIGITAL EX
The SR8001 features THX Select2 certification and is also one of the few receivers to feature Audyssey's unique auto calibration capability. This
is a significant improvement over previous "room correction" strategies in that it improves the listening characteristics of your entire room
rather than for just one or two seats. . It's your assurance that, in addition to the power you'll need to fill average-sized rooms with theater-
quality sound (125 watts continuous from each of its seven amplifiers), other performance parameters like signal-to-noise and distortion are
absolutely first class. Then there are the Marantz touches. A toroid-based power supply. Current feedback amplification. An anti-interference
copper plated chassis that's less than 16" deep so it will fit in more places easily. Adding to the audio flexibility is a 3rd Zone output (with an
individually selectable source!) to make your SR8001 the center of a whole house distributed audio system. On the A/V side, the SR8001
features HDMI switching (version 1.2) for up to four sources and two display devices. And there's format conversion to HDMI with Time Base
Correction so even your older video sources will look their best. If you're not quite ready for HDMI (or if your displays aren't), the SR8001
offers two assignable component outputs, too. One infrared receiver input and two IR outputs add enormous control flexibility as do two DC
"trigger" outputs for custom installation applications. And, of course, the peace of mind that our three year-warranty gives you.
• THX Select 2 certification
• 125 watts (into 8 ohms) x 7 ch. Amps
• Dolby Digital EX ® , Pro Logic IIx
• DTS 96/24, ES ® , Neo:6
• SRS Circle Surround II ®
• HDCD Decoder
• HDMI (V1.2) repeating: 4-In / 2-Out
• Video up-conversion (w/TBC) to HDMI with 480I/480P converter
• All discrete "Current Feedback" amplifier stages
• 32bit DSP
• 192 kHz/24-bit D/A converters for all channels
• Audyssey Auto Calibration
• HD compatible component video switching (4 in / 2 out)
• Assignable dual component video outputs
• Assignable video inputs
• XM-Ready with discrete IR commands
2
® (Movie/Music/Game)
® /DTS ES ® SURROUND RECEIVER
• Dielectric protected binding posts
• Dolby Headphone
• Toroidal transformer
• Copper plated chassis
• 2nd Zone A/V and 3rd Zone Audio output
(Individual source) w/discrete commands
• Speaker A/B switching
• Lip sync. control
• RS-232C terminal for system control
• Direct IR Flasher input and IR Receiver input
• Dual IR Emitter outputs
• Dual DC Trigger outputs
• D-BUS (RC-5 In/Out) remote connection
• Shallow Chassis < 16"
• Learning/pre-programmed backlit remote with LCD
• 3 year limited warranty
Life Amplified
®
Compatible
TM
