Williams AV WF R2 Quick Start Manual

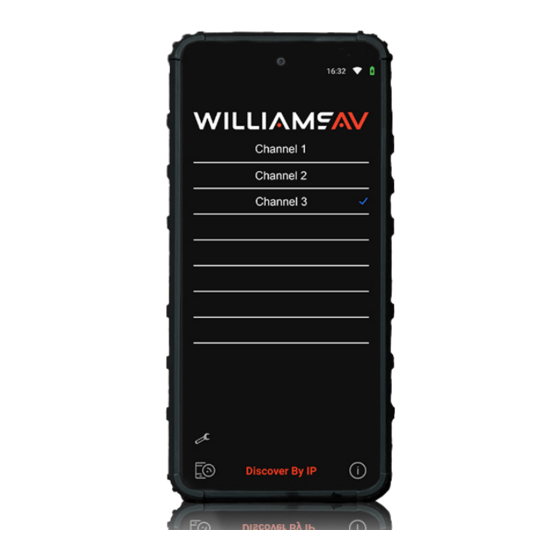

WAV Pro Wi-Fi Receiver
WF R2
Audience members can listen to WaveCAST audio on the WAV Pro Wi-Fi Receiver instead
of using the WaveCAST app on their personal mobile device. The WAV Pro Wi-Fi Receiver
can be used to meet ADA and IBC assistive listening requirements, or for listeners who
cannot install the WaveCAST app on their mobile device.

Getting Started

1. Unbox the WAV Pro Wi-Fi Receiver (WF R2) and charge fully.
2. Power on the WAV Pro Wi-Fi Receiver with the included USB-C power supply.
3. If the device doesn't turn on by connecting to power press and hold the on/off
button until the device starts booting.
4. Connect earphone, headphones or a neckloop to the 3.5 mm jack.
5. Use the +/- hard buttons to adjust the volume of the connected earphone,
headphones or neckloop.

On-Screen Tutorial

The WaveCAST Receiver app allows listeners to hear the audio on their personal, Wi-Fi connected devices, such as a mobile phone. Make
sure the latest app is downloaded on the device and the latest OS is installed.

Settings Menu

After finishing the tutorial click the wrench icon at the bottom left corner of the screen to open the settings menu. The settings menu
allows you to adjust device settings such as screen brightness and network connections.
The following options are available:

Wi-Fi Settings

6. You will need to connect the receiver to the WaveCAST Wi-Fi network before
the app can be used. To create a connection, select your Wi-Fi network and log in, if
necessary.

Display Settings

7. To adjust the screen brightness, slide the brightness slider to the right for a
brighter screen, or to the left for a dimmer screen.

Region Settings

8. Select your preferred language.
Note: Changing the system language only affects the settings menu, not the language
of the WaveCAST app itself.

Time and Date Settings

9. Set time and date manually or use network-provided time and time zone and
select the time format (12/24 hour).
QUICK START GUIDE
USB-C Charging Port
3.5mm Headphone Jack
Volume Up/
Down Buttons
On/Off Button
