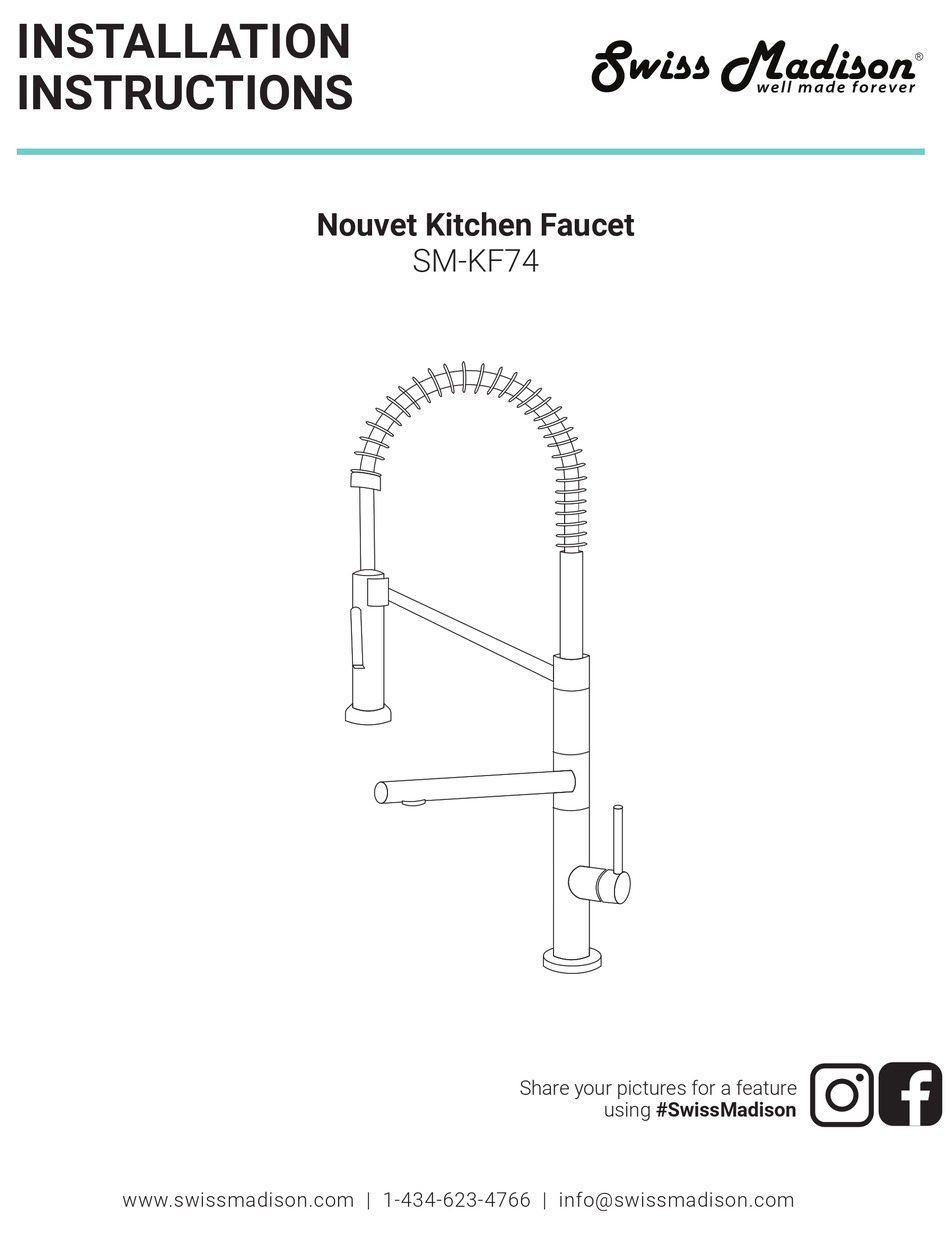

- Page 1 INSTALLATION wiss adison ® ® INSTRUCTIONS Nouvet Kitchen Faucet SM-KF74 Share your pictures for a feature using #SwissMadison www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com...
- Page 2 Thank you for your purchase! Thank you for purchasing a Swiss Madison Faucet. We appreciate your business and know you will enjoy your faucet for many years to come. If you have any questions or require assistance we would be happy to help, please contact us at 1-434-623-4766 or info@swissmadison.com.
- Page 3 KITCHEN FAUCET ROUGH DIMENSIONS 25” 9” 8 9⁄16” 7 ¹⁄16” Ø 1 ³⁄8” Nouvet Faucet SM-KF74C - Chrome 9” x 1 ³⁄8” x 25” SM-KF74BG - Brushed Gold SM-KF74BN - Brushed Nickel SM-KF74MB - Matte Black SM-KF74GG - Gunmetal Grey —...
- Page 4 Pipe Tape Sealant The step-by-step guidelines in the installation instructions are a general reference for installing a Swiss Madison Faucet. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional.
- Page 5 KITCHEN FAUCET INSTALLATION INSTRUCTIONS 1. Remove Mounting Hardware • Turn off water supply. • Remove the lock nut from the thread rods, remove the metal and rubber washer from the faucet. 2. Install Faucet • Place faucet through hole on countertop with the washer on the sink. •...
- Page 6 KITCHEN FAUCET INSTALLATION INSTRUCTIONS 3. Tighten Lock Nuts • Adjust direction of faucet then tighten lock nuts and screw. 4. Connect Water Supply • Connect spray hose and spray head. • Connect water supply to hot and cold hose. Turn on and check for leaks. —...
- Page 7 If you have any questions or concerns, please contact us directly at 1-434-MADISON (623-4766) WARNING: Contents of your order may contain sharp and possibly other harmful pieces and may cause hazard to children and adults. Swiss Madison® is not responsible in any way for personal dam- ages.
