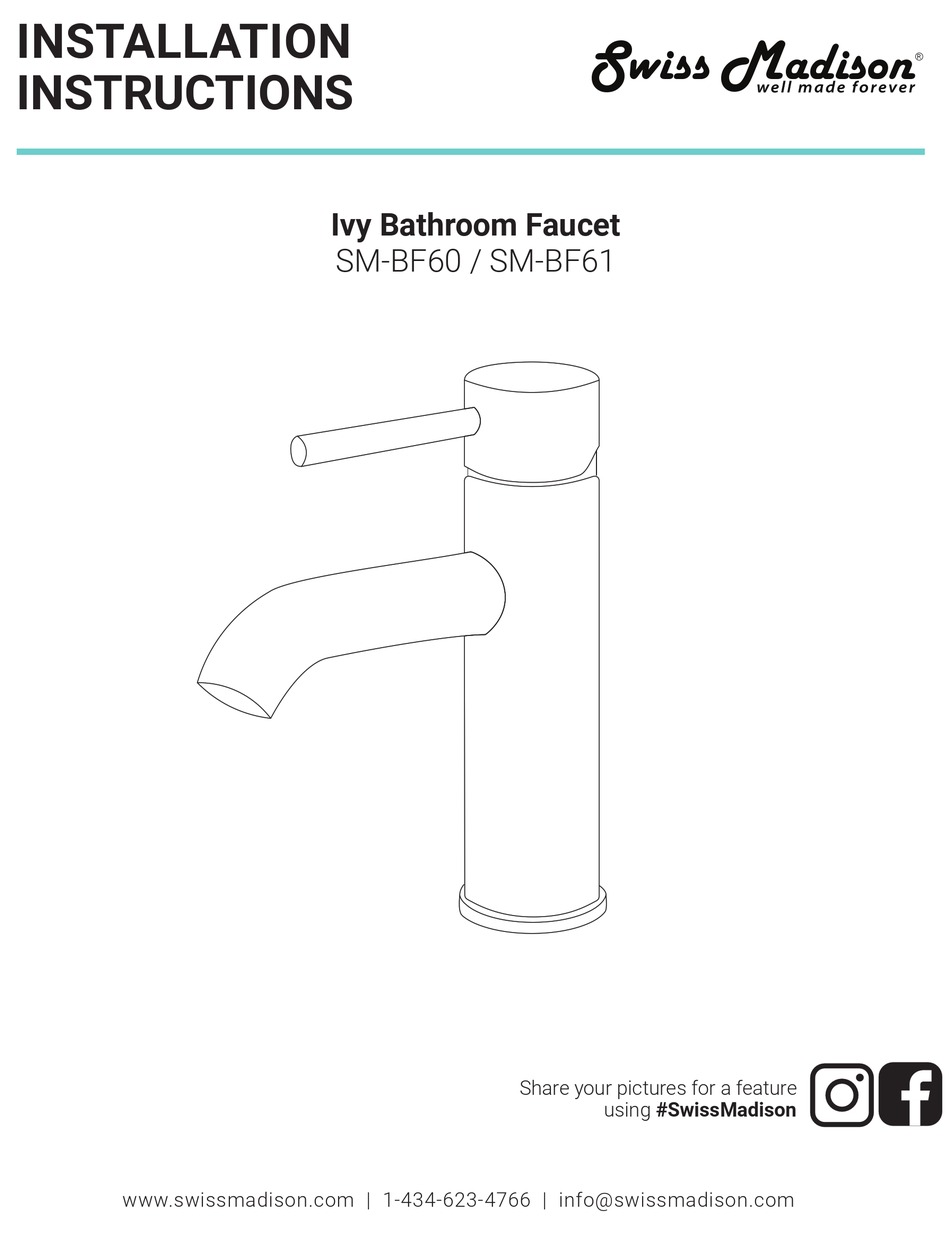

- Page 1 INSTALLATION wiss adison ® ® INSTRUCTIONS Ivy Bathroom Faucet SM-BF60 / SM-BF61 Share your pictures for a feature using #SwissMadison www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com...
- Page 2 Thank you for your purchase! Thank you for purchasing a Swiss Madison Faucet. We appreciate your business and know you will enjoy your faucet for many years to come. If you have any questions or require assistance we would be happy to help, please contact us at 1-434-623-4766 or info@swissmadison.com.
- Page 3 BATHROOM FAUCET ROUGH DIMENSIONS 6 ¹⁄16” 7 ³⁄8” 4 5⁄8” 3 9⁄16” 1 ³⁄8” Ø 1 ¹⁄4” - 1 ³⁄8” Ivy 7.5" Faucet SM-BF60C - Chrome 6 ¹⁄16” x 2 ¹⁄16” x 7 ³⁄8” SM-BF60BG - Brushed Gold SM-BF60BN - Brushed Nickel SM-BF60MB - Matte Black SM-BF60OR - Oil Rubbed Bronze 7 ¹⁄8”...
- Page 4 Pipe Tape Sealant The step-by-step guidelines in the installation instructions are a general reference for installing a Swiss Madison Faucet. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional.
- Page 5 BATHROOM FAUCET INSTALLATION INSTRUCTIONS 1. Remove Mounting Hardware • Turn off water supply. • Remove the lock nut from the thread rods, remove the metal and rubber washer from the faucet. 2. Install Faucet • Place faucet through hole on countertop with the washer on the sink. •...
- Page 6 BATHROOM FAUCET INSTALLATION INSTRUCTIONS 3. Tighten Lock Nuts • Adjust direction of faucet and tighten lock nuts with spanner key. 4. Connect Water Supply • Connect water supply to hot and cold hose. Turn on and check for leaks. • Remove aerator with aerator key, turn on water for 15 seconds to flush any debris. Reassemble aerator. —...
- Page 7 If you have any questions or concerns, please contact us directly at 1-434-MADISON (623-4766) WARNING: Contents of your order may contain sharp and possibly other harmful pieces and may cause hazard to children and adults. Swiss Madison® is not responsible in any way for personal dam- ages.
