Suggested Tools - Child Craft Lucas F36701 Manual

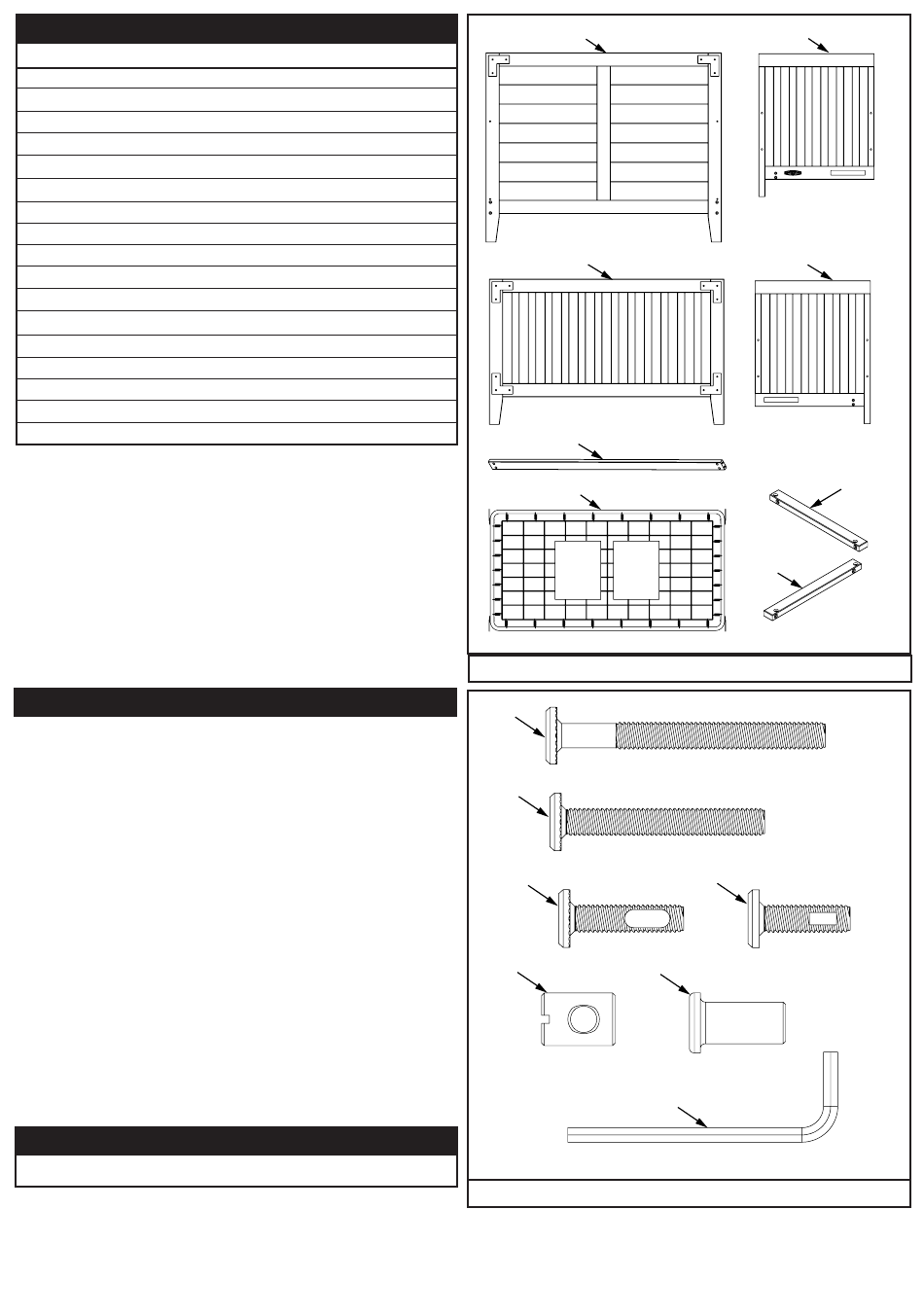

PARTS LIST BASIC CRIB
Part Description
A. Headboard Assembly
B. Short Foot Assembly
C. Long Foot Assembly
D. Short Head Assembly
E. Stretcher
F. Spring
G. Allen Head Bolt 6mm x 60mm
H. Allen Head Bolt 6mm x 45mm
I. Allen Head Bolt 6mm x 25mm
J. Allen Head Bolt 6mm x 20mm
K. Joint Connector Nut
L. Connector Nut
M. Allen Wrench
N. Guard Rail Extension - Left
P. Guard Rail Extension- Right
PREPARATION
Carefully remove and lay out all hardware and parts.
Check quantities and match the parts list.
Construct Crib on an even flat floor.
Note: during the assembly process whenever
using screws or bolts, check each with the parts list
by letter and size identification. Place each screw
or bolt on the diagram of the item which is sketched
actual size. Be sure to use the proper size specified
in the assembly directions. If any parts are missing
or broken or you need assistance with assembly
DO NOT return your product to the dealer.
Please identify the crib by the model number
identification stamped on the inside face of the Foot
and Head Assembly when you call or write to
Foundations. Make note of all identification numbers
and include this information with your request.
The Allen Head Bolts (I and J) have a friction
enhancing patch on the thread which may cause
resistance during tightening.
DO NOT Substitute Parts!

SUGGESTED TOOLS

#2 Medium Straight Screwdriver
Part Number Quantity
1
22302598
1
22302587
1
22302582
1
22302588
1
22302597
1
11200624
12
11200326
8
11200373
8
11200327
12
11200384
4
11200330
16
11200331
2
11200070
1
22302604
1
22302605
2
A
C
E
F
Crib Parts
G
H
I
K
L
M
Hardware Package
B
D
N
P
AB20258_G3
J
AB20258_G4
