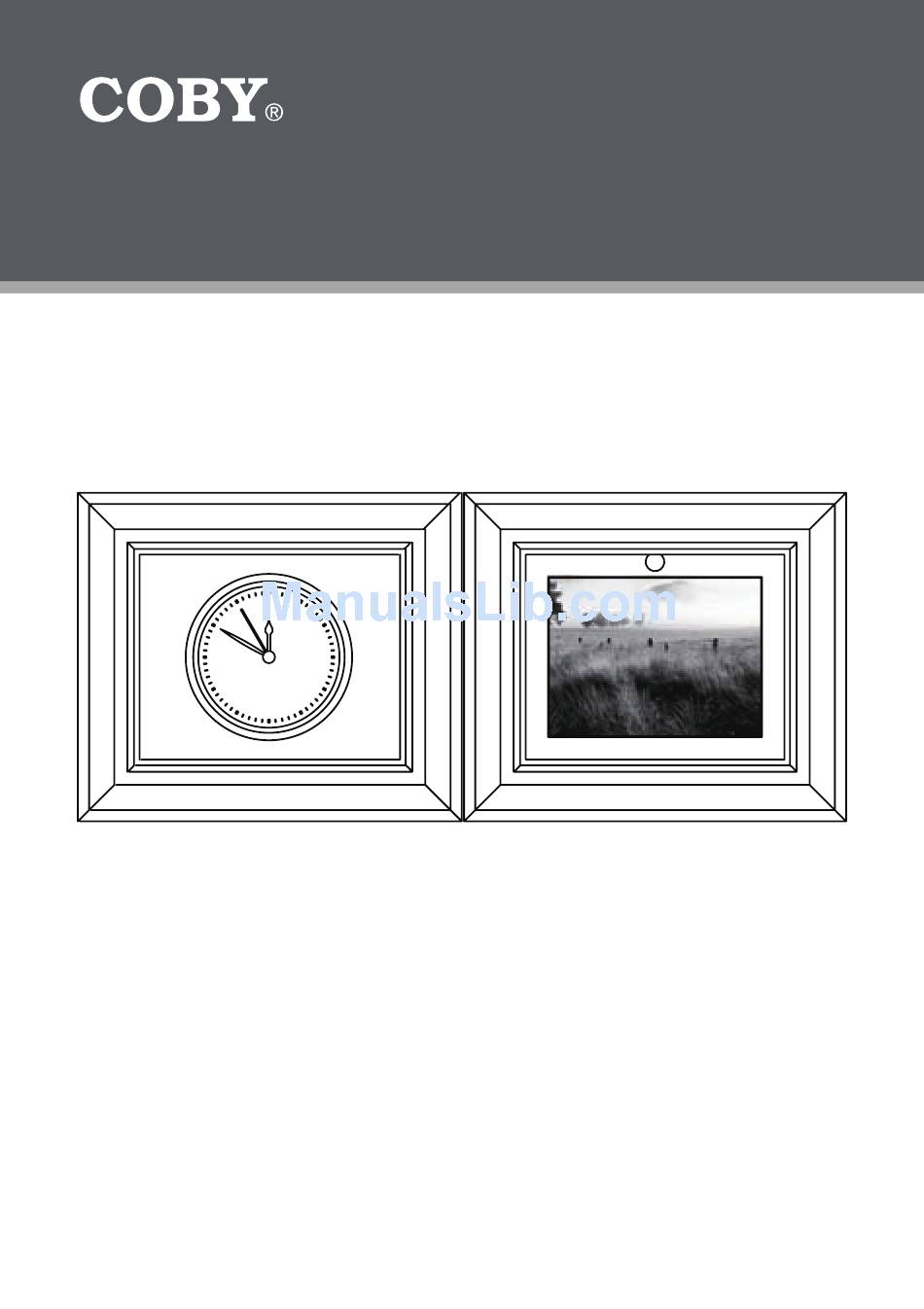

- Page 1 DP-5588 5.6” Widescreen color tFt lcD Digital Photo Frame with analog clock QUARTZ InstructIon Manual Please read this manual carefully before operation...
-
Page 2: Precautions
Retain this information for future reference. Model No. Serial No. For recycling or disposal information about this product, please contact your local authorities or the Electronics Industries Alliance: www.eiae.org. Page Page Precautions DP-5588 Coby Electronics Corporation Coby Electronics Corporation... - Page 3 WARNING: To prevent fire or shock hazard, do not expose this device to rain or moisture. Dangerous high voltage is present inside the enclosure. Do not open the cabinet. CAUTION: To prevent electric shock, match wide blade of plug to wide slot of outlet and fully insert.
-
Page 4: Important Safety Instructions
Important safety Instructions Read Instructions: All the safety and operating instructions should be read before the product is operated. Retain Instructions: The safety and operating instructions should be retained for future reference. Heed Warnings: All warnings on the product and in the operating instructions should be adhered to. - Page 5 Important safety Instructions Protective Attachment Plug: The product may be equipped with an attachment plug with overload protection. This is a safety feature. See the operating instructions for replace- ment or directions to reset the protective device. If replacement of the plug is required, be sure the service technician has used a replacement plug that has the same overload protection as the original plug as specified by the manufacturer.
- Page 6 Important safety Instructions Servicing: Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. Damage Requiring Service: Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a) when the power-supply or plug is damaged;...
-
Page 7: Table Of Contents
table of contents PrecautIons ...2 IMPortant saFety InstructIons ...4 table oF contents ...7 Package contents ...9 Features ...10 locatIon oF controls ... 11 Top View ...11 Left View ...11 Front View ... 12 Right View ... 12 Remote Control ... 13 gettIng starteD ... - Page 8 table of contents Photo MoDe ...23 Photo List ... 23 Photo View ... 23 Zoom ... 24 Rotate ... 24 Slideshow ... 24 setuP Menu ...25 Language Options ... 25 Photo Options ... 26 Reset Options ... 27 cable connectIon ...28 Headphones ...
-
Page 9: Package Contents
Package contents Please make sure that the items shown below are included in the package. Should an item be missing, please contact the local retailer from which you purchased this product. QUARTZ COBY DP-5588 Remote Control AC Adapter www.cobyusa.com MUTE... -
Page 10: Features
• 5.6” Widescreen TFT LCD Color Screen • Displays JPEG Photo Files • Plays MP3 and WMA Music Files • Plays most Video Files for Digital Cameras (AVI, MPG, XVID) • AV Output for use with Home Theater Systems • SD, MMC, xD, MS and CF Card Slots •... -
Page 11: Location Of Controls
location of controls Top View Menu/Setup Press once for Menu; Press and hold for Setup Enter/Slideshow Press for Enter Down Left / Fast Reverse Press for Left during selecting. Press for Fast Reverse during Audio/Video playback Right/ Fast Forward Press for Right during selecting. Press for Fast Forward during Audio/Video playback Volume Level Dial... -
Page 12: Front View
location of controls Front View 5.6” TFT LCD Remote Sensor Clock Right View Video Out Headphone / Audio Out Power Switch (On / Off) Power In Jack Detachable Kickstand Page 1 Page 1 Coby Electronics Corporation Coby Electronics Corporation... -
Page 13: Remote Control
location of controls Remote Control Menu Mute Play / Pause Zoom Up (Navigation) Left (Navigation) Down (Navigation) Right (Navigation) Enter Stop Previous / Reverse Next / Forward Volume Down Volume Up Angle Setup Slideshow www.cobyusa.com MUTE Page 1... -
Page 14: Getting Started
Using the Remote Control To load a battery in the remote: Pull in the direction of the arrow Slide the compartment out Place the battery in the compartment with the positive side ( + ) facing up Push the compartment in to close To use the remote: •... -
Page 15: Installing A Memory Card
Installing a Memory Card Your photo frame supports the following types of memory cards: • Compact Flash cards (CF) • Secure Digital cards (SD) • MultiMedia Card (MMC) • xD-Picture card (xD) • Memory Stick (MS) Simply insert the memory card of your choice into its corresponding card slot lo- cated on the left panel of the photo frame. -
Page 16: Turning Your Photo Frame On/Off
• To turn your photo frame off, set the Power Switch to the “Off” position. Menu Interface Navigation To select the different menu options and files of your digital photo frame: • Use the Navigation keys to make a selection: •... -
Page 17: Main Menu Screen
Number of Files Current Playback File The digital photo frame is equipped with a demo slideshow that will automatically start after 10 seconds if there is no card inserted. The demo slideshow will stop when a card is inserted or any button is pressed. -
Page 18: Available Selected Card
Available Selected Card When a card has been inserted, press the MENU button. Your photo frame will display the “Available Selected Card“ dialogue box shown below. Available Selected Card Dialogue Box The card has been selected The card is being selected (not confirmed) •... -
Page 19: Music & Video List
Music & Video Mode Music & Video List Upon entering the Main Menu, use the navigation keys to select a desired audio / video file and press to play. AA.MP3 Name: Elapsed time Filename of Current playback file Current Disk Icon Current File Number/Total Number of Files Current Playback File Name/Artist/Album/Year/Track/Comment of current playback file... -
Page 20: Advanced Settings
Music & Video Mode Advanced Settings Filter Use the Filter function to hide unwanted Audio/Video/Photo files. Use the Naviga- tion Keys to select and press unwanted Audio/Video/Photo files will be hidden and playback stopped (if it’s being played). Flat Mode There are several custom settings in Flat Mode. -
Page 21: Audio & Video Controls
Music & Video Mode • To add more files in program mode: Select and confirm Browser View below the Edit Mode to browse files in the Main Menu, then follow the steps above to add more files. • To Cancel programmed files: In the Program Screen, select and confirm the unwanted file (which will be checked), and then select and confirm Clear Program below Edit mode. -
Page 22: Video Controls
Music & Video Mode Video Controls After confirming an Video file, the screen will display its playback screen in full size. • Press icon for fast reverse or fast forward, each successive press will decrease or increase the speed by: ×... -
Page 23: Photo Mode
Photo List Upon entering the Main Menu, use the navigation keys to select a desired photo file. The photo file selected screen shown below. Filename of selected file Current Disk Icon Current File Number/Total Number of Files Current selected File Photo dimension Photo preview Advanced settings (Filter/Flat Mode/Edit Mode) -
Page 24: Zoom
Zoom To increase the level of magnification, press ZOOM. • Each successive press of ZOOM will change the level of magnification as shown below. • To pan around the magnified picture, use the navigation keys. Rotate To rotate the picture, press ANGLE. •... -
Page 25: Setup Menu
To adjust the settings and options of your digital photo frame, press Menu be displayed on screen. • Use the navigation keys to highlight and display option / sub-menu. • To confirm a selection, press • To return to a previous menu level, press •... -
Page 26: Photo Options
Photo Options If USER is selected in JPEG Interval list, the interval of the photo slideshow will be operated manually. Page Page setup Menu Coby Electronics Corporation Coby Electronics Corporation... -
Page 27: Reset Options
setup Menu Reset Options Confirm Yes on Use Default Settings dialogue box, the settings of the player will change to the default settings. www.cobyusa.com Page ... -
Page 28: Cable Connection
cable connection Headphones Audio-Only Output To output audio only, use the AV connection but do not connect the Video cables. Page Page Coby Electronics Corporation Coby Electronics Corporation... -
Page 29: Composite Video
To use your DP-5588 to output audio and video to an external home theater sys- tem, use the connections diagrammed below. Composite Video included www.cobyusa.com Page ... -
Page 30: Clock
To insert a battery & adjust the time Push and slide out the battery compart- ment cover. To insert a battery: make sure to match its polarities (+/-) to the markings on the inside of the compartment. To adjust the time: turn the knob in the compartment . -
Page 31: Firmware Upgrades
From time to time, COBY may release firmware updates to improve the perfor- mance of the DP-5588 or to add additional features. Please check the COBY web- site periodically at www.cobyusa.com to see if new firmware has been released for your photo frame. -
Page 32: Troubleshooting
If you have a problem with this unit, please read the troubleshooting guide below and check our website at www.cobyusa.com for Frequently Asked Questions (FAQs) and firmware updates. If these resources do not resolve the problem, please contact Technical Support. COBY Electronics Technical Support 56-65 Rust Street Maspeth, NY 11378... - Page 33 The player will not play my music file. • Ensure that the file is in a compatible format (MP3 or WMA). • The file may be copy-protected. This player cannot play copy-protected files. The player will not play my video file. •...
-
Page 34: Specifications
Display Type Display Resolution Memory Audio Format Support Video Format Support Photo Format Support USB Host Audio Output Video Output Power Supply Specifications and manual are subject to change without prior notice. Page Page Specifications 5.6” Full-Color TFT LCD 320 x 3(RGB) x 234 CF Card Slot SD/MMC Card Slot... - Page 35 notes www.cobyusa.com Page ...
- Page 36 coby electronics corp. 56-65 Rust Street Maspeth, NY 11378 www.cobyusa.com www.ecoby.com...
