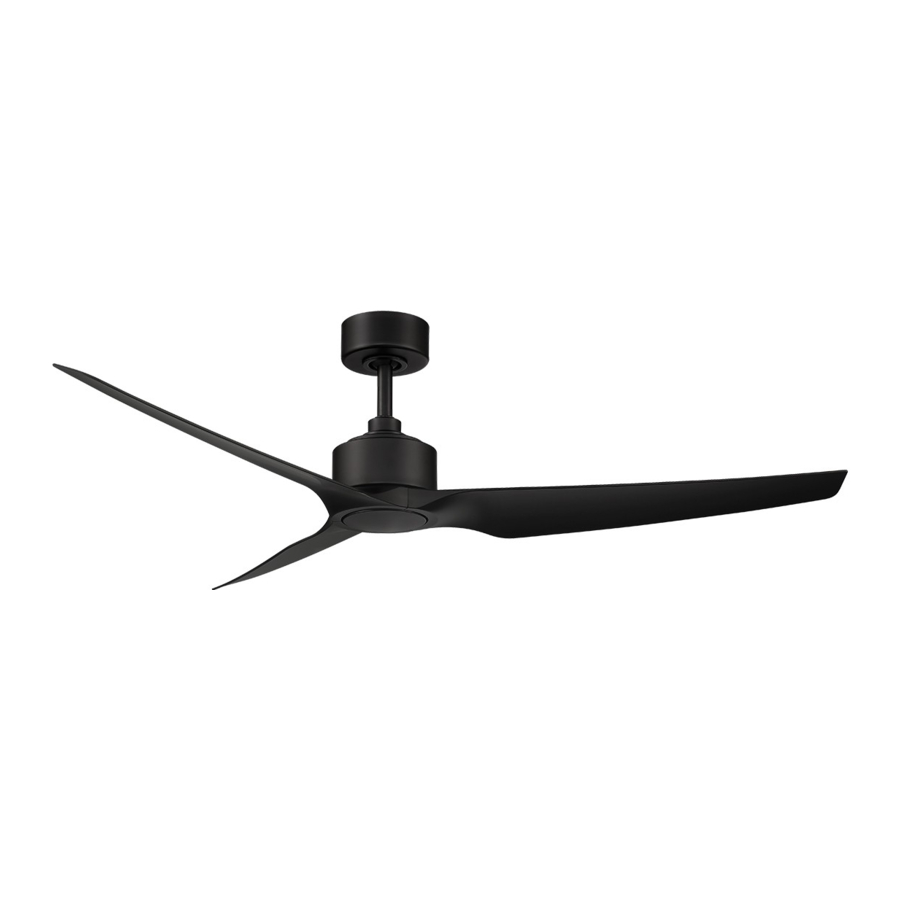

WAC STELLA F-056/F-056L Manual

GENERAL INQUIRIES

For all questions about your ceiling fan please read all included instructions, installation procedures, troubleshooting guidelines and warranty information before starting installation.
For missing parts or general inquiries call our trained technical staff at:
1-800-526-2588 option 0
MON-FRI 8AM-8PM EST
Email: customerservice@waclighting.com
Or live chat at www.waclighting.com

FAN SUPPORT

For fast service have the following information below when you call:

• Model Name and Number
• Part Number and Part Description
• Date Of Purchase and Purchase Location

GET SMART

This WAC Smart Fan is:

	Wet location-listed to the strictest UL/cUL safety regulations		Coordinates with smart devices for voice-activated control	DC MOTOR	Quiet, reliable, and up to 70% more efficient than AC motor fans
	Wi-Fi and Bluetooth enabled for unlimited control		Compatible with our WAC app

TOOLS & MATERIALS REQUIRED

Hanging Weight: 14/14.5 lbs
NOTE: Before discarding packaging materials, be certain all parts have been removed.
NOTE: Place the parts from the hardware bag into a small container to keep them from being lost.


Please make note of the MAC ID on the receiver and keep it in a safe place.

PACKAGE CONTENTS

MOUNTING OPTIONS

To prevent electrical shock, ensure electricity has been turned off at the circuit breaker before beginning. Figures 1 and 2 are examples of different ways to mount the outletbox. Use A hardware if needed to mount your outlet box.

INSTALLING THE MOUNTING BRACKET

ATTACHING THE FAN BLADES

1. Place blades on motor housing.
2. Secure blade with blade attachment screws and washers - repeat for remaining blades. Use B hardware.

HANGING THE FAN

1. Remove screw from hanger ball. Remove hanger ball and cross pin.
2. Loosen 2 screws, clevis pin and cotter pin.

1. Install coupling cover, canopy screw ring, canopy and downrod assembly into motor housing as shown.

1. Align downrod and motor collar holes, re-insert pins and screws.
2. Slip up canopy and canopy screw cover. Re-install hanger ball with cross pin in correct place.

1. Seat all into the mounting bracket. Rotate until ball drops and locks into hanger bracket screw.

1. Secure the safety cable into the structure beams using the wood screw, washers, and spring washers provided.
2. Slide receiver facing down as shown above.
   NOTE: Safety cable is required for all ceiling fan installations in Canada. Safety cable is required for ceiling fan and light (combo) installations over 35 lbs. in both flush and downrod models in the United States. Use C hardware.

INSTALLING THE OPTIONAL WALL CONTROL

NOTE: Wall control not included. A Bluetooth wall control accessory can be purchased separately.
NOTE: For multi-location wiring, skip to the next step.

1. Connect the green wire marked "GROUND" from the wall control to the copper wire from the wall outletbox that feeds back to the circuit breaker – important for proper fan function.
2. Connect the black wire marked "LINE IN" from the wall control to the black LINE VOLTAGE wire from the wall outletbox that feeds back to the circuit breaker.
3. Connect the red wire from the wall control to the black wire from the wall outletbox that feeds up to the fan.
4. Connect the white wire from the wall control to the white (neutral) wire from the wall outletbox.
5. Carefully tuck the wire connections inside the outletbox. Secure the wall control with the two (2) wall control screws provided.
6. Attach the wall mounting plate over the wall switch and secure with the two (2) wall mounting plate screws provided.
7. Fasten the wall plate to the wall mounting plate.

1. Install the wall control using the wiring diagram above.
2. Individually pair each of the wall controls with the fan receiver using the pairing instruction.

FINISHING THE INSTALLATION

INSTALLING THE LUMINAIRE COVER

INSTALLING THE LUMINAIRE MODULE

When installing the Luminaire verison (F-056L)

1. Connect the white wire connectors from the luminaire module to the white wire of the fan. Follow same procedure with blue wire connectors.
2. Use the 3 screws located in the luminaire module screw bag to install the luminaire module to the adapter plate. Use E Hardware.

1. Install shade firmly without over tightening

CONTROLLING THE FAN

Your fan was delivered to you with the included remote already paired to your fan. You will need to remove the pull-tab to begin using your remote control.

1. Light On/Off, Bright/Dim
2. Fan On/Off, Speed Up/Down
3. Season (Summer/Winter)

Air-Gap Switch: Pull tab to power off in case of emergency.
Not necessary for normal fan operation.
NOTE: Your fan features 6 speeds. An audible tone will indicate when the speed is increased or decreased. When the fan has reached the minimum/maximum speed level the fan will beep twice.
NOTE: Pairing must be completed within 3 minutes of turning the power on to the fan receiver. If you wish to pair your remote to another WAC Smart Fan or if you ever need to re-pair your remote to its original fan, press and hold the light toggle and fan toggle for 4 seconds until you hear a short beep, long beep combination from the fan.

Breeze Mode

1. Breeze Mode mimics the natural ebb and flow of winds in nature by varying the fan speed.
   NOTE: Breeze Mode always rotates your fan in the Summer (CCW) direction
2. To start Breeze Mode, press and for 4 seconds. The LED will blink green and the fan will beep.
3. To exit Breeze Mode and return to standard fan mode, press and for 4 seconds. The led will blink green and the fan will beep. Your fan will return to the direction and speed it was set to prior to entering Breeze Mode.

Controlling Multiple Fans with Remote or Wall Controls
Your remote and wall controls are capable of controlling multiple fans. A remote or wall control has the ability to control an unlimited number of fans with the only limitation being the Bluetooth® range of the control and fan.
Pairing a remote control or wall control to an additional fan(s) can be performed in the same manner as described in the pairing section.
NOTE: Pairing must be completed within three (3) minutes of powering the fan.

Synchronizing Control Across Multiple Fans
If you are controlling more than one fan with a remote control, there is a possibility that their light state, fan state or fan direction can get out of sync. To bring the fans/lights back into sync please follow the instructions.

RESET

NOTE: If you change your Wi-Fi settings (SSID or Security Passphrase you will need to perform a Wi-Fi reset on the fan by holding down the fan speed up and fan speed down buttons on the remote control for 10 seconds. The light on the remote will flash green and the fan will sound two long beeps. You can then use the Modern Forms Fans app to connect your fan to the new network.

NOTE: If advised by technical support, you can reset your fan to factory settings by either holding down the light toggle, fan toggle, and season button for 10 seconds or briefly depressing the reset button on the fan's receiver. The fan will emit three beeps indicating the reset was successful.
NOTE: Factory reset will remove remote control(s), wall control(s) and WAC app connections.

APPLICATION

In addition to the included control, you can operate your fan with the WAC Smart Fans app.

Upgradeable with Smart Features
Scan the code to the right with your phone to find out how you can enable smart features through the WAC app and integrate with your smart home ecosystem.
NOTE: Press light toggle and season toggle and hold for 4 seconds if you prefer not using the app or broadcasting Wi-Fi.

For more detailed app Instructions and Smart Home Device Integration
http://www.waclighting.com/SmartFanStart

1. To use the WAC app, download it from the App Store or Google Play.
2. Open the app to create your account. You can also log in using your Facebook or Google account.
3. To set up a Wi-Fi connection you will need the SSID and Wi-Fi password for the network you wish to connect to.
4. You will receive a prompt to name your fan device and upload an optional picture of it if you choose.
5. The WAC app will walk you through the main screen and show you how to create schedules, change fan speeds, dim the light, switch between Summer and Winter Modes, invite users, create groups and much more. Please refer to the WAC app instructions for more details.

ACCESSORIES

Product		Model	Description	Finish
Bluetooth Wall Control		WC20-	6 fan speeds, dims light to 1% Works in conjunction with WAC Smart Fan receiver (not included)	WT
Coupler		DC-	Connects two downrods Designed to accommodate buildings with steeper
Slope Ceiling Kit		SC-	Designed to accommodate buildings with steeper sloped ceilings up to 45° or 12/12 pitch
Bluetooth Remote Control		RC20-	Compatible with WAC Smart Fans 6 fan speeds, dims light to 1%	WT
Downrod	DR-12-**	12" downrod	All our downrods are 1" 1" O.D. and are threaded on the motor end to create an extra layer of security to allow for adjustments in the field.
	DR-18-**	18" downrod
	DR-24-**	24" downrod
	DR-36-**	36" downrod
	DR-48-**	48" downrod
	DR-60-**	60" downrod
	DR-72-**	72" downrod

TROUBLESHOOTING

My Fan Will Not Start

1. Check main and branch circuit fuses or circuit breakers.
2. Check line wire connections to fan and switch wire connections in the switch housings.

   Make sure the main power is turned off!

My Fan is Noisy

1. Allow for 24-hour break-in period. Most noises associated with a new fan will go away during this time period.
2. Check to make sure the screws which attached to the blades (and blade arms when applicable) are tight.
3. Check to make sure all screws in motor housing are snug.
4. Make sure light cover is tightened and/or glass is snug.
5. Tighten the hanger bracket screws and make sure the outletbox is secured.
6. Your wire connectors may be rattling against the fan's canopy.
7. Make sure you have a cUL/UL approved outletbox and it is installed correctly.

My Fan is Wobbling

1. Tighten the setscrews in the downrod.
2. Make sure your hanger ball assembly is locked into place in the hanger bracket.
3. Tighten the hanger bracket screws to the outletbox.
4. Make sure the fan blades are properly aligned and securely fastened to the motor housing assembly/blade arms.
5. Make sure the gaps between the blades are evenly distributed.
6. Make sure you are using an approved cUL/UL listed outletbox and it is installed correctly

My Fan is not producing Enough Air Movement

If possible, please consider using a longer than included downrod.
My remote or wall control is not controlling my fan
Verify that the fan is receiving power by power cycling the fan. To do this:

1. Cut power to the fan via standard On/Off wall switch, or the breaker if standard wall switch is not applicable.
2. Wait at least 10 seconds, and then restore power.
3. The fan will power on in Pairing mode for 3 minutes.
4. Press and hold and buttons on wall control for 10-15 seconds.
5. When the LED indicator remains solid green, and three (2) audible beeps are heard, the pairing process is complete.

My home Wi-Fi network is not showing up in the app's list during setup.

1. Your fan supports connection with 2.4GHz 802.11b/g/n networks. Confirm your network is compatible by checking your router settings or contact your router manufacturer.
2. Make sure your network's SSID is not hidden.
3. Your fan does not support 5 GHz network connectivity.

My Fan failed to join the Wi-Fi network

Make sure you entered the correct Wi-Fi password and your mobile device is connected to the same network you attempted to connect the fan.
Make sure you are within the router manufacturer's specified range. If all of these steps have failed - please power cycle your fan and router and retry.

What is power cycling and how do I power cycle my fan?
Power cycling is the act of temporaily removing the power source for your fan. If the fan is powered through a wall switch, turn the switch off for 10 seconds and back on. Alternately, you can use the circuit breaker the fan is connected to by toggling it off for 10 seconds and back on. If your fan is wired through a WAC wall control (P/N: WC20-WT) pull the Air-Gap Switch on your wall control, wait 10 seconds, and re-insert.

What is Adaptive Learning?

Adaptive learning is an exclusive feature that allows your fan to learn your daily/weekly habits and automatically recommend scheduled activity through the Modern Forms app. This feature can be toggled on or off.

What is Breeze Mode?

Breeze Mode mimics the natural ebb and flow of winds in nature by fluctuating your fan's speed.

What is Pairing?

Pairing is the process of connecting your WAC remote or wall control to your fan. Your fan comes pre-paired to your included remote control.
However, if you want additional controls for your fan or if you're replacing a control, refer to the pairing and unpairing section of the instructions.

What is a Factory Reset?

Factory Reset is a restore of the fans original settings. This can be achieved from the control or by pressing and holding the small button on the receiver until you hear three audible beeps or by holding down the fan toggle, light toggle, and season toggle buttons on your paired remote or wall control for 10 seconds.
NOTE: You will need to re-pair your remote or wall controls to the fan following a factory reset. A factory reset will also disconnect the fan from your home Wi-Fi network and will require you to add the fan using the WAC Smart Fans app.
Please refer to the FAQ section of our app for further guidance. For all other questions, please contact our dedicated Fan Support specialists. Contact information can be found at the front of the instructions.
