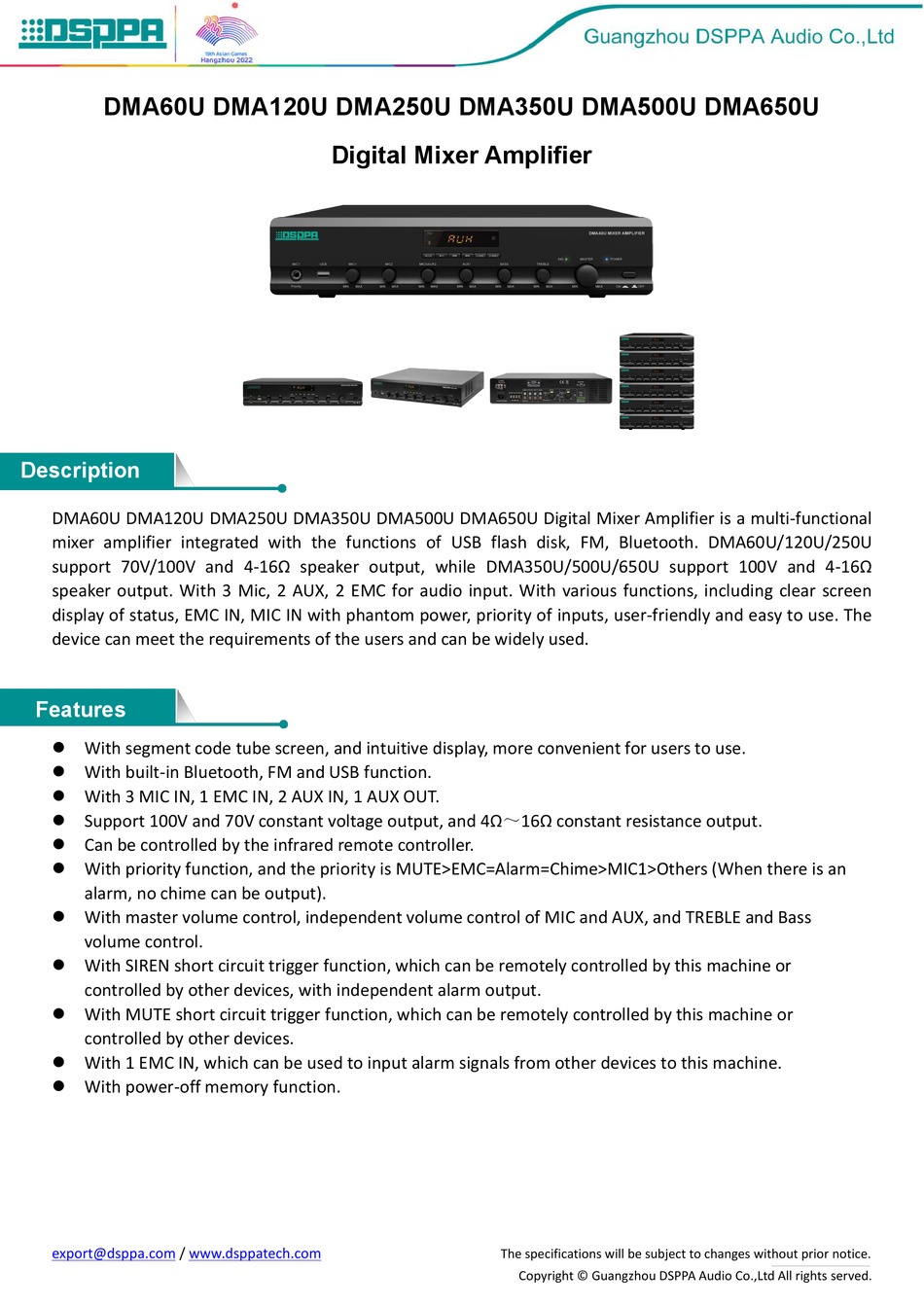

DSPPA DMA Series Quick Start Manual

DMA60U DMA120U DMA250U DMA350U DMA500U DMA650U

Description

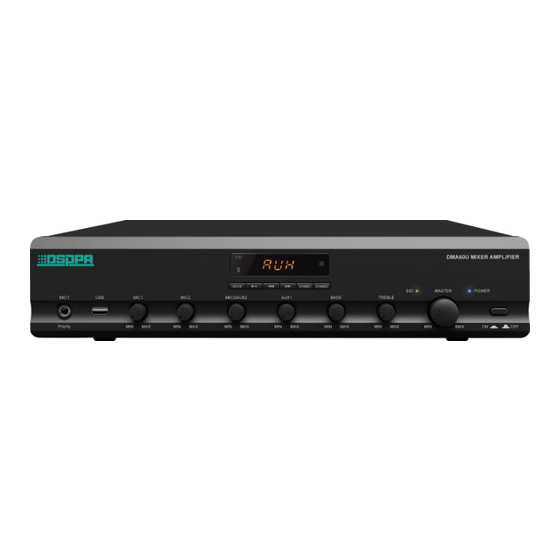

DMA60U DMA120U DMA250U DMA350U DMA500U DMA650U Digital Mixer Amplifier is a multi-functional
mixer amplifier integrated with the functions of USB flash disk, FM, Bluetooth. DMA60U/120U/250U
support 70V/100V and 4-16Ω speaker output, while DMA350U/500U/650U support 100V and 4-16Ω
speaker output. With 3 Mic, 2 AUX, 2 EMC for audio input. With various functions, including clear screen
display of status, EMC IN, MIC IN with phantom power, priority of inputs, user-friendly and easy to use. The
device can meet the requirements of the users and can be widely used.

Features

 With segment code tube screen, and intuitive display, more convenient for users to use.
 With built-in Bluetooth, FM and USB function.
 With 3 MIC IN, 1 EMC IN, 2 AUX IN, 1 AUX OUT.
 Support 100V and 70V constant voltage output, and 4Ω～16Ω constant resistance output.
 Can be controlled by the infrared remote controller.
 With priority function, and the priority is MUTE>EMC=Alarm=Chime>MIC1>Others (When there is an
alarm, no chime can be output).
 With master volume control, independent volume control of MIC and AUX, and TREBLE and Bass
volume control.
 With SIREN short circuit trigger function, which can be remotely controlled by this machine or
controlled by other devices, with independent alarm output.
 With MUTE short circuit trigger function, which can be remotely controlled by this machine or
controlled by other devices.
 With 1 EMC IN, which can be used to input alarm signals from other devices to this machine.
 With power-off memory function.
