Makita HR1830F Parts Breakdown

Makita hr1830f rotary hammer: specifications
Hide thumbs Also See for HR1830F:
1
2
3

Advertisement

Quick Links

Download this manual See also: Instruction Manual

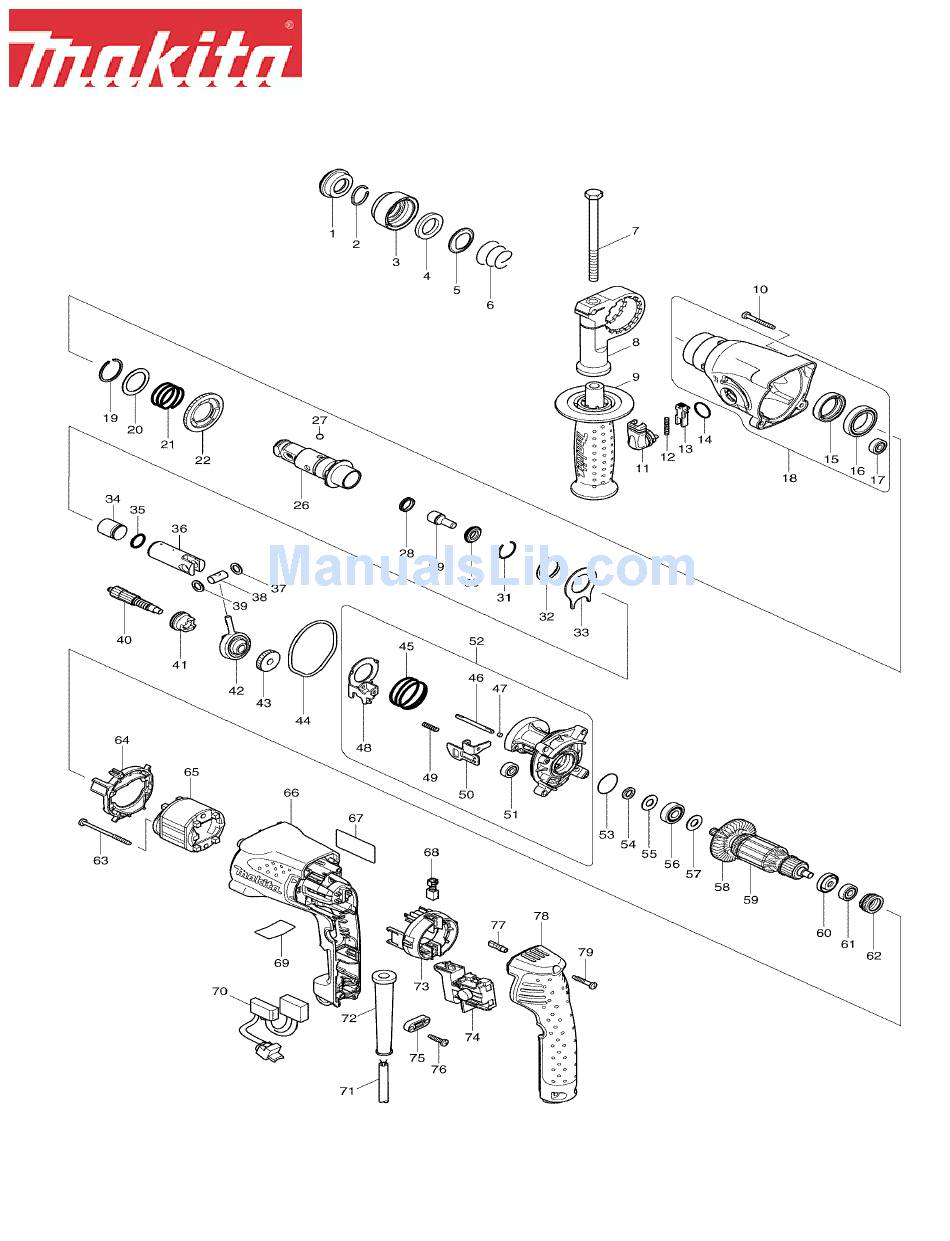

Parts Breakdown
HR1830F
Page 1 of 3
2/8/2008

Advertisement

loading

Related Manuals for Makita HR1830F

Summary of Contents for Makita HR1830F

  • Page 1 Parts Breakdown HR1830F Page 1 of 3 2/8/2008...
  • Page 2 CHANGE LEVER, HR1830F 12 233459-8 NG 3, HR1830F 13 419192-8 LOCK BUTTON, HR1830F 14 213278-8 O RING 17,HR2450F 15 213956-0 OIL SEAL 25, HR1830F 16 211375-4 BALL BEARING 6805LLB,6222DWE 17 211012-0 BALL BEARING 606ZZ, HR2410 18 154840-9 GEAR HOUSING CPL.,HR1830F 19 961135-1...
