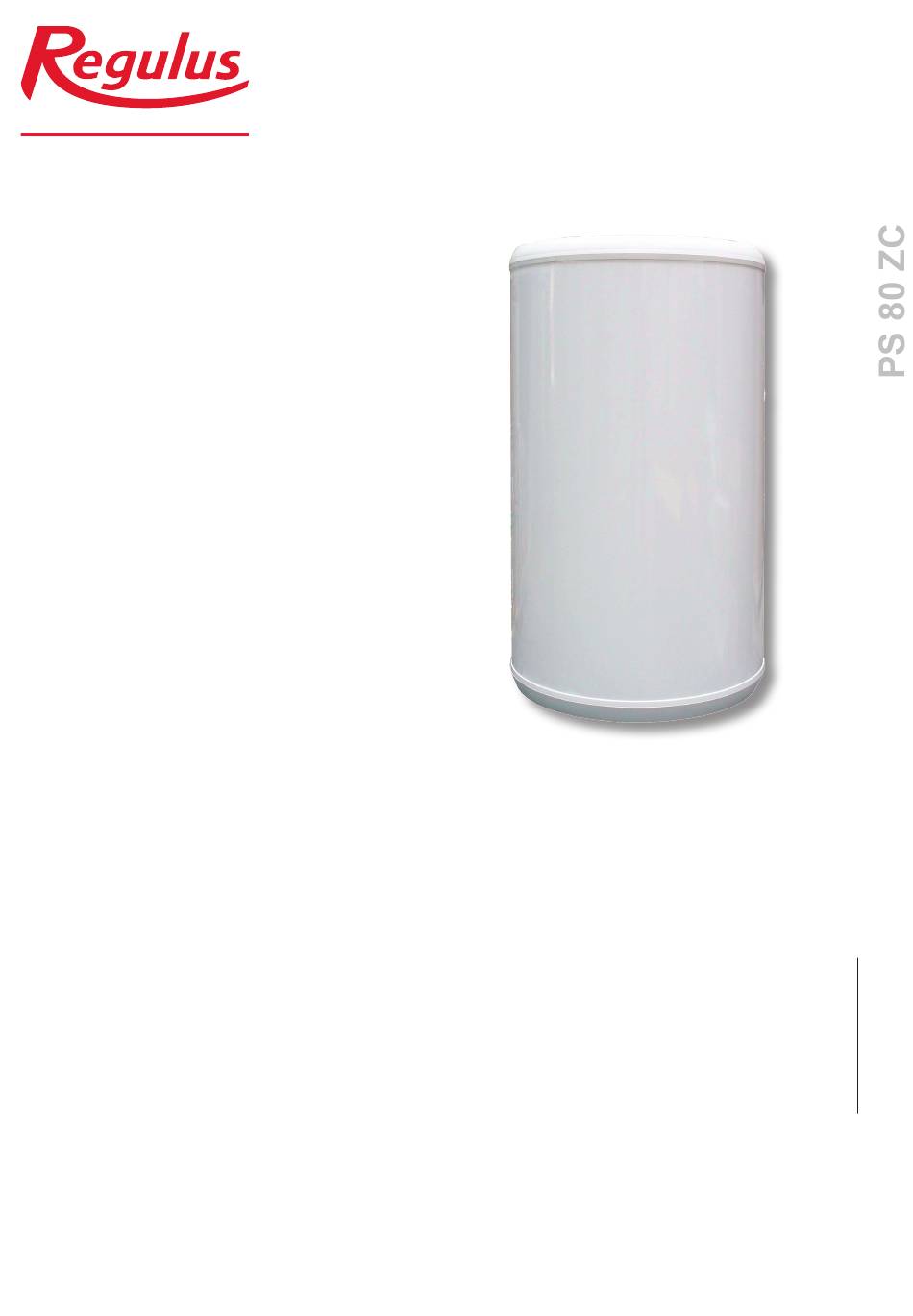

- Page 1 Installation and Operation Manual WALL-HUNG THERMAL STORE PS 80 ZC PS 80 ZC...
-
Page 2: Table Of Contents
CONTENTS 1 Description ............................1.1 Tank protection ........................1.2 Connection points on the tank ....................1.3 Packaging ..........................2 General Information .......................... 3 Technical Data and Dimensions ...................... 4 Operation ............................5 Example of Thermal Store Connections ..................6 Installation and Commissioning ...................... 6.1 Connection to sources of heat/cold.................. -
Page 3: Description
1 - Description PS 80 ZC Wall-hung thermal store is designed for storing and subsequent distribution of heat/cold. It is suitable as a buffer tank for inverter heat pumps to ensure sufficient water volume during evaporator defrosting. The tank has four G 1ʺ... -
Page 4: Technical Data And Dimensions
3 - Technical Data and Dimensions Technical Data Total tank volume 77 l Working temperature in tank 5–80 °C Max. pressure in tank 3 bar Tank diameter 400 mm Tank diameter with insulation 450 mm Tank overall height 865 mm Tank perimeter insulation thickness 25 mm Bottom insulation thickness... -
Page 5: Operation
4 - Operation The thermal store is suitable for storing and distribution of heat/cold and as a buffer tank for inverter heat pumps to ensure sufficient water volume during evaporator defrosting. 5 - Example of Thermal Store Connections │... -
Page 6: Installation And Commissioning
It is recommended to add protective anti-corrosion fluid into the heating system. The respective item codes can be found in the Catalogue or at www.regulus.eu. 6.1 - Connection to sources of heat/cold Hang the tank on the wall as close to the heat source as possible (the minimum hanging height of the tank from the floor when installing a 7.5 kW heater must be at least 650 mm). -
Page 7: Maintenance
7 - Maintenance If the tank is fitted with a heating element, disconnect it from the mains before cleaning. Clean the exterior of the tank with a soft cloth and a mild detergent. Never use abrasive cleaners or solvents. Check all connections for leaks. 8 - Disposal Packaging shall be disposed of in compliance with the valid rules. - Page 8 ©2022 We reserve the right to errors, changes and improvements without prior notice. REGULUS spol. s r.o. E-mail: sales@regulus.eu Web: www.regulus.eu...
