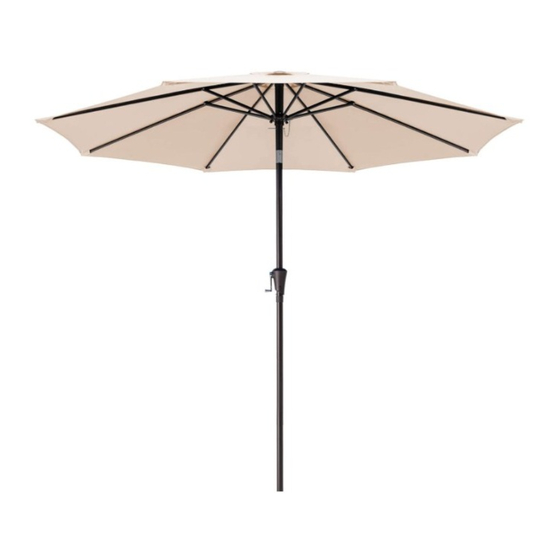

9ft Crank & Tilt Market Umbrella
w/ Sunbrella
Fabric
®
Assembly, Care & Use Manual
Item: M70633
UMB-70633
Model: UMB-M70633
IMPORTANT, RETAIN FOR FUTURE REFERENCE:
READ CAREFULLY
For assistance with assembly, parts, or customer service, please contact:
Toll Free: 1-855-880-7205 (English is offered)
8am - 5pm, Monday through Friday, Eastern Standard Time
DO NOT RETURN TO STORE
For outdoor domestic use only. Not for commercial use.
Designed in USA
Made in China
Advertisement
Table of Contents
Related Manuals for Atleisure UMB-M70633
Summary of Contents for Atleisure UMB-M70633

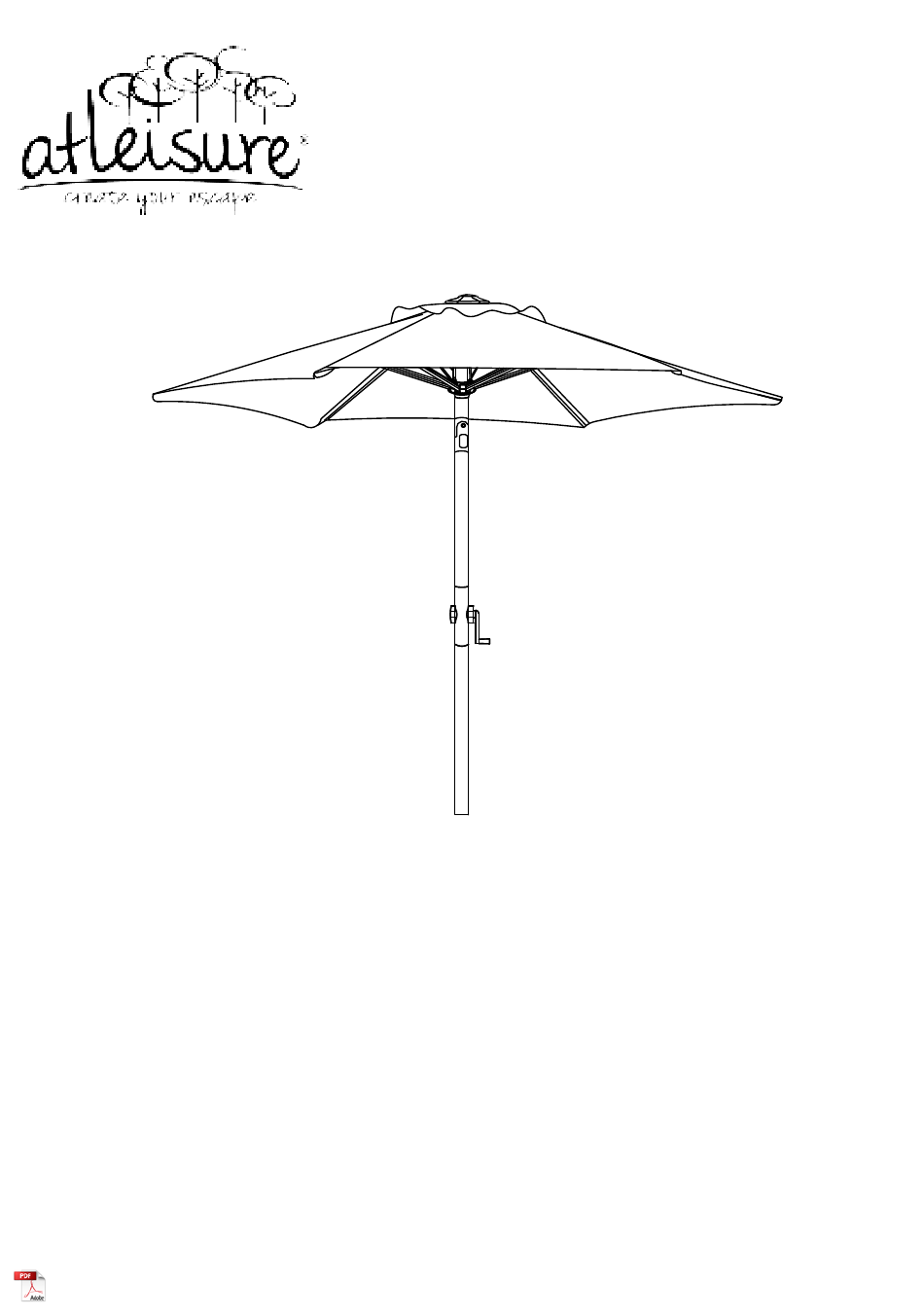

- Page 1 Fabric ® Assembly, Care & Use Manual Item: M70633 UMB-70633 Model: UMB-M70633 IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY For assistance with assembly, parts, or customer service, please contact: Toll Free: 1-855-880-7205 (English is offered) 8am - 5pm, Monday through Friday, Eastern Standard Time DO NOT RETURN TO STORE For outdoor domestic use only.
- Page 2 Contents Package Contents Preparation Assembly and Use Care and Maintenance Warning and Cautions Frame Warranty Sunbrella® Fabric Warranty Replacement Parts Package Contents Please lay out all parts prior to assembly to make sure all parts are present. Part Description Quantity Umbrella Frame with Canopy Finial Bottom Pole...
- Page 3 Assembly and Use Step 1: If not attached, align finial (B) to threading on top of umbrella frame (A) and turn clockwise (to right) to lock into place. Do not over-tighten. Clockwise Step 2: Attach bottom pole (C) to umbrella frame (A), then tighten in clockwise direction.
- Page 4 Assembly and Use Tilt Button Crank Handle Turn clockwise Step 3: Turn crank handle in clockwise direction (to right) until canopy is fully opened. Turn crank handle in opposite direction to close canopy and secure with attached strap. To close the umbrella, it must be in the upright position. You can tilt the umbrella to the right or left by pressing the tilt button to re- lease the umbrella top.
- Page 5 If you are within your warranty you must have your receipt and pictures of your information to send to ATLeisure at customerservice@atleisure.com, or send by mail to 1040 Boulevard SE Ste. B, Atlanta GA 30312. This warranty gives you specific legal...
- Page 6 Sunbrella. Replacement Parts For replacement parts, call our customer service department at: 1-855-880-7205, 8am - 5pm EST, Monday - Friday. Part Description Re-order Number CANOPY (INDIGO) UMB-M70633-CAN-IN CANOPY (CHERRY) UMB-M70633-CAN-CH CANOPY (MUSHROOM) UMB-M70633-CAN-MU FINIAL UMB-M70633-FNL BOTTOM POLE...
