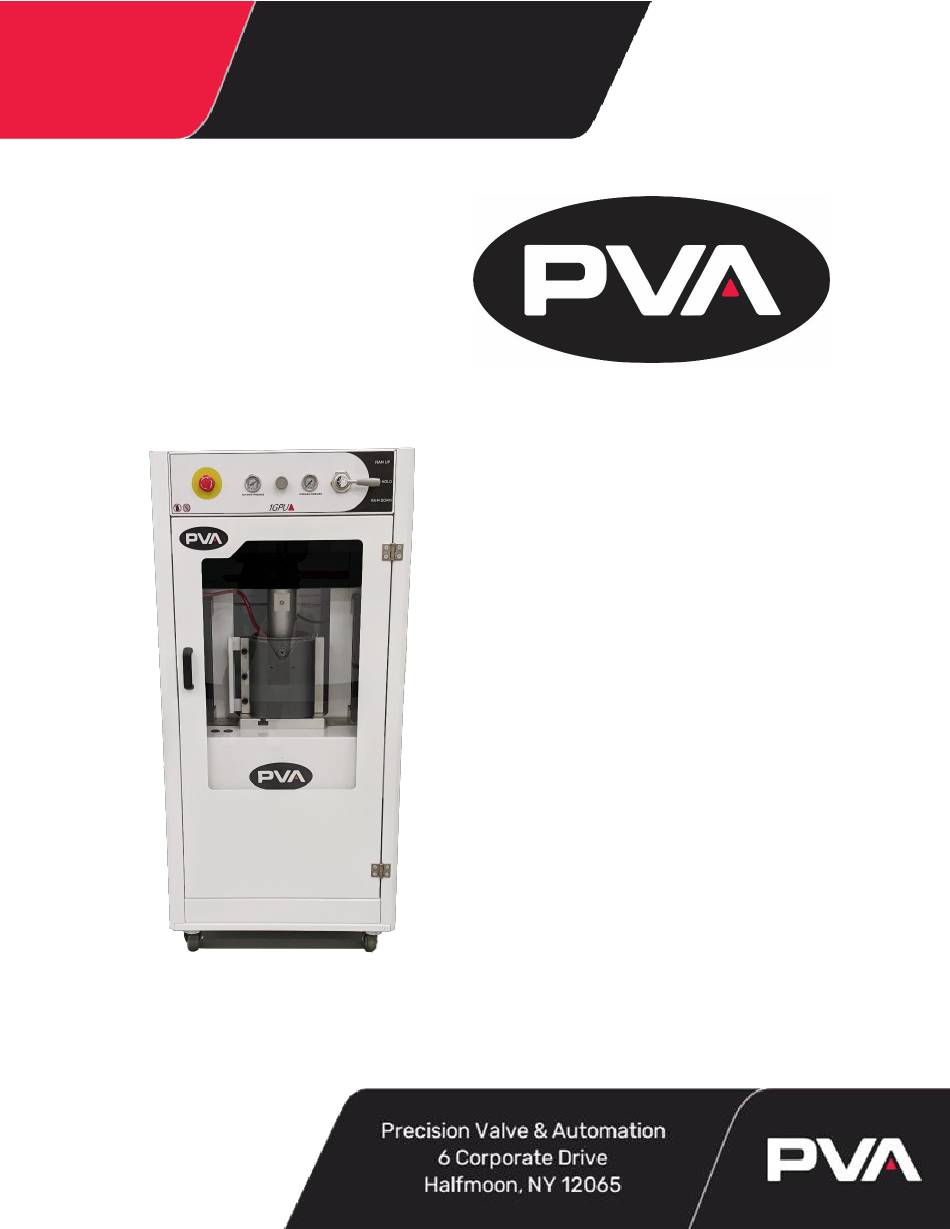

- Page 1 INNOVATION. PRECISION. EXCELLENCE. PVA-1GPU Owner’s Manual Revision E...
- Page 2 PVA-1GPU Manual This document is based on information available at the time of its publication. While efforts have been made to ensure the contents of this manual are accurate, the information contained herein does not purport to cover all specific details or variations in hardware, or to provide for every possible contingency in connection with installation, operation, or maintenance.
-
Page 3: Table Of Contents
PVA-1GPU Manual Table of Contents Introduction ......................5 PVA Contact Information ......................5 Document History ........................5 Safety ............................6 Theory of Operation ........................ 8 Personal Protective Equipment .................... 8 Waste Disposal .......................... 8 Pump Overview ...................... 9 Ram Overview .......................... 10 Machine Requirements .................. - Page 4 PVA-1GPU Manual Shutoff Options ........................29 Material Level Sensors ......................30 Recommended Spare Parts ................31 Technical Specifications ..................32 Troubleshooting ....................33 Table of Figures ....................34 Notes ........................35 Warranty ....................... 36 Page 4 of 36 Revision E October 2022...
-
Page 5: Introduction
Before you operate this system, read the operation and setup manual. This will help you to become familiar with the product and ensure successful operation. If any questions or problems arise, contact PVA’s Technical Support department. PVA Contact Information Main Office... -
Page 6: Safety
PVA-1GPU Manual Safety Certain warning symbols are affixed to the machine and correspond to notations in this manual. Before operating the system, identify these warning labels and read the notices described below. Not all labels may be used on any specific system. - Page 7 PVA-1GPU Manual Do not smoke near the machine. Always have a fire extinguisher available for emergency use. Before performing any repairs or maintenance to the system, turn off power and lock out the power disconnect switch. Warning notices are used to emphasize that hazardous voltages, current, temperatures, or other conditions that could cause personal injury exist in this equipment or may be associated with its use.
-
Page 8: Theory Of Operation
1-gallon steel pails. There are no internal moving parts to wear out or break down the integrity of the fillers. The PVA-1GPU uses normal, shop compressed air to operate and can be integrated with automation equipment. -
Page 9: Pump Overview
PVA-1GPU Manual Pump Overview Figure 1: Pump Overview Page 9 of 36 Revision E October 2022... -
Page 10: Ram Overview
PVA-1GPU Manual Ram Overview Figure 2: Ram Overview Figure 3: Ram Cross Section Page 10 of 36 Revision E October 2022... -
Page 11: Machine Requirements
PVA-1GPU Manual Machine Requirements Main Air Supply Supply the system with 70-100 psi of clean, dry air. It connects at the main air supply. Figure 4: Main Air Supply Page 11 of 36 Revision E October 2022... -
Page 12: Ram Controls
PVA-1GPU Manual Ram Controls Figure 5: Ram Control Panel Ram Up • Put the 3-position hand lever in the RAM UP position to raise the ram out of the pail. • The rate at which the ram moves up is controlled by the ram up pressure. -
Page 13: Ram Down
PVA-1GPU Manual Ram Down • Put the 3-position hand lever in the RAM DOWN position to lower the ram into the pail. • The rate at which the ram lowers is controlled by the ram down pressure. • Adjust the ram down pressure with the ram regulator (refer to Section 4.4). -
Page 14: Ram Regulator
PVA-1GPU Manual Ram Regulator The ram regulator controls the ram up and down pressure. To adjust the ram pressure: 1. Turn the Ram Regulator knob to the necessary pressure position as shown on the Ram Drive Pressure Gauge. 2. As you turn the Ram Regulator knob, the pressure will change slowly. Wait for the pressure to adjust. -
Page 15: Pump Operation
PVA-1GPU Manual Pump Operation How to Remove a Pail 1. Close the front and rear doors. Make sure they are latched. Figure 10: Door Latched 2. Put the 3-position hand lever in the RAM UP position. Figure 11: Ram Up... -
Page 16: Figure 12: Ram Drive Pressure 80 Psi
PVA-1GPU Manual 3. Turn the Ram Regulator knob to adjust the ram pressure to a maximum of 80 psi. Figure 12: Ram Drive Pressure 80 psi 4. Let the ram lift completely out of the pail clamp. The bottom of the ram should be about 1”... -
Page 17: Figure 14: Remove Screws From Pail Clamp
PVA-1GPU Manual 6. Open the front door. 7. Use the 3/8” T-handle hex key to remove the three machine screws from the pail clamp. Figure 14: Remove Screws from Pail Clamp 8. Open the pail clamp. Figure 15: Screws Removed, Pail Clamp Open 9. -
Page 18: How To Install A New Pail
PVA-1GPU Manual How to Install a New Pail Note: Clean and lubricate the ram seal between each pail change. Refer to Section 6.3 for the procedure. It is necessary to replace the ram seal periodically, spare seals should be kept on hand. Refer to Section 6.1 for the procedure. -
Page 19: Figure 17: Install The Screws
PVA-1GPU Manual 3. Close the front pail clamp. Turn the pail, if necessary, to make sure the pail is correctly installed on the base. 4. Put the three machine screws in the pail clamp again. Figure 17: Install the Screws 5. -
Page 20: How To Bleed Air From The Ram
PVA-1GPU Manual 8. Use the Ram Regulator knob to adjust ram down pressure and increase or decrease the rate that the ram lowers into the pail. Figure 19: Adjust Ram Down Pressure 9. Lower the ram until the ram seal starts to enter the top of the pail. Put the 3- position hand lever in the RAM HOLD position. -
Page 21: Normal Pump Operation
PVA-1GPU Manual 5. Use the Ram Regulator knob to adjust pressure as necessary. 6. Continue to lower the ram into the pail. The material will flow through the bleed port into the purge cup. Any break in the flow of the material shows there is air in the system. -
Page 22: System Shutdown Procedure
PVA-1GPU Manual System Shutdown Procedure Overnight Pump Shutdown 1. Put the 3-position hand lever in the RAM HOLD position. 2. Turn the main air shutoff to the “Off” position. Long-Term Pump Shutdown 1. Put the 3-postion hand lever in the RAM HOLD position. -
Page 23: Maintenance
PVA-1GPU Manual Maintenance 1. Inspect the hydraulic oil level in the reservoir on a weekly basis. If the level drops, inspect the machine for leaks and repair as necessary. Fill the reservoir with hydraulic oil, as specified. Figure 22: Hydraulic Oil Level 2. -
Page 24: How To Remove The Ram Seal
PVA-1GPU Manual How to Remove the Ram Seal 1. Put the 3-position handle in the RAM UP position. 2. Lift the ram up all the way. Figure 23: The Ram Lifted 3. Use a 4 mm hex key to loosen and remove the bleed valve assembly. You may have to hold the bleed valve assembly with an adjustable wrench while you loosen the top bolt. -
Page 25: Figure 25: Remove The Ram Bolts
PVA-1GPU Manual 5. Remove the bolts one at a time and hold the lower ram in place so it does not fall off. Figure 26: Remove the Ram Bolts 6. Pull the lower ram and the ram seal down off of the upper ram. -
Page 26: How To Install The Ram Seal
PVA-1GPU Manual How to Install the Ram Seal 1. Align the ram seal on the lower ram. Make sure all of the holes align. Figure 28: Ram Seal Installed on the Lower Ram 2. Put the ram seal and lower ram on the upper ram. Make sure all of the holes align. -
Page 27: Figure 31: Install Washer And Bolt
PVA-1GPU Manual 5. Install the bleed valve assembly into the ram. The round bottom of the bleed valve assembly will fit into the groove in the bottom of the lower ram. Figure 31: Install the Bleed Valve Assembly 6. Install the M5x6 bolt with a M5 fender washer into the bleed valve assembly. -
Page 28: How To Lubricate The Ram Seal
PVA-1GPU Manual How to Lubricate the Ram Seal 1. Apply mineral oil to the ram seal. 2. Rub the mineral oil into the ram seal with your hand, or with a clean lint-free towel. Figure 34: Rub the Mineral Oil into the Ram Seal... -
Page 29: Pump Options
The following options are available. Please contact PVA for more information. Shutoff Options The PVA-1GPU comes standard with a manual main air shutoff. However, an electric solenoid main air shutoff is available as an option. This allows a remote machine to control the main air supply to the pump. -
Page 30: Material Level Sensors
These sensors show a material “Low Level” and “Empty” condition. The sensors are available in both PNP and NPN types. The sensor type on the PVA-1GPU will depend on the control logic of the remote machine. The customer should specify the sensor type with the machine order. -
Page 31: Recommended Spare Parts
Table 1: Replacement Parts and Accessories Description Notes Part Number Ram Seal 214-12095 O-ring seal VLV-018V Hydraulic Oil, 1 gal 2158K12 Contact PVA for information on replacement parts or to order. Page 31 of 36 Revision E October 2022... -
Page 32: Technical Specifications
PVA-1GPU Manual Technical Specifications Maximum process pressure 1000 psi (67 bar) Maximum hydraulic (discharge) pressure 4000 psi (275 bar) Hydraulic: process material pressure ratio Fluid outlet size 1” NPT (F) Wetted Parts Seals- Viton, Buna-N Ram- Aluminum, stainless steel, carbon steel... -
Page 33: Troubleshooting
• Supply hose to dispense • Consult PVA for correct hose valve is sized too small sizing • Hydraulic pump is not holding consistent • Reference attached manual for... -
Page 34: Table Of Figures
PVA-1GPU Manual Table of Figures Figure 1: Pump Overview ......................... 9 Figure 2: Ram Overview ......................... 10 Figure 3: Ram Cross Section ........................ 10 Figure 4: Main Air Supply........................11 Figure 5: Ram Control Panel ......................... 12 Figure 6: Ram Up ............................. 12 Figure 7: Ram Down .......................... -
Page 35: Notes
PVA-1GPU Manual Notes Page 35 of 36 Revision E October 2022... -
Page 36: Warranty
Unauthorized repair or modification of the enclosed product, and/or the use of spare parts not directly obtained from PVA (or from factory authorized dealers) will void all warranties.
