InPOWER ETM51 Owner's Manual

Electronic throttle module for 2005+ ford gas & diesel engines
Hide thumbs Also See for ETM51:

Advertisement

Quick Links

Download this manual
2005+ Ford Gas & Diesel Engines
Supported Through
the 2019 Model
Year Only!
Introduction

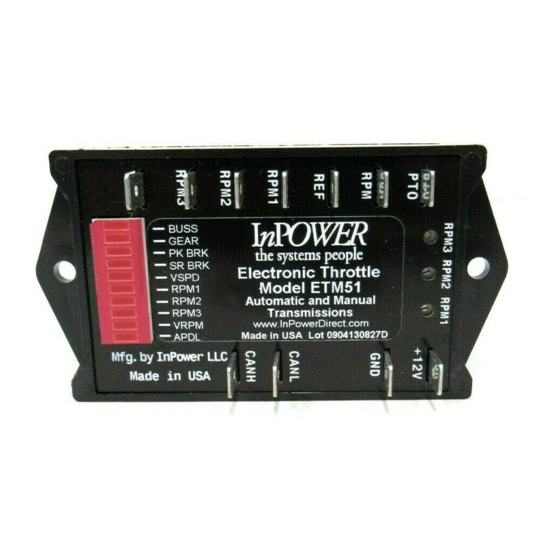

Model ETM51 Electronic Throttles are designed to support 2005+ Ford trucks and
vans equipped with the Ford Stationary Elevated Idle Control (SEIC) and one of the
following engines:
6.4 Liter Power Stroke Diesel
6.0 Liter Power Stroke Diesel
6.7 Liter Power Stroke Diesel
Modules come with four modes of fast idle control: Three user-adjustable preset
speeds and one variable input based on a remote variable resistor. The ETM51
installation requires customer-supplied control wiring to select the required mode of
operation and to connect to the Ford SEIC wiring. Ford provides blunt-cut wires, and
these may be connected to the ETM51 module via 0.25 inch Faston blade terminals
(may require extensions of the wires).
The ETM51 kit includes a three foot data cable with a 16-pin connector plug for the
OBDII data link connector (DLC) on one end and two faston terminals at the other.
The DLC is usually located at the lower part of the dash on the driver's side.
Operation
When the vehicle is parked and Chassis Ready Conditions are satisfied, the engine
idle speed may be controlled by selection of one of the four available modes: three
presets and one variable RPM. The preset RPM modes may be adjusted via three
calibration potentiometers on the top of the ETM51 unit.
Chassis Ready Conditions
1.
Parking brake is set
2.
Gear shift lever is in PARK (automatic only) or NEUTRAL (F750)
3.
Foot is off the service brake
4.
Foot is off accelerator pedal
5.
Vehicle is stationary
6.
Engine is started and idling below 900 RPM
7.
Coolant temperature >140°F (Gas), 120°F (Diesel)
8.
Transmission temperature 20°F to 240°F
© Copyright 2020 InPower LLC

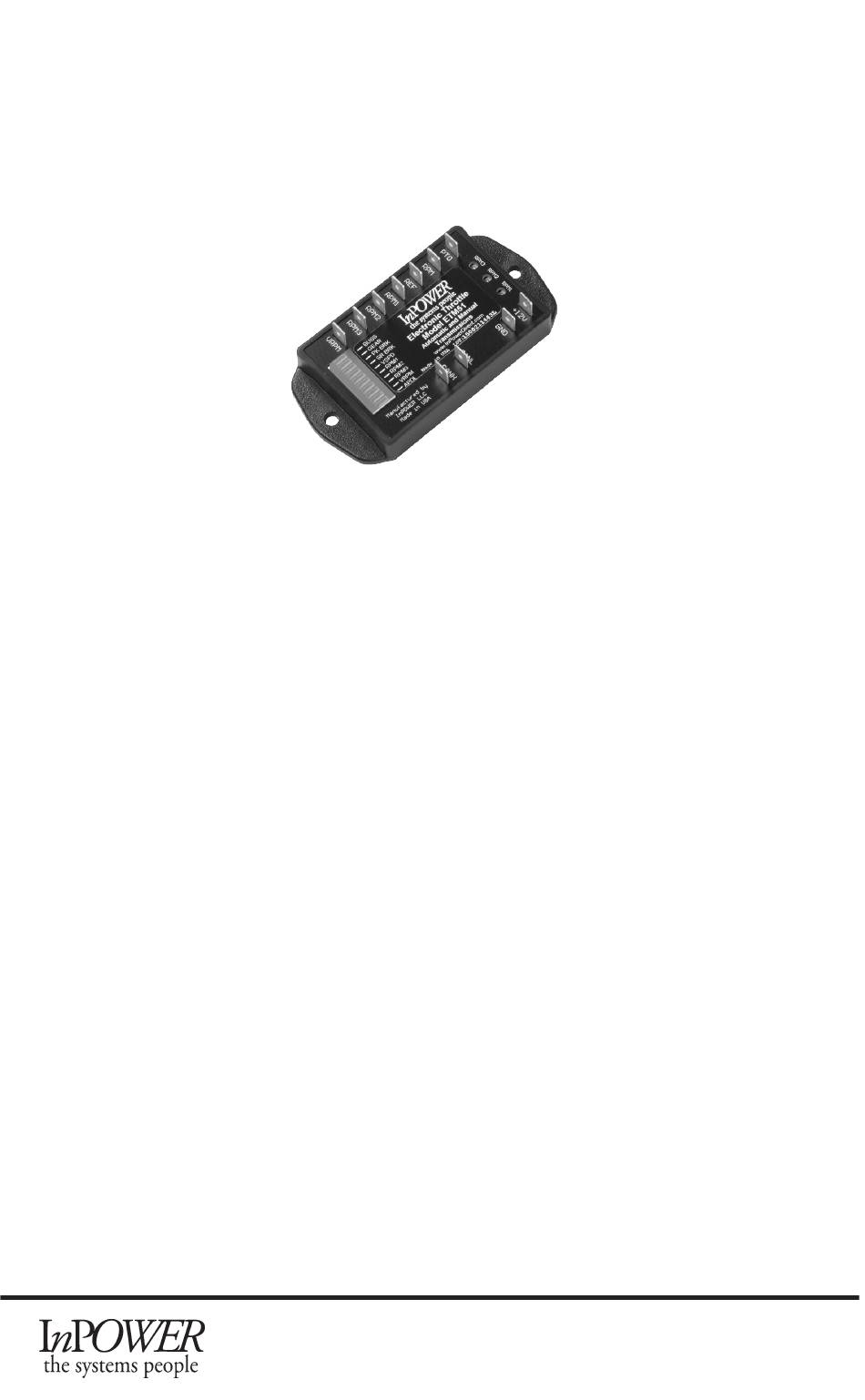

OWNERS MANUAL
Model ETM51
Electronic Throttle Module
Page 1 of 16
for
6.8 Liter Triton Gas
5.4 Liter Triton Gas
6.2 Liter Triton Gas
ETM51 Owner's Manual
Document: OM-54
Date: Oct 15, 2009
Version Code: L
Date: Jan 8, 2020

Advertisement

loading
Need help?

Need help?

Do you have a question about the ETM51 and is the answer not in the manual?

Questions and answers

Related Manuals for InPOWER ETM51

Summary of Contents for InPOWER ETM51

  • Page 1 ETM51 module via 0.25 inch Faston blade terminals (may require extensions of the wires). The ETM51 kit includes a three foot data cable with a 16-pin connector plug for the OBDII data link connector (DLC) on one end and two faston terminals at the other.

  • Page 2: Modes Of Operation

    Instead, the Ford SEIC must be manually reset by turning the Fast Idle switch off and then back on. With ETM51 revision H and later, software will auto restart diesel engine high idle whenever chassis ready conditions are correct.

  • Page 3: Installation

    Installation 1. Getting Started We recommend installing the ETM51 system under the dash due to the proximity of the wiring connections and cable length. The unit should not be located in the engine compartment or any other location that is not protected.
  • Page 4 2. Mounting Mount the ETM51 Module under the dash or on a flat surface using the two mounting holes. Ensure that you have sufficient distance to install the 36 inch DLC cable. 3. Installing the DLC Cable Connect the two Faston terminals on the DLC cable to the ETM51 module terminals (Yellow wire to CANH terminal and Green wire to CANL terminal).

  • Page 5: Mechanical Drawing

    RPM2 and RPM3) and adjust the three respective ten turn potentiometers on the ETM51 to the desired RPM. This will be 900 to 2250 RPM on gas engines and 1200 to 2300 RPM on the 2005-10 diesel engines, and 900 to 3000 RPM on the 2011+ diesel engines.
  • Page 6 (PTO_VREF) (PTOREF) (Diesel PTO REF) Orange/Yellow Green Green PTO_RPM Green (PTO RPM) (PTO_RPM) (PTO_RPM) (PTO_RPM) ETM51 Owner’s Manual Document: OM-54 Version Code: L Page 6 of 16 Date: Oct 15, 2009 Date: Jan 8, 2020 © Copyright 2020 InPower LLC...
  • Page 7 PTO REF Brown/White (PTO REF) Brown/White (PTO REF) PTO RPM Green (PTO RPM) Green (PTO RPM) ETM51 Owner’s Manual Document: OM-54 Version Code: L Page 7 of 16 Date: Oct 15, 2009 Date: Jan 8, 2020 © Copyright 2020 InPower LLC...
  • Page 8 Purple/Lt Blue (PTO) Yellow/Green (PTORS1) Orange/Red White/Brown PTO-VREF (PTO-VREF) (PTO_VREF) Orange/Yellow PTO_RPM Green (PTO_RPM) (PTO_RPM) ETM51 Owner’s Manual Document: OM-54 Version Code: L Page 8 of 16 Date: Oct 15, 2009 Date: Jan 8, 2020 © Copyright 2020 InPower LLC...
  • Page 9 (PTORS1/PTO_REQ) PTO_ENGAGE Orange/White Blue/Green Blue/Orange (PTO_Engage) (PTO_Engage) (PTORS2/PTO_EN) Orange/Yellow Green PTO_RPM Green (PTO_RPM) (PTO_RPM) (PTO_RPM) ETM51 Owner’s Manual Document: OM-54 Version Code: L Page 9 of 16 Date: Oct 15, 2009 Date: Jan 8, 2020 © Copyright 2020 InPower LLC...
  • Page 10 Yellow/Green (PTO 1) GAS PTO REF Yellow/Green (GAS PTO REF) PTO RPM Green (PTO RPM) ETM51 Owner’s Manual Document: OM-54 Version Code: L Page 10 of 16 Date: Oct 15, 2009 Date: Jan 8, 2020 © Copyright 2020 InPower LLC...
  • Page 11 F650 Gas Series Function F650 2012-2015 PTO_Request1 Yellow/Green (PTO_Request1) PTO_Engage Blue/Orange (PTO_Engage) PTO_RPM Green (PTO_RPM) ETM51 Owner’s Manual Document: OM-54 Version Code: L Page 11 of 16 Date: Oct 15, 2009 Date: Jan 8, 2020 © Copyright 2020 InPower LLC...
  • Page 12 2016 F650 & F750 PTO_Request1 Yellow/Green (PTO_Request1) PTO_Request2 Blue/Orange (PTO_Request2) PTO_VREF Yellow/Green (PTO_VREF) PTO_RPM Green (PTO_RPM) ETM51 Owner’s Manual Document: OM-54 Version Code: L Page 12 of 16 Date: Oct 15, 2009 Date: Jan 8, 2020 © Copyright 2020 InPower LLC...
  • Page 13 2017-2018 F650 & F750 PTO REQ1 Yellow/Blue (PTO REQ1) VREF_C Yellow/Green (VREF_C) PTO RPM Green (PTO RPM) ETM51 Owner’s Manual Document: OM-54 Version Code: L Page 13 of 16 Date: Oct 15, 2009 Date: Jan 8, 2020 © Copyright 2020 InPower LLC...
  • Page 14 PTO_Mode Orange (PTO_Mode) Yellow/Green (PTO_Request) PTO_Engage Orange/White (PTO_Engage) Blue/Green (PTO_Engage) PTO_RPM Orange/Yellow (PTO_RPM) Green (PTOIR) ETM51 Owner’s Manual Document: OM-54 Version Code: L Page 14 of 16 Date: Oct 15, 2009 Date: Jan 8, 2020 © Copyright 2020 InPower LLC...
  • Page 15 2016 + E350-450 PTO_Request Yellow/Green (PTO_Request) PTO_Engage Blue/Green (PTO_Engage) PTO_Vref Green/Violet (PTO_Vref) PTO_RPM Green (PTO_RPM) ETM51 Owner’s Manual Document: OM-54 Version Code: L Page 15 of 16 Date: Oct 15, 2009 Date: Jan 8, 2020 © Copyright 2020 InPower LLC...
  • Page 16 InPower, LLC 8311 Green Meadows Drive Lewis Center, OH 43035 (740) 548-0965 (740) 548-2302 www.InPowerLLC.com ETM51 Owner’s Manual Document: OM-54 Version Code: L Page 16 of 16 Date: Oct 15, 2009 Date: Jan 8, 2020 © Copyright 2020 InPower LLC...
