Harman JBL Professional CSS8018 Technical Manual

Technical Manual

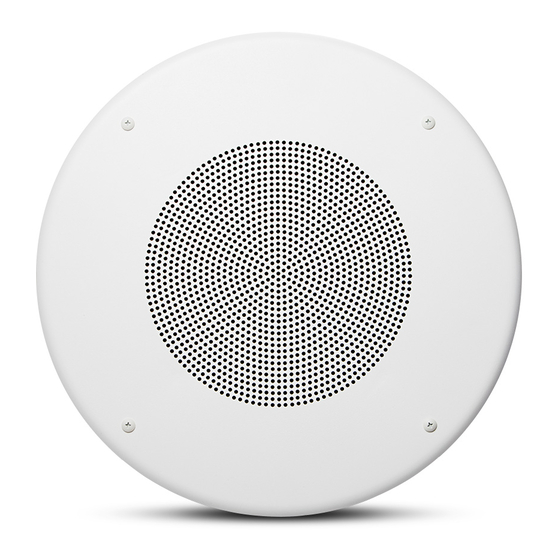

JBL CSS8018

SPECIFICATIONS

ACOUSTIC & ELECTRICAL SPECIFICATIONS:
• Nominal Impedance:
• Driver Power Handling:
• Frequency Range (- 10 dB):
Driver/Grille Assembly:
Installed in CSS-BB
BACKCAN:
• Driver Sensitivity (mid-range)
(1W [2.83V], 1m, 2k - 6k Hz):97 dB

SYSTEM COMPONENTS:

• Transducer:
• DC Resistance:
PACKAGE
Warranty Card
59660
Instruction Sheet
445673-001
Carton
445678-001
Inner Carton
445677-001
Inside Carton Wrap
Liner
455676-001
Main PE Bag
445674-001
Accessory Bag
445675-001
JBL Incorporated, 8500 Balboa Boulevard, P.O. Box 2200, Northridge, California 91329 U.S.A.
8 Ohms
20W
50 Hz - 17 kHz
90 Hz - 17 kHz
200 mm (8 in) speaker, 25 mm (1 in)
diameter voice coil with a Kapton™
coil-former
7.8 ohm

AURAL SWEEP TEST SPECIFICATIONS:

A. System Aural Sweep Test:

PHYSICAL SPECIFICATIONS:

• Net Weight (ea):

WARRANTY INFORMATION:

• Refer to Warranty Statement packed with each product.
• Transformer Taps:
Orange Green
25V 1.3W 2.5W
White Blue
70V 1.3W 2.5W
100V 2.5W 5W
COMPONENT EXPLODED VIEW
Nut (6)
445670-001
M4
Washer (4)
445669-001
M4 Non-Slip
Driver
444965-001
Screw (4)
882-31410-40
6 x 2 1/2
PH,WOOD,BLK ZINC
25V Input (2.5w Tap), 50 Hz to 18 kHz
3.5 lb (1.58 kg.)
Gray Yellow Black
5W 10W COM
Brown Orange Black
5W 10W COM
10W N/C COM
Screw (2)
882-31910-10
6 x 3/4
PH,WOOD,BLK ZINC
Transformer
444967-001
10W
Grille
444960-001
01-11
