Summary of Contents for Third Reality 3RTHS24BZ

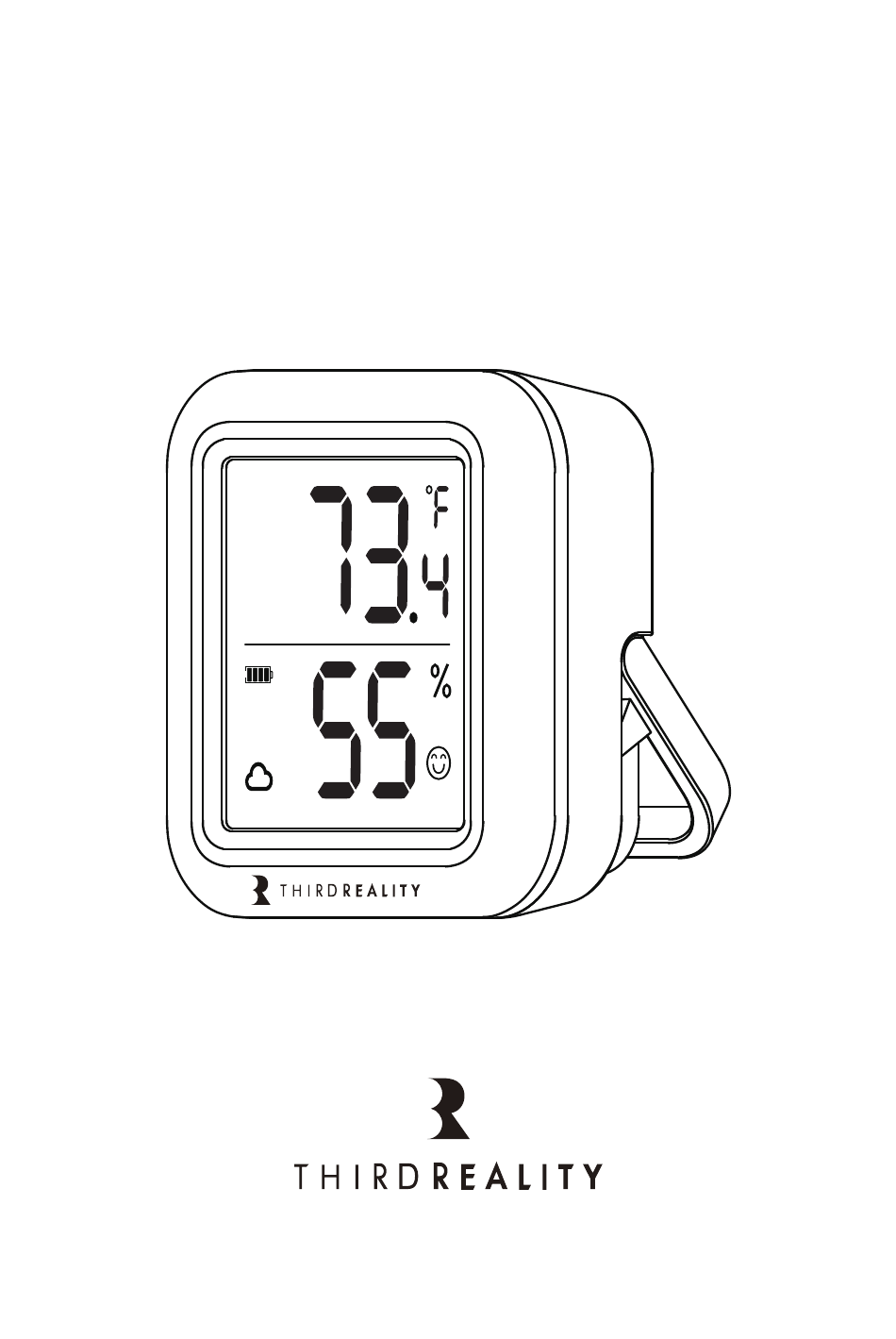

- Page 1 Temperature and Humidity Sensor User Manual...
-
Page 2: Table Of Contents
Index Product Overview Installation Side Button Setup Specifications Pairing with THIRDREALITY Pairing with Amazon Echo Pairing with SmartThings Pairing with Hubitat Pairing with Home Assistant FCC regulatory conformance RF Exposure Limited Warranty... -
Page 3: Product Overview
Product Overview Front View Protective Film Rear View Ventilation Holes Temperature and Humidity Sensor and Protective Film Model No.: 3RTHS24BZ FCC ID: 2AOCT-3RTHS24BZ ID: 28296-3RTHS24BZ Side Button Input: 3V Made In China Third Reality, Inc. Plastic Insulation Sheet AAA Battery × 2... -
Page 4: Installation
Installation Kickstand Side Button Press and hold the side button for 5 seconds and re- lease to put the sensor into pairing mode. 2） Press the side button to switch the temperature dis- play between Celsius and Fahrenheit. -
Page 5: Side Button
LCD screen indicates the sensor is in pairing mode. Temperature and Humidity Sensor REMOVE Model No.: 3RTHS24BZ BEFORE USE FCC ID: 2AOCT-3RTHS24BZ ID: 28296-3RTHS24BZ Input: 3V Made In China Third Reality, Inc. -
Page 6: Specifications
Specifications Name Temperature and Humidity Sensor Model 3RTHS24BZ LCD Screen 41.5mm × 38.0mm Dimensions 61.5mm × 61.5mm × 18mm Net Weight Operating Voltage DC 3V Battery Type AAA battery × 2 (included) Wireless Connectivity ZigBee 3.0 Working condition Indoor Use Only Temperature Range -10℃~50℃... -
Page 7: Pairing With Thirdreality
Pairing with Third Reality App: Third Reality App Hub: Third Reality Smart Hub Pair the Temperature and Humidity sensor with Third Reality Smart Hub. Pairing steps: Register and sign in your THIRDREALITY account, and add the THIRDREALITY hub. 2） Remove the kickstand on the back of the Temperature and... - Page 8 The sensor will be discovered within one minute as “Tem- perature and Humidity Sensor 1” , the temperature and humidity data will be displayed in the device list .
- Page 9 Tap the Temperature and Humidity Sensor icon to enter the device page, you can see information like the MAC ad- dress, battery level, software version and history records etc, you can also rename the Temperature and Humidity Sensor, and check for software updates.
-
Page 10: Pairing With Amazon Echo
Pairing with Amazon Echo App: Amazon Alexa App Pairing with Echo devices with built-in ZigBee hubs such As Echo V4, Echo Plus V1 and V2, Echo Studio, Echo Show 10, and Eero 6 and 6 pro. Pairing steps: Ask Alexa to check for updates before pairing. 2）... - Page 11 Tap device icon to enter the device page, tap the setting icon to enter the settings page, you can edit the name of the sensor; Or you can create routines with the sensor to control other connected devices.
-
Page 12: Pairing With Smartthings
Pairing with SmartThings App: SmartThings App Devices: SmartThings Hub 2nd Gen(2015) and 3rd Gen.(2018), Aeotec Smart Home Hub. Pairing steps: Before pairing, check for updates to make sure the Smart- Things Hub firmware is up to date. 2） Remove the kickstand on the back of the Temperature and Humidity Sensor carefully, open the battery cover on the back, remove the plastic insulation sheet and the sensor is powered on;... - Page 13 The Smart Button will be paired with the SmartThings hub in a few seconds. 5） Create routines to control connected devices.
-
Page 14: Pairing With Hubitat
Pairing with Hubitat Website: http://find.hubitat.com/ Pairing steps: Remove the kickstand on the back of the Temperature and Humidity Sensor carefully, open the battery cover on the back, remove the plastic insulation sheet and the sensor is powered on; Or press and hold the side button on the left side of the sensor for 5 seconds and release the hold;... - Page 15 Click Start ZigBee Pairing button after you select a ZigBee device type, the Start ZigBee Pairing button will put the hub in ZigBee pairing mode for 60 seconds. After pairing process is completed successfully, you can rename it if needed. 5）...
-
Page 16: Pairing With Home Assistant
Pairing with Home Assistant Pairing steps: Remove the kickstand on the back of the Temperature and Humidity Sensor carefully, open the battery cover on the back, remove the plastic insulation sheet and the sensor is powered on, the blinking cloud icon on the the LCD screen indicates the sensor is in pairing mode. - Page 17 After the pairing is completed successfully, it will show up in the page. Back to “Devices” page, then you can find the Tempera- ture and Humidity Sensor added. Click to enter in the control interface to set the Tempera- ture and Humidity Sensor. Click “+”...
-
Page 18: Faq
How to factory reset the Temperature and Humidity Sensor? Press and hold the side button on the left side of the sensor for 5 seconds and release the hold, the blinking cloud icon on the the LCD screen indicates the sensor is in pairing mode. -
Page 19: Fcc Regulatory Conformance
FCC regulatory conformance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, includ- ing interference that may cause undesired operation. For troubleshooting, warranty and safety information, visit www.3reality.com/devicesupport RF Exposure...
