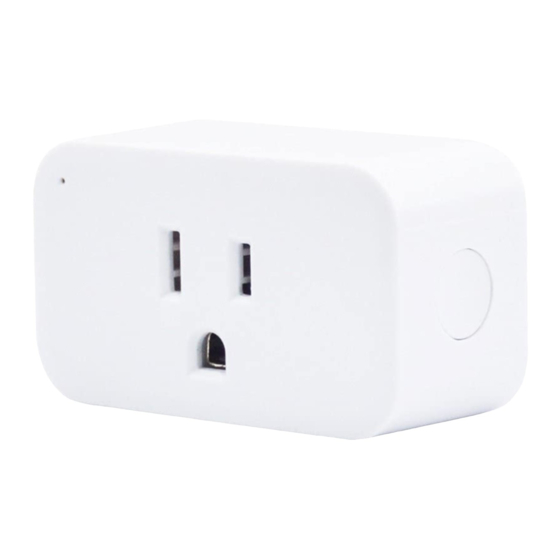

Third Reality 3RSP019BZ Manual
  1. Manuals
  2. Brands
  3. Third Reality Manuals
  4. Accessories
  5. 3RSP019BZ
  6. Manual

Third Reality 3RSP019BZ Manual

Ble / zigbee smart plug
Hide thumbs
Table of Contents

Advertisement

Quick Links

Smart Plug
BLE / ZIGBEE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3RSP019BZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Third Reality 3RSP019BZ

Summary of Contents for Third Reality 3RSP019BZ

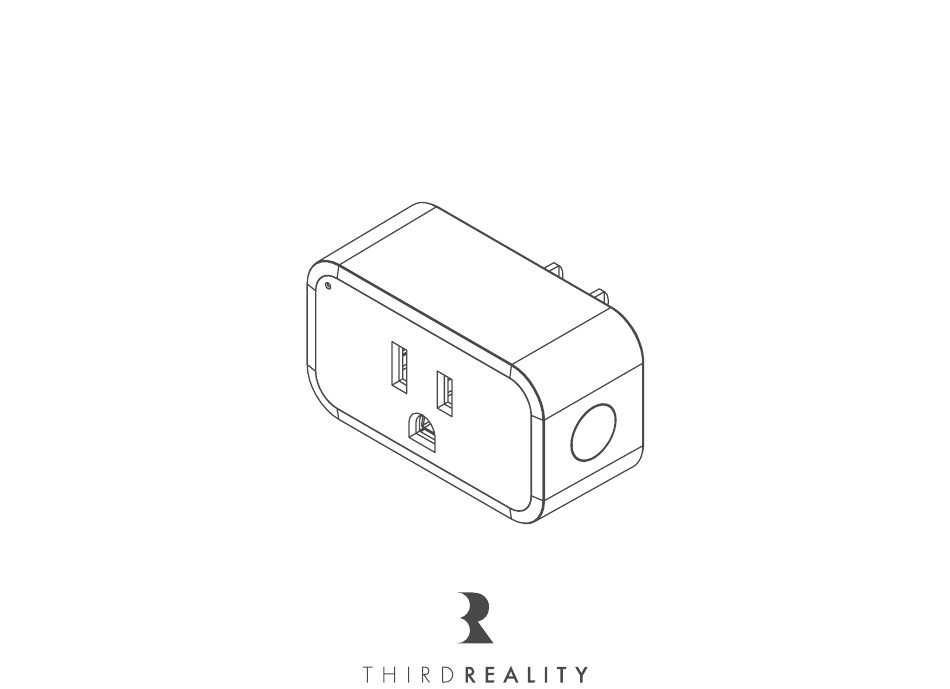

  • Page 1 Smart Plug BLE / ZIGBEE...

  • Page 2: Table Of Contents

    Content What’s in the box? Features Using under BLE (Bluetooth) mode Product configuration Setting up your Smart Plug Using your Smart Plug Trouble Shooting Switch Pairing Mode Using under Zigbee mode Product configuration Setting up your Smart Plug Using your Smart Plug Trouble Shooting FCC regulatory conformance RF Exposure...

  • Page 3: What's In The Box

    Smart Plug X 1 At the beginning The factory default mode of Third Reality Smart Plug is BLE (Bluetooth Low Energy). When pairing with Echo Devices (except Echo Gen1) under BLE mode, please directly go to page 4. If you want to pair with compatible Echo or Devices with ZigBee hub, please change the pairing mode from BLE to ZigBee first.

  • Page 4: Using Under Ble (Bluetooth) Mode

    Using under BLE (Bluetooth) mode Note: The factory default mode of Third Reality Smart Plug is BLE (Bluetooth Low Energy). You can directly pair Third Reality Smart Plug with the compatible Echo Devices (except Echo Gen1). Product configuration LED Light...

  • Page 5: Setting Up Your Smart Plug

    Factory Reset After your Smart Plug is powered on, press and hold the ON/OFF button for more than 10 seconds until the LED light flashes indicating that your Smart Plug is in pairing mode. (The mode won’t be changed while factory reset your Smart Plug.) Setting up your Smart Plug Compatible Devices List...
  • Page 6 Pair with compatible Echo Devices Select an outlet near your Echo Device. Insert Smart Plug into an outlet and then the LED light will alternately flash in green and red indicating that it is in BLE pairing mode now. Say “ Alexa, discover my devices ” to add the plug. Mesh Network Setup If you want to have multiple plugs setup for different rooms, especially rooms out of the range of the Echo De- vices Bluetooth signal range, you can utilize Mesh Network setup to extend the range.

  • Page 7: Using Your Smart Plug

    Using your Smart Plug Control the Smart Plug via voice command, says “ Alexa, turn on/off First Plug ”. Schedules or timers to turn the Smart Plug ON/OFF automatically. Create routines to enjoy your smart life, say “ Alexa, good morning ” to turn on the coffee maker, etc. Remote control the Smart Plug from your phone even if you are not at home.
  • Page 8 3. Fail to pair with Echo Make sure your Echo Speaker is compatible with Smart Plug (See the Compatible Devices List) and the Smart Plug is in the right mode. Please ensure your Echo Devices are setup before adding the Smart Plugs. Reboot the Echo speaker by unplugging the power and plugging it back in, then try to pair the Smart Plug with it again.
  • Page 9 Move Smart Plugs If you want to move the paired Plug from one echo to another, make sure you remove the Plug from the Alexa app and wait 30 minutes to allow cloud synchronization before repairing with different Echo device. Alexa's response If the Alexa devices finds the plug, setup is complete.

  • Page 10: Switch Pairing Mode

    Switch Pairing Mode ON/OFF Button Note: The factory default mode of Third Reality Smart Plug is BLE (Bluetooth Low Energy). BLE → ZigBee Press the button and hold, then insert the Smart Plug into an outlet for more than 10 seconds until the green light is ON.

  • Page 11: Using Under Zigbee Mode

    Using under Zigbee mode Note: The factory default mode of Third Reality Smart Plug is BLE (Bluetooth Low Energy). If you want to pair with compatible Echo or Devices with ZigBee hub, please go to Page 9 and change the pairing mode from BLE to ZigBee first.

  • Page 12: Setting Up Your Smart Plug

    You can try “ Alexa, is my software up to date? ” to trigger software update, then add the Smart Plugs. Note: The factory default mode of Third Reality Smart Plug is BLE (Bluetooth Low Energy). If you want to pair with compatible Echo or Devices with ZigBee hub, please change the pairing mode to ZigBee first.
  • Page 13 Note: Pairing mode will last for 3 minutes. If you haven’t pair it with other devices during this time, it will automatically exist the pairing. If you want the plug back to pairing mode, just simply unplug it from the outlet and then plug it in or factory reset it by pressing and holding the button for more than 10 seconds until the LED light flashes.

  • Page 14: Using Your Smart Plug

    Mesh Network Setup If you want to have multiple plugs setup for diff erent rooms, especially rooms out of the range of the Echo De- vices ZigBee signal range, you can utilize Mesh Network setup to extend the range. First, Setup the smart plugs close to the Echo Device. Unplug the plug and move it further away from the Echo Device And make sure it’s within ZigBee range of another active plug, which is connected on the network as a node.

  • Page 15: Trouble Shooting

    Trouble Shooting Factory reset the Smart Plug Power on the Smart Plug, and then press and hold the button for more than 10 seconds until the LED light flashes in red. Check the Smart Plug’s mode Insert the plug into an outlet and turn it on. Check the status of the LED light.
  • Page 16 Smart Plug is not responding Turn on/off the Smart Plug twice in the Alexa app to sync the plug. If not connects, please reboot the Echo speaker and factory reset the Smart Plug, then pair the Smart Plug with the Echo speaker. If still not work, please try to deregister the Echo speaker and register back in, then try to pair the Smart Plug with it.

  • Page 17: Fcc Regulatory Conformance

    FCC regulatory conformance： This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.

  • Page 18: Rf Exposure

    RF Exposure This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
