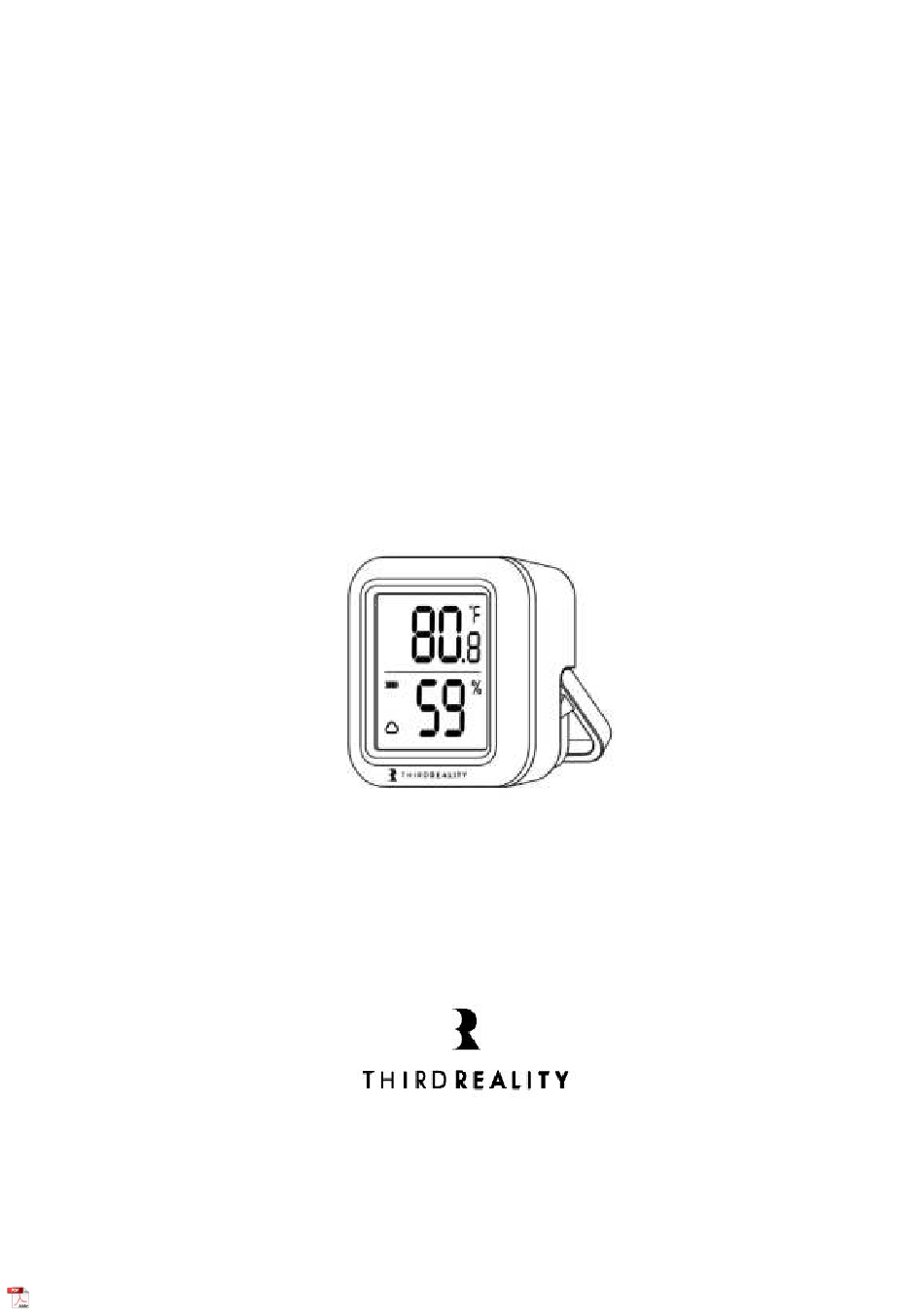

- Page 1 Temperature & Humidity Sensor User Manual...
- Page 2 Index Product Overview Installation Reset Button Specifications Setting up Pairing with THIRDREALITY Pairing with Amazon Echo Pairing with SmartThings Pairing with Hubitat 10. Pairing with Home Assistant...
- Page 3 1 Press and hold the reset button on the left side of the sensor for 10 seconds and release the hold. 2 Single press the reset button to switch the temperature display between Celsius and Fahrenheit . Specifications Name Temperature and Humidity Sensor Model 3RTHS24BZ LED Screen 48.5mm x 41.0 mm Dimensions 6.15cmx6.15cmx1.8cm Net Weight Operating Voltage DC 3V...
- Page 4 Pairing with THIRDREALITY Hub: Third Reality Smart Hub App: Third Reality App Pair the Temp & Humidity sensor with Third Reality Smart Hub. Pairing Register and sign in your THIRDREALITY account, and add the THIRDREALITY hub. Temp & Humidity Sensor...
- Page 5 The sensor will be discovered within one minute as “Temperature and Humidity Sensor 1” , the temperature and humidity data will be displayed in the device list . ⑤ Tap the Temp & Humidity Sensor icon to enter the device page, you can see information like the MAC address, battery level, software version and history records etc, you can also rename the Temp &...
- Page 6 Pairing with Amazon Echo App: Amazon Alexa App Devices: Echo devices with built-in ZigBee hubs such As Echo V4, Echo Plus V1 & V2, Echo Studio, Echo Show 10, and Eero 6 & 6 pro. ① Ask Alexa to check for updates before pairing. Temp &...
- Page 7 ④ Tap device icon to enter the device page, tap the setting icon to enter the settings page, you can edit the name of the sensor; Or you can create routines with the sensor to control other connected devices. Pairing with SmartThings App: SmartThings App Devices: SmartThings Hub 2nd Gen(2015) &...
- Page 8 press and hold the reset button on the left side of the sensor for 5 seconds and release the hold; The blinking cloud icon on the the LED screen indicates the sensor is in pairing mode. ③ Open the SmartThings App, tap “+” on the upper right corner to ”Add device” and then tap “Scan”...
- Page 9 ③ Click Start ZigBee Pairing button after you select a ZigBee device type, the Start ZigBee Pairing button will put the hub in ZigBee pairing mode for 60 seconds. ④ After pairing process is completed successfully, you can rename it if needed. ⑤...
- Page 10 Pairing steps： ① Remove the plastic stand of the Temp & Humidity Sensor carefully, on the back open the battery cover on the back, remove the plastic insulation sheet and the sensor is powered on, the blinking cloud icon on the the LED screen indicates the sensor is in pairing mode.
- Page 11 ④After the pairing is completed successfully, it will show up in the page. ⑤Back to “Devices” page, then you can find the Temp & Humidity Sensor added. ⑥Click to enter in the control interface to set the Temp & Humidity Sensor. ⑦Click “+”...
-
Page 12: Limited Warranty
Limited Warranty For limited warranty, please visit www.3reality.com/devicesupport For customer support, please contact us at info@3reality.com or visit www.3reality.com For help and troubleshooting related to Amazon Alexa, visit the Alexa app. FCC STATEM ENT: This device complies w it h part 15 of t he FCC Rules. Operat ion is subject t o t he follow ing t w o condit ions: (1) This device may not cause harmful int erference, and (2) t his device must accept any int erference received, including int erference t hat may cause undesired operat ion. - Page 13 INDUSTEY CANADA STATEM ENT(French): Cet appareil est conforme aux normes RSS exempt es de licence d'Indust rie Canada. Son fonct ionnement est soumis aux deux condit ions suivant es : (1) Cet appareil ne doit pas causer d'int erférences nuisibles et (2) cet appareil doit accept er t out e int erférence reçue, y compris les int erférences suscept ibles de provoquer un fonct ionnement indésirable de l'appareil.
