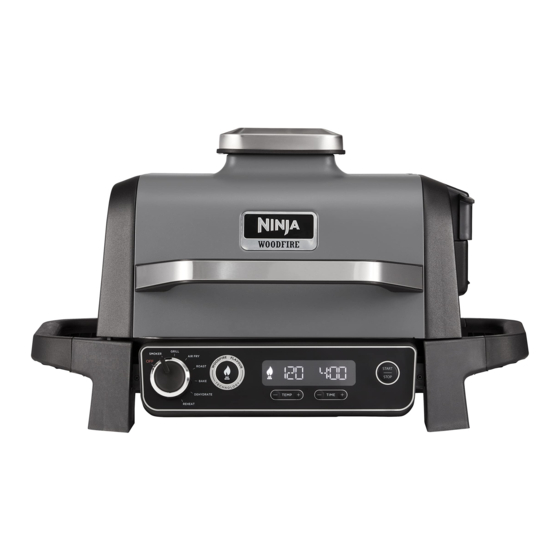

Woodfire electric bbq grill & smoker

Advertisement

THANK YOU
for purchasing this product
REGISTER YOUR PURCHASE
ninjakitchen.co.uk/registerguarantee
Scan QR code using mobile device
RECORD THIS INFORMATION
Model Number: ____________________
Serial Number: _____________________
Date of Purchase: ___________________
(Keep receipt)
Store of Purchase: __________________
TECHNICAL SPECIFICATIONS
Voltage:
220-240V~ 50-60Hz
Power:
2000-2400W
PRODUCT REGISTRATION:
Please visit ninjakitchen.co.uk or call 0800 862 0453 to register your new Ninja® product within
28 days of purchase. You will be asked to provide the store name, date of purchase and model
number along with your name and address.
The registration will enable us to contact you in the unlikely event of a product safety notification.
SharkNinja Europe Limited,
3150 Century Way,
Thorpe Park,
Leeds,
LS15 8ZB, UK
ninjakitchen.co.uk
Illustrations may differ from actual product. We are constantly striving to improve our products, therefore
the specifications contained herein are subject to change without notice.
NINJA is a registered trademark in the United Kingdom of SharkNinja Operating LLC.
NINJA WOODFIRE is a pending application in the United Kingdom of SharkNinja Operating LLC.
© 2022 SharkNinja Operating LLC
OG701UK_Series_IB_MP_221011_Mv1
SharkNinja Germany GmbH,
c/o Regus Management GmbH,
Excellent Business Center 10.+11. Stock,
Westhafenplatz 1,
60327 Frankfurt am Main, Germany
ninjakitchen.eu
ninjakitchen.co.uk
NINJA WOODFIRE
ELECTRIC BBQ GRILL & SMOKER
OG701UK | Instructions
OUTDOOR HOUSEHOLD USE ONLY. READ ALL INSTRUCTIONS BEFORE USE
Read and review instructions to understand operation and use of product.
Indicates the presence of a hazard that can cause personal injury, death or substantial
property damage if the warning included with this symbol is ignored.
Avoid contact with hot surface. Always use hand protection to avoid burns.
For outdoor use only.
Resistant to water splash from any direction.
IPX4
WARNING
Failure to follow these instructions could result in electric shock, fire or
burn hazard which could cause property damage, personal injury, or death. When using electrical
appliances, basic safety precautions should always be followed, including the following:
1
To eliminate a choking hazard for young children, discard all packaging materials immediately upon unpacking.
2
This appliance is for outdoor household use only. DO NOT use this appliance for anything other than its
intended use. DO NOT use in moving vehicles or boats. Misuse may cause injury.
3
DO NOT use indoors. This grill is designed for OUTDOOR USE ONLY in a well-ventilated area. If used under
any overhead cover, toxic fumes, including carbon monoxide, may accumulate and cause serious bodily injury
or death.
4
This appliance can be used by persons, including children, with reduced physical, sensory, or mental
capabilities or lack of experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards involved.
5
ALWAYS ensure the appliance is properly assembled before use. DO NOT use without side handles attached.
6
To avoid property damage from flame or heat maintain a minimum distance of 92cm (3 feet) from rear, sides
and top to walls, rails or other combustible constructions.
7
Ensure the surface is level, stable, clean and dry. DO NOT place the appliance near the edge of the surface the
grill is placed on during operation.
8
Children should be supervised to ensure that they do not play with the appliance. Keep the appliance and its
cord out of reach of children. DO NOT allow the appliance to be used near, cleaned or maintained by children.
9
The appliance should be supplied through a residual current device (RCD) having a rated residual operating
current not exceeding 30mA. The appliance is to be connected to a socket-outlet having an earthing contact.
10 A short power-supply cord is provided to reduce the risk of children less than 8 years grabbing the cord or
becoming entangled and to reduce the risk of people tripping over a longer cord. SUITABLE FOR USE WITH
OUTDOOR APPLIANCES. Longer detachable power-supply cord or extension cords are available and may be
used if care is exercised in their use.
11
To avoid property damage and burn injury from flame or heat, ALWAYS maintain a minimum safe distance of
at least 1 foot (30 cm) from the pellet box during smoking. Small flames can come out from the pellet box if
the grill lid is lifted in windy conditions.
12 To avoid burn injury, ALWAYS use pellet scoop when adding pellets to smoker box. DO NOT add pellets by
hand.
13 To avoid burn injury and property damage, make sure the lid of the smoke box is fully closed to prevent
flames from escaping out of the smoke box.
14 Pellets may continue to burn after cook time is complete. Do not touch or remove the smoke box until the grill
has stopped smoking, pellets have completely burnt out and the smoke box has cooled.
15 To avoid personal injury and burns allow to cool before cleaning, disassembly, putting in or taking off parts
and storage.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OG701UK and is the answer not in the manual?

Questions and answers

Summary of Contents for Ninja OG701UK

  • Page 1 Please visit ninjakitchen.co.uk or call 0800 862 0453 to register your new Ninja® product within ALWAYS ensure the appliance is properly assembled before use. DO NOT use without side handles attached.
  • Page 2 35 Socket voltages can vary, affecting the performance of your product. To prevent possible illness, ALWAYS use an external food thermometer to check that your food is cooked to the recommended temperatures. 36 Use ONLY genuine food grade wood pellets from Ninja in your unit. To order replacement or additional parts and accessories, visit ninjakitchen.co.uk 37 NEVER use heating fuel pellets, hardwood, charcoal, liquid fuels or any other combustible material in the Smoker.
  • Page 3 BEFORE FIRST USE - CONTINUED GETTING TO KNOW THE WOODFIRE ELECTRIC BBQ GRILL & SMOKER HANDLE INSTALLATION Ensure the correct handle is being used on the left and right side. (Refer to Fig. A and note that the AIR FRY handles have L and R stickers on the underside).
  • Page 4 If you plan to add Woodfire Flavour, lift the DO NOT overfill smoke box. Use only Ninja Woodfire Pellets for best results, performance and flavour. smoke box lid and using the pellet scoop, 5 Make sure the grill is plugged in and rotate the...
  • Page 5 COOKING FUNCTIONS - CONTINUED IMPORTANT: Review all important safety instructions before use. IMPORTANT: Review all important safety instructions before use. Roast Bake Dehydrate Reheat NOTE: The temperature is preset to 180°C. NOTE: The temperature is preset to 160°C. NOTE: The temperature is preset to 60°C. NOTE: The temperature is preset to 170°C.
  • Page 6 TROUBLESHOOTING GUIDE CLEANING YOUR WOODFIRE ELECTRIC BBQ GRILL & SMOKER The unit should be cleaned thoroughly after • Cleaning of the smoke box is not required. • When do I press the Woodfire Flavour technology button? Press the Woodfire Flavour technology button before pressing start when wanting to add smoke each use.
