Radiar AFD1
1 SLAVE DALI Fixture Controller
INSTALLATION AND QUICK START SHEET
WARNING AND GUIDELINES!!!
Read and follow all safety instructions!!
DO NOT INSTALL DAMAGED PRODUCT! This product has been properly packed so that
no parts should have been damaged during transit. Inspect to confirm. Any part
damaged or broken during or after assembly should be replaced.
WARNING : TURN THE POWER OFF AT THE CIRCUIT
BREAKER BEFORE WIRING
WARNING: Risk of Product Damage
Electrostatic Discharge (ESD): ESD can damage product(s). Personal grounding
equipment should be worn during all installation or servicing of the unit
Do not stretch or use cable sets that are too short or are of insufficient length
Do not modify the product
Do not mount near gas or electric heater
Do not change or alter internal wiring or installation circuitry
Do not use product for anything other than its intended use
WARNING - Risk of Electric Shock
Verify that supply voltage is correct by comparing it with the product
information
Make all electrical and grounded connections in accordance with the National
Electrical Code (NEC) and any applicable local code requirements
All wiring connections should be capped with UL approved recognized wire
connectors
All unused wiring must be capped
Product Overview

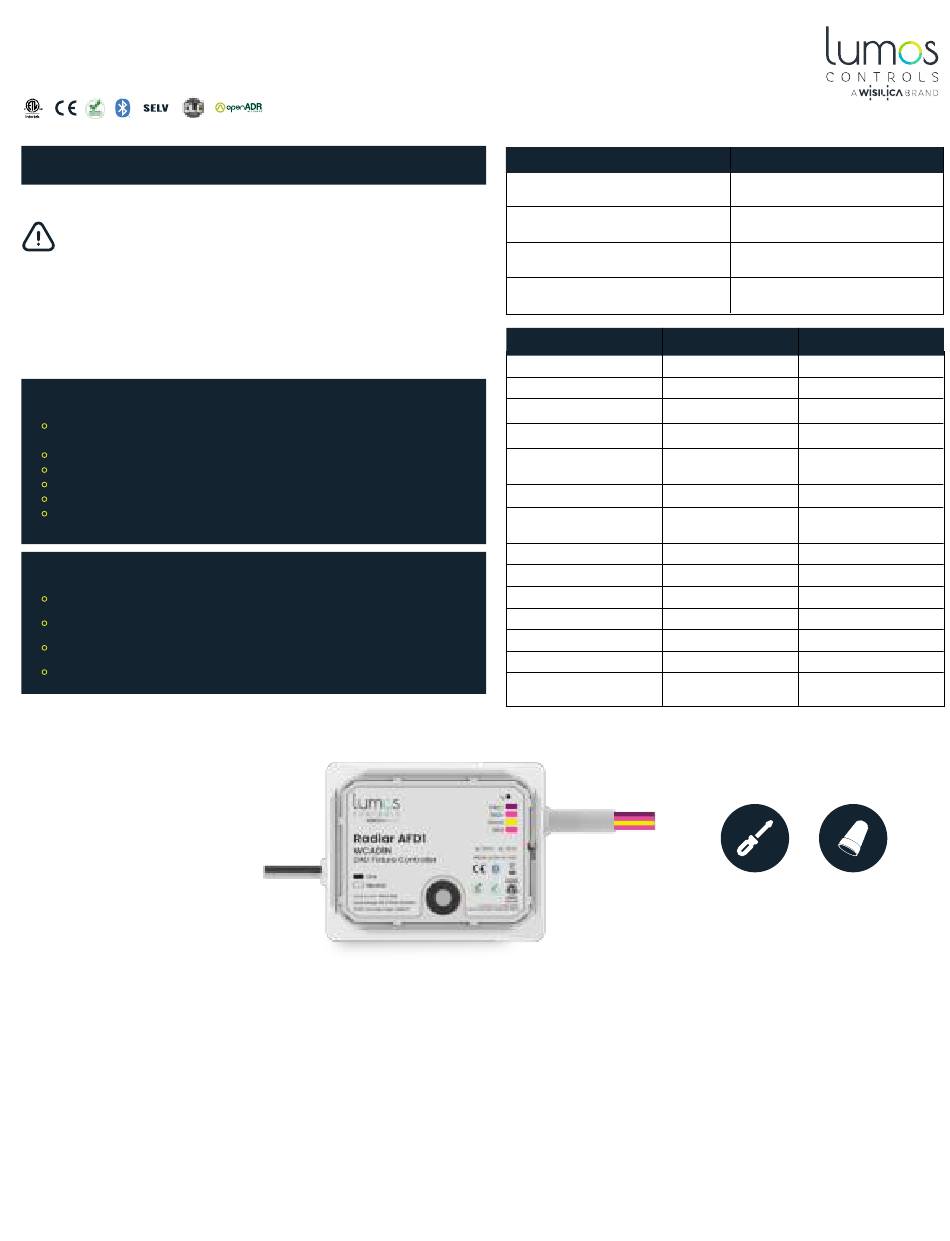

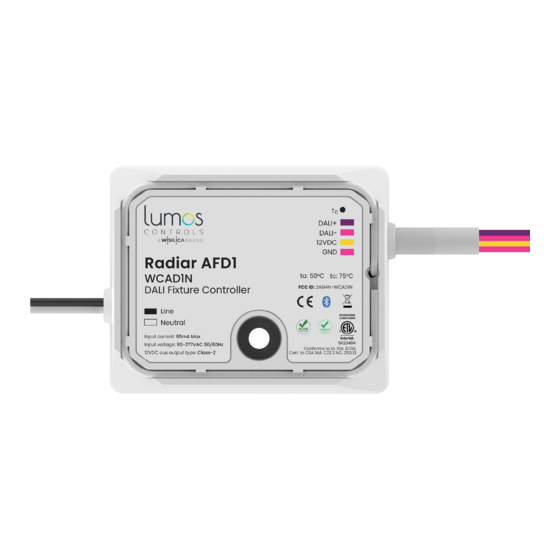

Radiar AFD1 is designed to control
AC-powered lighting fixtures supporting
Digitally Addressable Lighting Interface.
It provides ON/OFF or dimming/tunable
control for 1 LED driver
It is a part of Lumos Controls
ecosystem, which includes controllers,
sensors, switches, modules, drivers,
gateways, and analytical dashboards.
INSTALLATION INSTRUCTIONS
Installation Steps
1. Turn off the power before wiring and installing the device
2. The controller with a compact formfactor can be installed anywhere within the light fixtures, or within junction boxes. The screw hole available on the controller can be
used to fix it firmly.
3. To power the controller, connect the AC Line (Black) and Neutral (Wires) wires from the controller to the mains supply
4. To control the DALI driver, connect the DALI lines to the DALI+ (Purple color) and DALI- (Pink color) wires in the controller. *DALI is polarity insensitive
FCC ID: 2AG4N-WCAD1N
Do's
Installation should be performed by a
qualified electrician
Installation shall be in accordance with
all applicable local and NEC codes
Turn the power OFF at circuit breakers
before wiring
Observe the correct polarity of output
terminal
Value
Specifications
90-277VAC
Input Voltage
10mA
Input Current
2W
Power Consumption
Surge Transient Protection 4kV
Connection Distance
30m
(Device to Device by Mesh)
2400-2483MHz
Frequency Range
Tx Power 8dBm
Rx Sensitivity -92dBm
Bus Supply Voltage 11-13VDC
Bus Supply Current 2mA
100%
Dimming Range
Ambient Temperature
-20-50ºC
20-85%
Relative Humidity
1.7 x 1.4 x 0.8 In
Dimensions
43 x 35 x 20 mm
Don'ts
Don't use outdoors
Avoid input voltage exceeding
maximum rating
Don't disassemble the products
-
Remarks
Rated Input voltage
@ 230 V
Active Power
L-N, Bi wave
In an open office environment
(Line of Sight)
_
With 150mm external
wire antenna
_
_
_
_
_
_
L x W x H
Required tools &
supplies
Wire nuts
Screwdriver
