Summary of Contents for Milo Range v5 PRO System

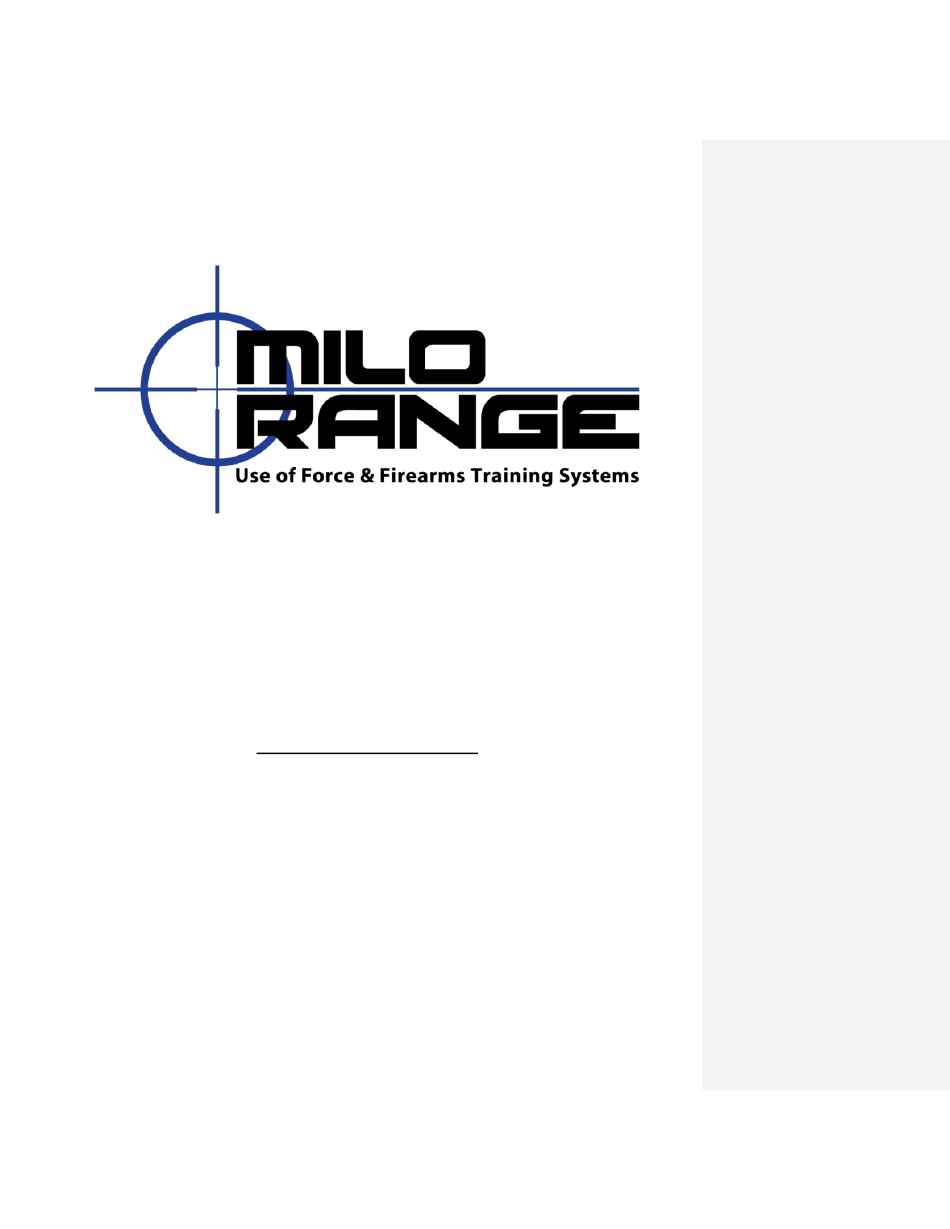

- Page 1 MILO Range v5 PRO System Setup Guide 24/7 Technical Support 1-800-344-1707 www.milorange.com...
- Page 2 TABLE OF CONTENTS Training Room Preparation 1. Turn off all non-fluorescent lights in the room. 2. Cover all windows to prevent sunlight from entering the room. Screen Setup 1. Assemble the projection screen and place it against a wall. Detailed instructions for screen setup are included with the screen.
-
Page 3: Projector Setup
Projector Setup NOTE: MILO Range Pro systems are generally mounted from the ceiling but also can be in a floor mounted configuration. Both configurations are covered in the following steps NOTE: If your system setup requires the addition of an Extron DTP DVI 330 TX and 330 Rx switch and control please reference the Extron Set Up Guide located in the Training &... - Page 4 Comment [JP2]: Replace with current photo DVI at COMPUTERFigure 2 – Back of Computer www.milorange.com...
- Page 5 Ceiling Mounted System 1. Using the instructions provided, affix mounting hardware to projector, and construct pole ensuring pole height with projector attached will not drop below the 9 foot recommended height of projector. 2. Install the replacement 2x2 ft. ceiling tile approximately 18 feet from the screen or surface to be projected on.
- Page 6 Formatted: PICTURE Figure 3 – 8-port Gigabit Switch 9. Above the ceiling, place a surge protector in close proximity to the installed MILO ceiling tile. a. Plug the surge protector into an available power source. It may be necessary to use an extension cord to facilitate this.
-
Page 7: Monitor Setup
4. Connect the 2 USB Dongles that control the keyboard and mouse. (Figure 1-74, Item 3s 3 and 5. Connect the monitor DVI cable. (Figure 1-74, Item 54) 6. Connect the HDMI cable. (Figure 1-74, Item 65) 7. Connect the speaker cables. (Figure 1-74, Item 76) Plug computer power cable into surge protector Formatted: PICTURE Figure 4 –... - Page 8 www.milorange.com...
- Page 9 Formatted: Normal, Centered www.milorange.com...
- Page 10 Formatted: Centered www.milorange.com...
-
Page 11: Camera Setup
Camera Setup NOTE: MILO Range Pro systems are generally mounted from the ceiling but also can be in a floor mounted configuration. Steps 1-?????? Cover the floor mounted configuration. For ceiling mounted systems, skip to step ?????The following steps will cover both configurations. - Page 12 Formatted: PICTURE Figure 6 – Hit Detect Filter and Lens Figure 7 – Flashlight Filter and Lens Attach the lenses and colored IR filter rings to the cameras. (Figure 8, Item 1) Formatted: NOTE Note that the hit detect cameras is on the right (when looking at the box from the front) and the flashlight camera is on the left.
- Page 13 Figure 8 – Camera Box without lenses Figure 9 – Camera Box with lenses www.milorange.com...
- Page 14 Formatted: Font: Bold Formatted: Left 3.4. Connect the network cable to the camera box “System” port. (Figure 10, Item 1) Now, run the cable to the location where the computer will sit. Make sure the cable does not interfere with the area where the trainees will walk or stand during training.
- Page 15 Figure 10 – Camera Box Rear Formatted: PICTURE CAPTION Ceiling Mount System 1. Attach the Filter Rings (Figure 11, Item 1) to the Camera Lenses (Figure 11, Item 2). Formatted: LIST FOR MANUALS, Numbered + Level: 1 + Numbering Style: 1, 2, 3, … + Start 2.
- Page 16 4. Connect the network cables (6 ft. cables) to the camera network ports (Figure 12, Item 1) Figure 12 – Rear of Camera Tree Formatted: PICTURE CAPTION www.milorange.com...
- Page 17 Speaker Control Console Connection 7. Please reference the MILO Range 5.1 Speaker Set Up and Realtek HD Audio Manager Settings Guide that is in the Training & Support folder located either on your MILO Range desktop or C/MILO/Training & Support/User Guides.
- Page 18 TAC recording NOTE: MILO Range Pro systems are generally mounted from the ceiling but also can be in a floor mounted configuration. TAC camera setup differs for each type of configuration. Both will be...
- Page 19 2. Loosen the ball joint on the clamp, aim the TAC camera at the area where the trainee will be during training then tighten the ball joint to secure the camera’s position. 3. Connect the power supply to the TAC camera and to an AC power outlet. 4.3.
- Page 20 Formatted: PICTURE Figure 14 – Rear of Camera Box Ceiling Mounted System 1. Mount the TAC camera to the included clamp system (Figure 16), and secure the clamp to the frame of the projection screen. TAC camera can also be mounted to the wall using the provided mounting hardware 2.
- Page 21 2. Press the power button on the front of the MILO computer (Figure 16, Item 1). After about 1 minute, Windows will finish loading. You should see a MILO Range logo on the instructor screen and projected screens. Formatted: PICTURE, Left...
- Page 22 Open MILO Range PRO Software 1. Double-Click on the MILO Range icon from the Windows desktop. System Camera Setup & Calibration Refer to the following video tutorial for Hit Detect and Flashlight to setup to perform the MILO Hit Detection & Calibration process. It is strongly recommended to perform system calibration every time you power on the system for use.
