Operation manual

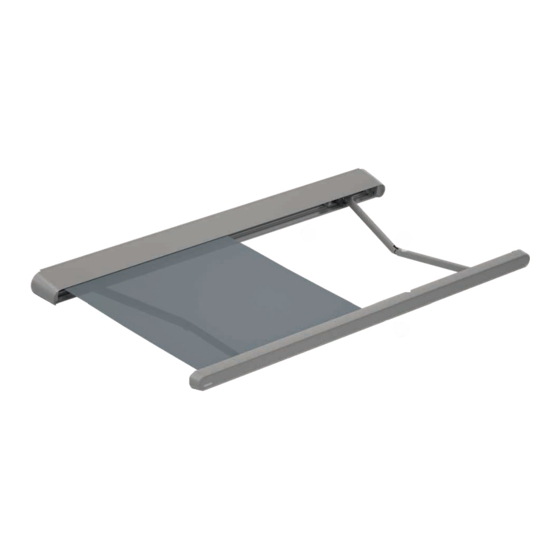

markilux MX-1 compact
1
3
1
Face fixture
4
LED-Spots in the front profile 1)
7
LED-Spots underneath the cassette1)
1) Optional configuration
11-11-2022
7062209
9
2
drop valance, during extension
5
LED-Line in the front profile
bionic tendon and hidden cable con-
8
duits in the arms
7
8
5
4
6
2
Arm bearing with tilt-lock mechanism,
3
1)
integrated windlock mechanism
LED ambient lighting
6
1)
in the front profile 1)
Hidden gutter with
9
water drainage holes to the side
