Summary of Contents for Cassese CS 999

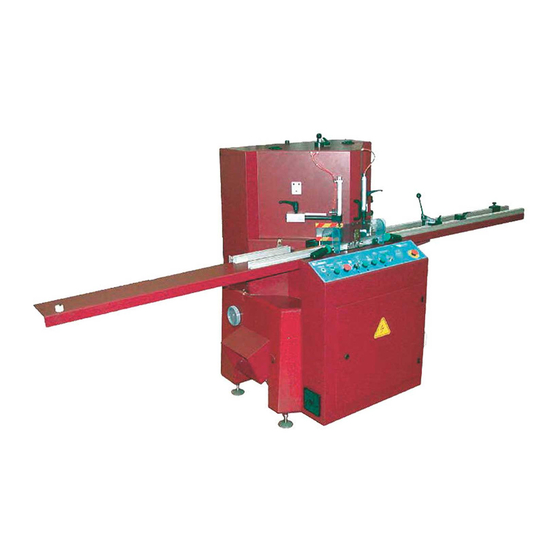

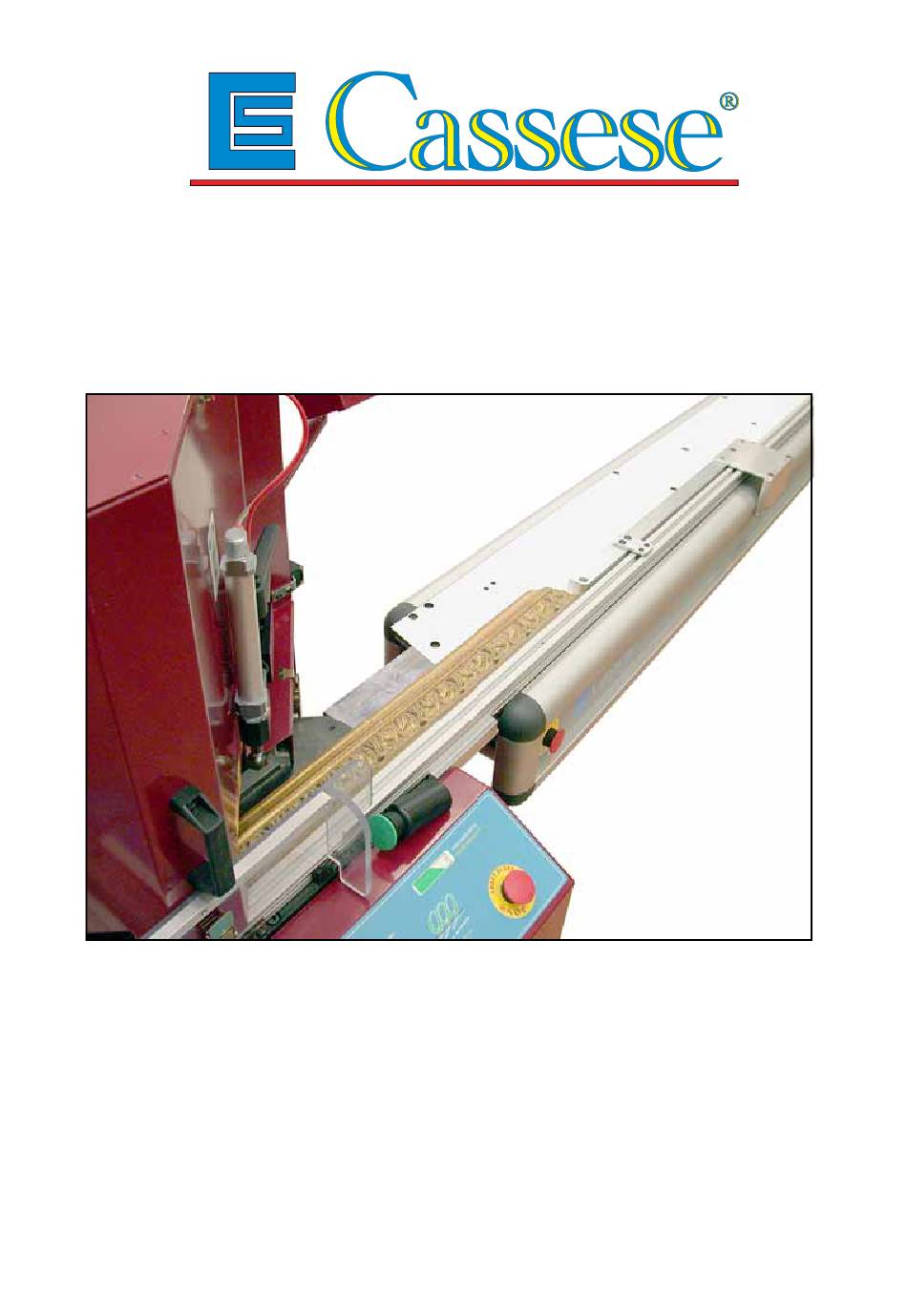

- Page 1 Z15010 CS 999 QUICK / SMART STOP Technical and User Manual 04/ 2006 Cassese / Communication...
- Page 2 USING THE 999 QUICK/SMART STOP : - THE TOUCH SCREEN - SMART STOP: REBATE BOTTOM THICKNESS MEASURER - CREATING / MODIFYING / DELETING A FILE EXECUTING A FILE STANDARD SIZES MENU MAINTENANCE PARAMETERS SPARE PARTS LISTS & DRAWINGS Cassese / Communication 11/ 2001...
-
Page 3: Technical Data
MOULDING CUTTING PLANE Moulding width maxi 83 inter 1994 with moulding 83 with moulding 83 MOULDING CUTTING PLANE PROGRAM OF QUICK / SMART STOP CS 999 CHOICE OF LANGUAGE START UP SCREEN STANDARD PLAY STOP OFFSET LOCK EXT. DIMENSION MAINTENANCE... - Page 4 3 and 4. ASSEMBLY OF THE NUMERIC STOP (NS) The NS can only be assembled after the CS 999 has been made level on the ground. The right-hand extension and its support bracket have been dismantled and the 2 frame fastening screws are used.
- Page 5 Fig 2 Lining up the stops: Pass the thread under the head of the NS against the inner face of the guide GB. Put in one screw and two nuts at one end of the thread (looped) and hook to the left tip of the left extension stop. Repeat for the other end of the thread.
- Page 6 Mise à niveau: With a 19mm open-end wrench, adjust the NS levels in relation to the machine table by screwing and unscrewing nut EH of the NS feet. Check the levels with a ruler. After adjusting level alignment, tighten the nuts of bracket E permanently (10mm tubular socket wrench + 5mm hex head key).
- Page 7 USING THE 999 QUICK/SMART STOP The operation of the stop has almost no effect on saw operation. The only signals exchanged are: - Disabling stop movement if the blades are moving forward. - Rebate bottom measurement pushbutton (Smart Stop). - Rebate bottom measurement coder value (Smart Stop). The 999 Quick Stop/Smart Stop can store 800 files comprising: - An 8-digit reference.
- Page 8 SMART STOP: REBATE BOTTOM THICKNESS MEASURER Switch the machine on by setting the main switch to ON. (see page 4) If you are using the SMART STOP, the following warning message appears if the measurer button (MP) is pressed: -> In this case, you will need to remove any moulding and let the measurer position itself against the fixed rule G.
-
Page 9: External Dimension
CREATING / MODIFYING / DELETING A FILE Starting from the main menu, press the FILES menu. The files sub-menu appears. - Create - Modify - Erase - Free memory: xxx/800 All the submenus of CREATE/MODIFY/DELETE contain a FILE LIST key which will provide a list of files already saved. -
Page 10: Executing A File
Once the values have been entered, you can use the OK key to validate the file or choose not to validate it and return to the file menu using the RET key. Likewise, from the file menu screen, you can modify an existing file, delete a file or view the file list. -
Page 11: Standard Sizes
STANDARD SIZES: The 999 Quick Stop/Smart Stop can also store 80 standard frames identified only by their length and width dimensions. The standard frame menu is accessed either via the Main menu or via the Execution menu. There are 5 pages of 16 standard sizes. All the dimensions can be reprogrammed using the numeric keypad.
